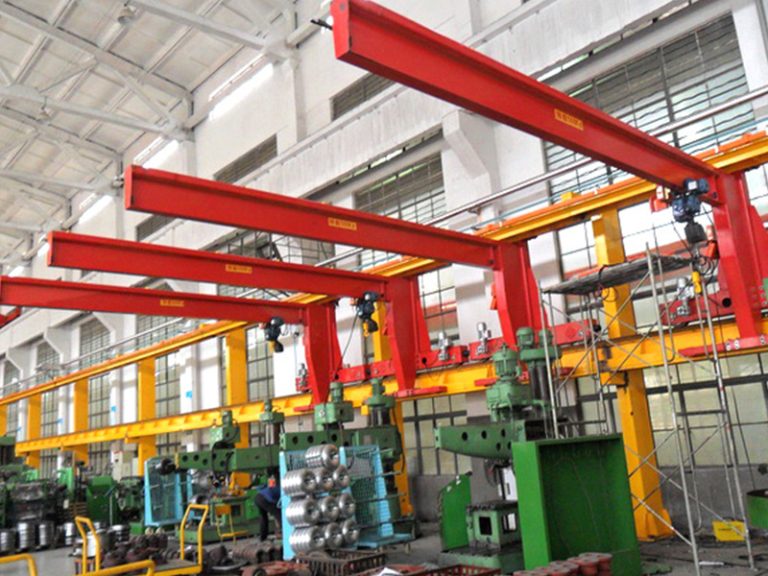

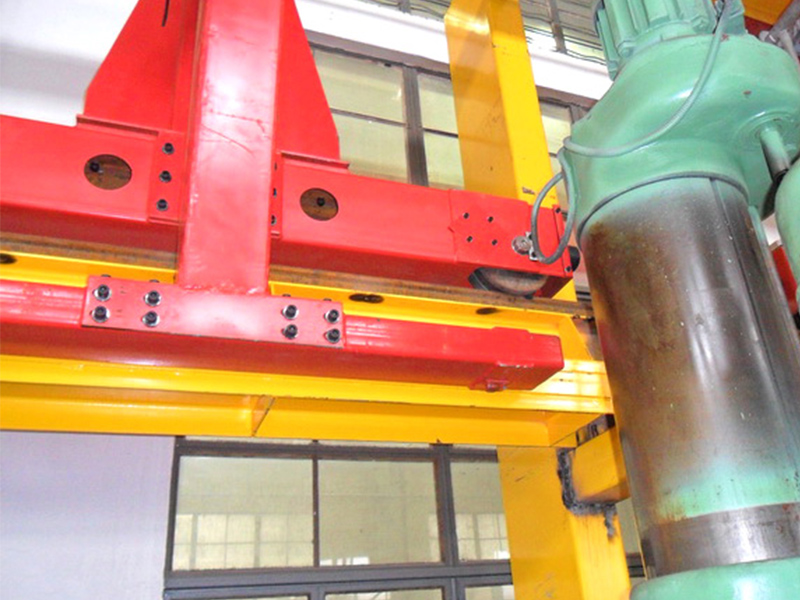

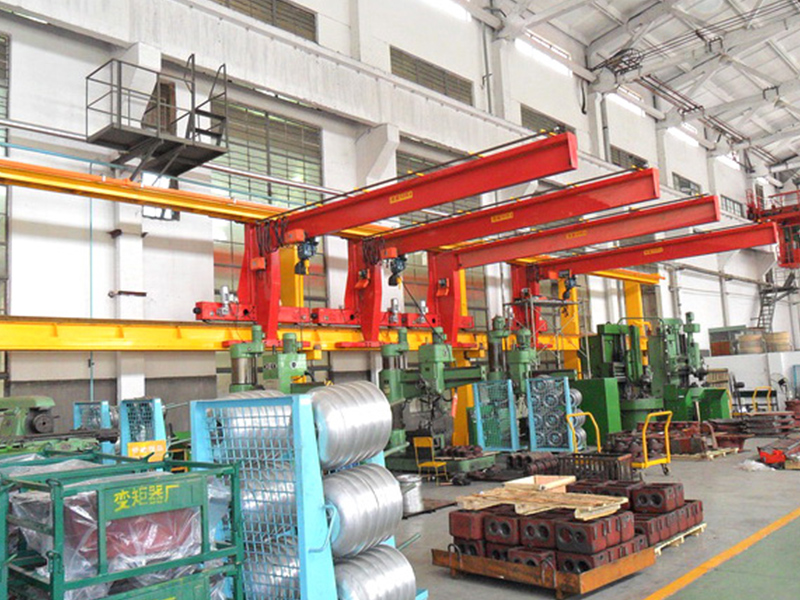

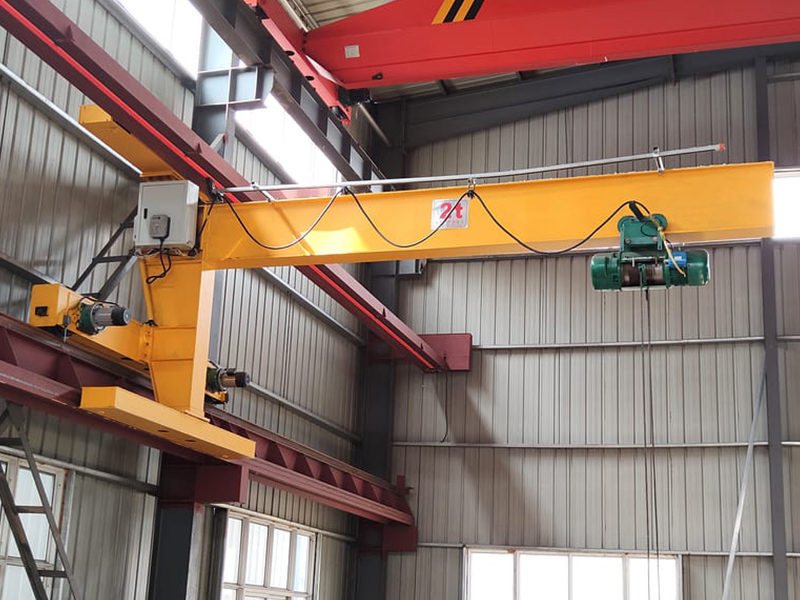

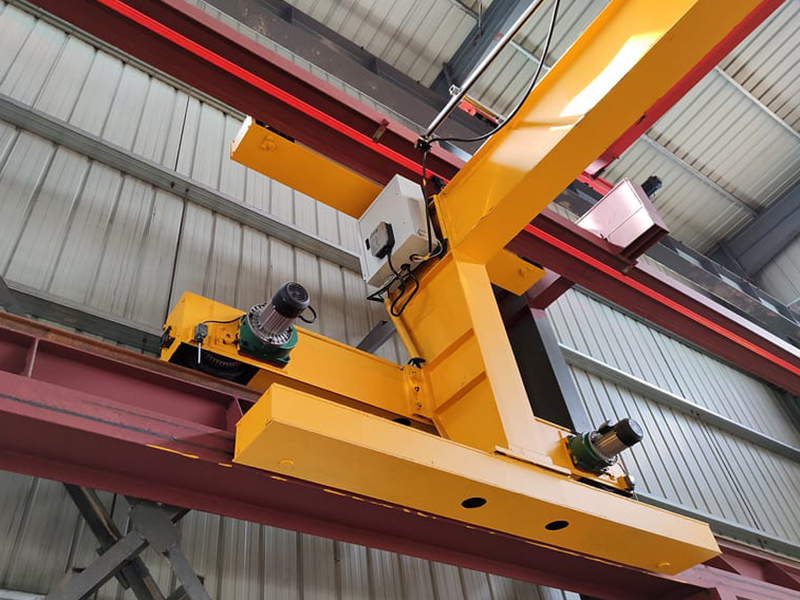

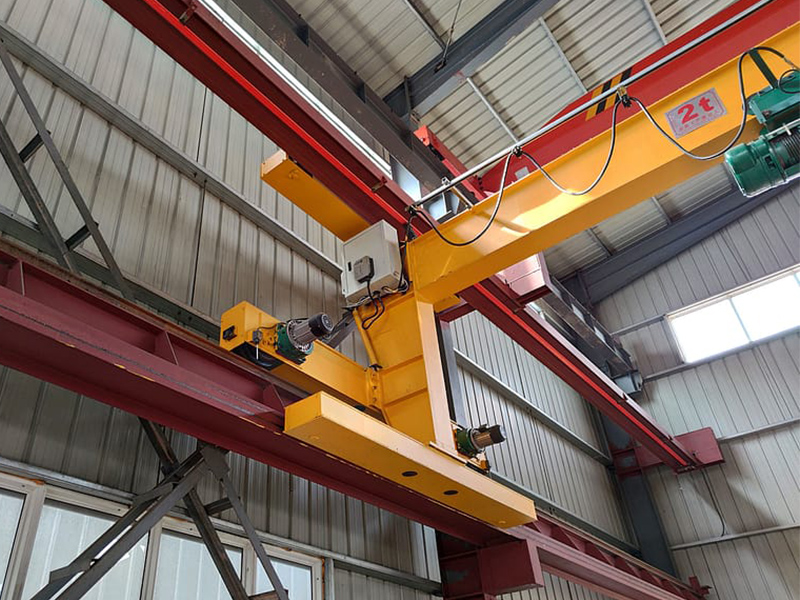

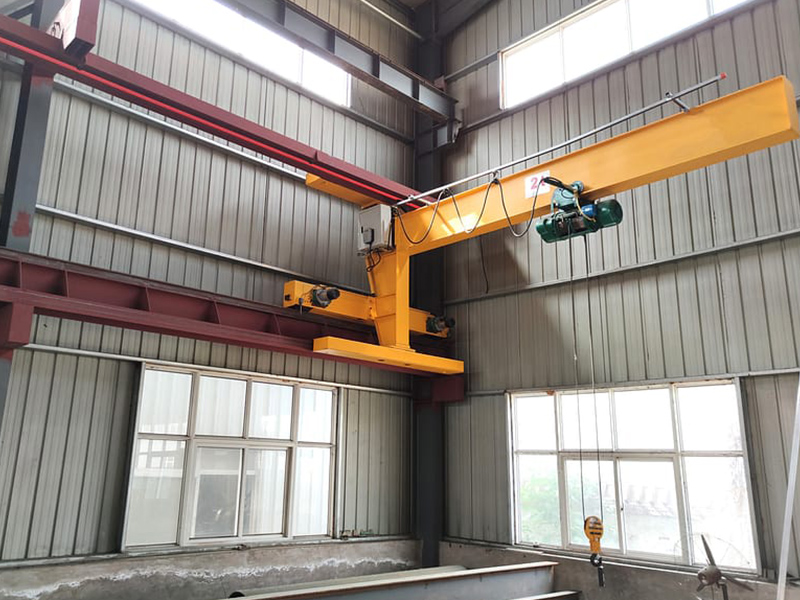

BB type wall travelling jib crane is a cantilever crane that runs on a rail installed on a wall or other supporting structure. It realizes longitudinal movement through the running rail installed on the concrete column of the factory building, and the hoisting trolley (winch, hoist trolley or winch trolley) can complete the lateral movement and vertical lifting along the cantilever, thereby greatly expanding the operating range and effectively utilizing the factory space.
BB type wall travelling jib crane is widely used in warehouses, assembly lines, machinery maintenance workshops, etc.
Depending on your actual use, there are different jib cranes for customers to choose from. We have an experienced team of crane engineers. We design the right jib crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.
Parameter
Capacity
Ton
0.25
0.5
1
2
3
5
10
Radius
Meter
2~6
2~6
2~6
2~6
2~6
2~6
2~6
Lifting height
Meter
3~12
3~12
3~12
3~12
3~12
3~12
3~12
Rotation
Degree
180
180
180
180
180
180
180
Lifting speed
M/min
8
8
8
8
8
8
8
Cross travel speed
M/min
20
20
20
20
20
20
20
Travelling speed
M/min
20
20
20
20
20
20
20
Control model
Pendant control or remote control
Advantages & Disadvantages
Make full use of the existing conditions of the factory
Use high-quality steel
Easy to install and maintain, accessories are highly versatile
Smooth and reliable operation
High working efficiency, accurate positioning
Provide the best highest hook position.
Greatly improve the productivity of the factory.
Customized to meet different capacities and working span.
High flexibility: The rail of the wall travelling jib crane is installed on the pillars of the factory building, so that the crane can move longitudinally on the rail, which significantly improves the flexibility of operation.
High space utilization: This design not only improves the utilization of the operating space, but also makes the lifting work more efficient, saving the time and energy of workers switching between different positions.
High operating efficiency: The electric hoist can move horizontally on the cantilever and realize the vertical lifting of goods, which greatly increases the operating range and efficiency.
Wide application: The wall-mounted cantilever crane is suitable for short-distance operation and intensive lifting operations. It is often used for the transportation of equipment on the production line, especially in equipment maintenance..
Space saving: The wall-mounted cantilever crane is installed on the wall or pillar, which is particularly suitable for places with limited space, such as workshops, warehouses, etc.
Low installation and maintenance costs: It has a simple structure, good stability, and low installation and maintenance costs.
Tailored Your Crane
It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility. If you require custom options, let us know and we will work with you to build a factory overhead crane that meets your needs.
Lifting capacity: _____ ton
Lifting height: ______ m
Span: _______m
Power supply: _____V _____Hz 3 Phase
Crane travelling length: _______m
New factory? or existing factory?_____________________
What purpose will use the crane? ___________________
Detailed working conditions of the crane:____________
Other requirements:__________________________________
Overhead crane can be equipped with different spreaders to adapt to more working conditions. For example, the following spreaders can be customized:
Crane C Hook for coil
Crane Electromagnet
Grab Bucket
Lifting Beam
Crane Lifting Tong
Container Spreader
Special Hook（Electric rotation, casting, insulation, etc.）
