Description

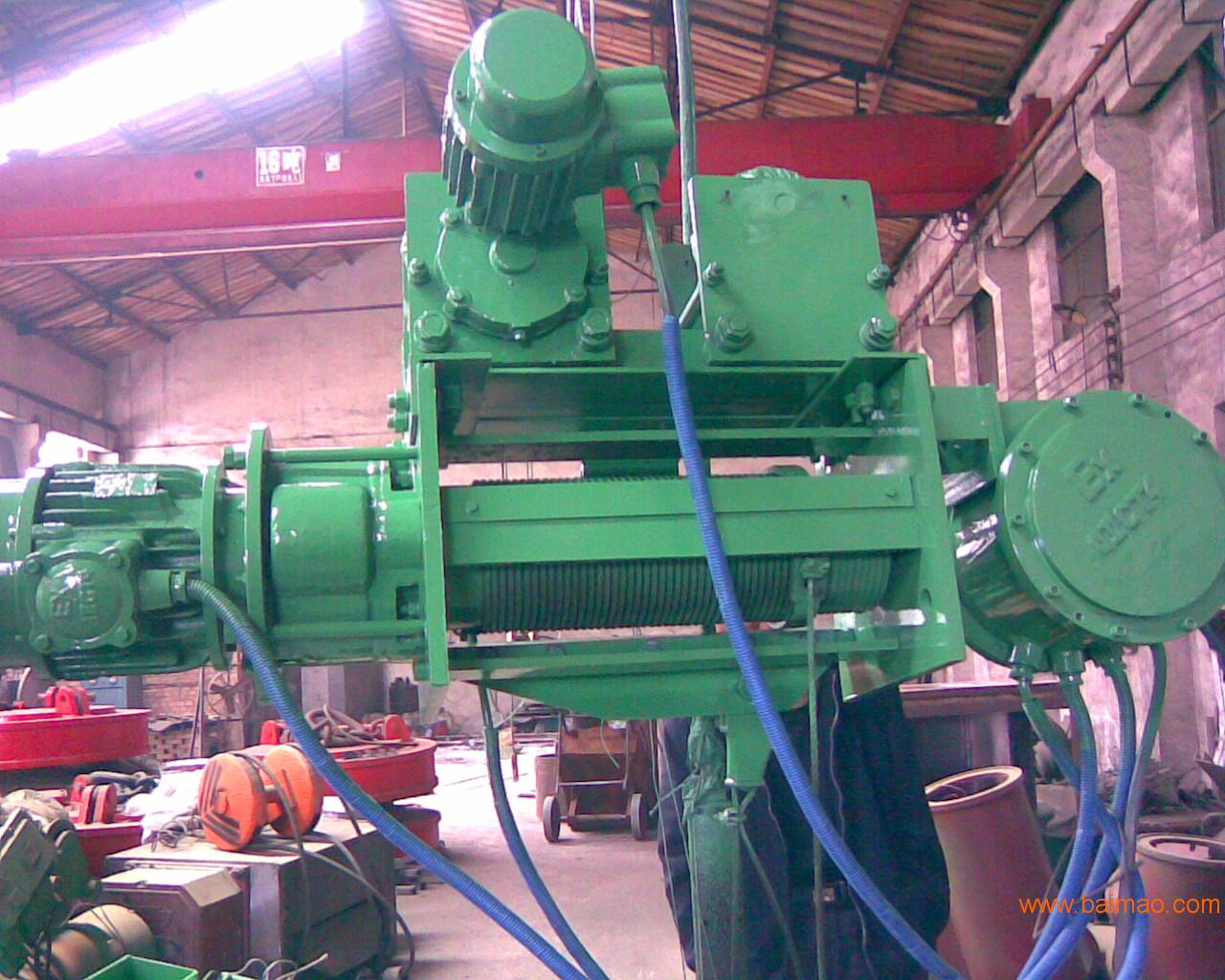

BCD explosion-proof electric hoist is suitable for factories with explosive gas environments formed by flammable gas, steam and air, and its explosion-proof grade is not greater than Class B or Class C. According to the provisions of "GB3836.1-2000" and "GB3836.2-2000", motors and electrical equipment are explosion-proof equipment. When the explosion-proof grade is ExdII CT4, the operating mechanism should be treated with spark protection.

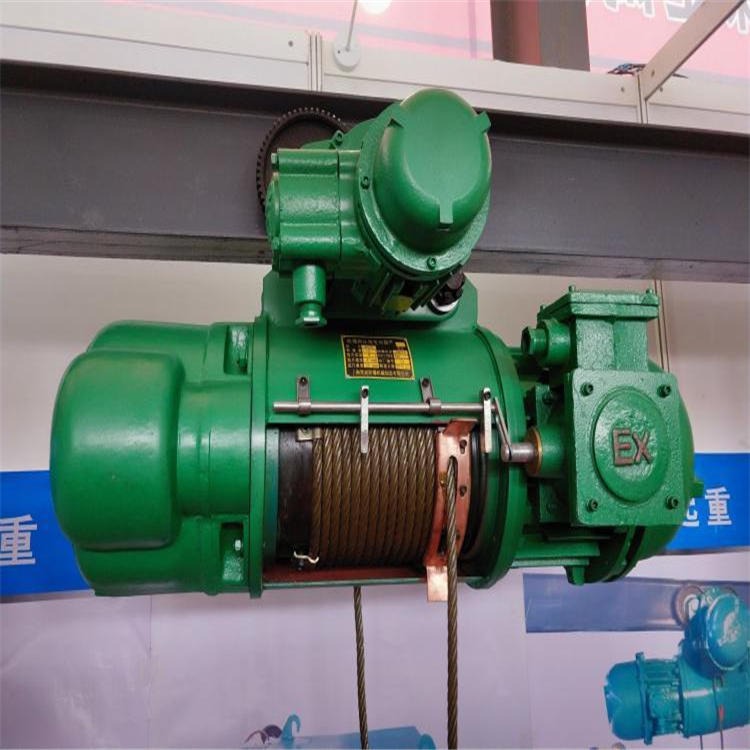

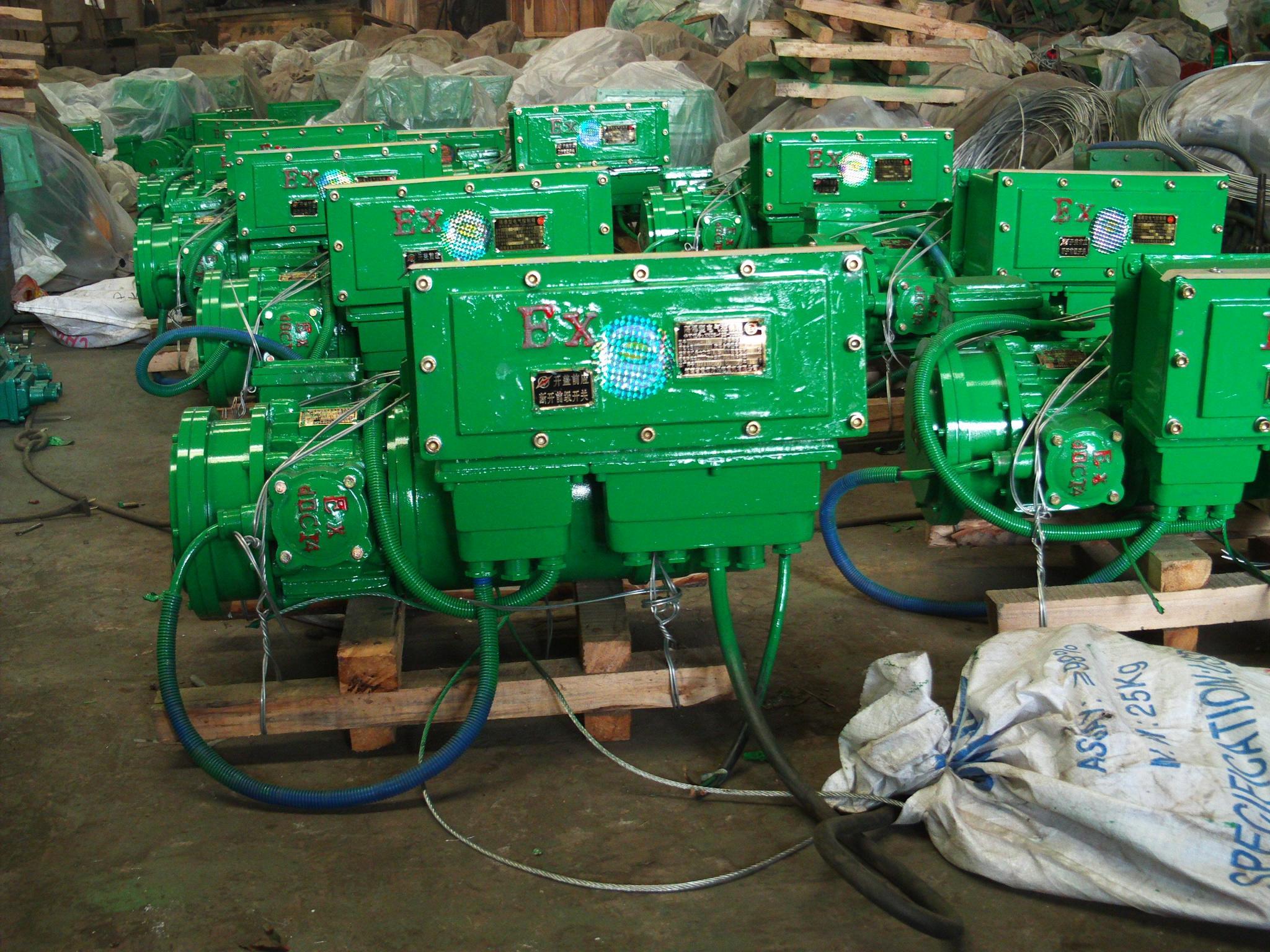

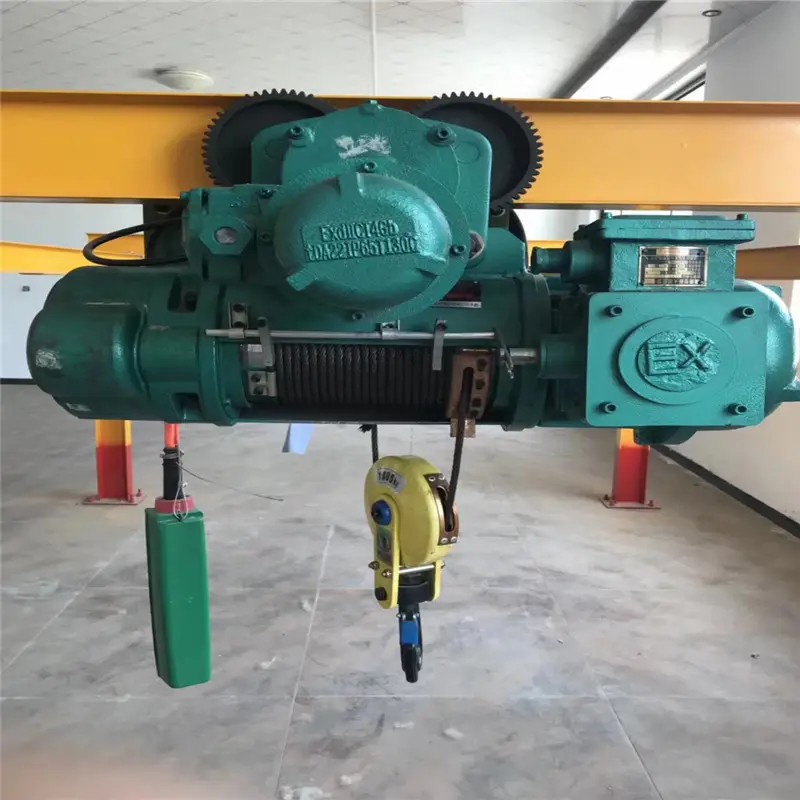

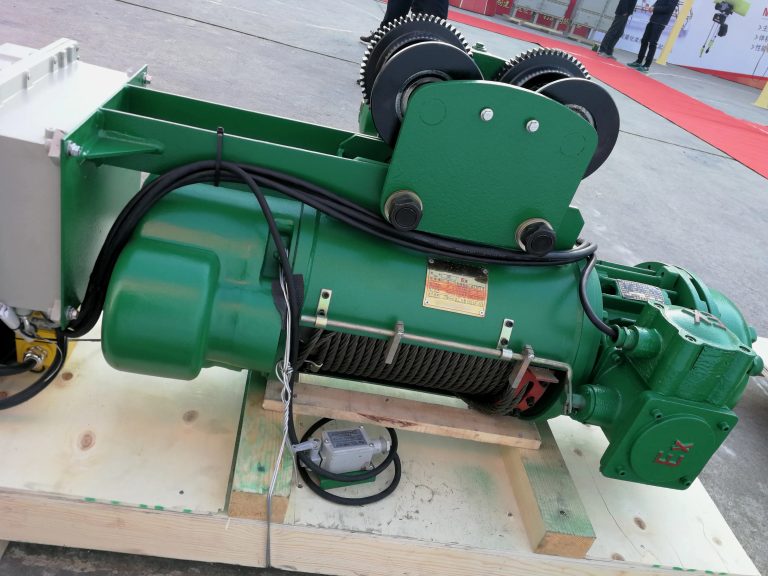

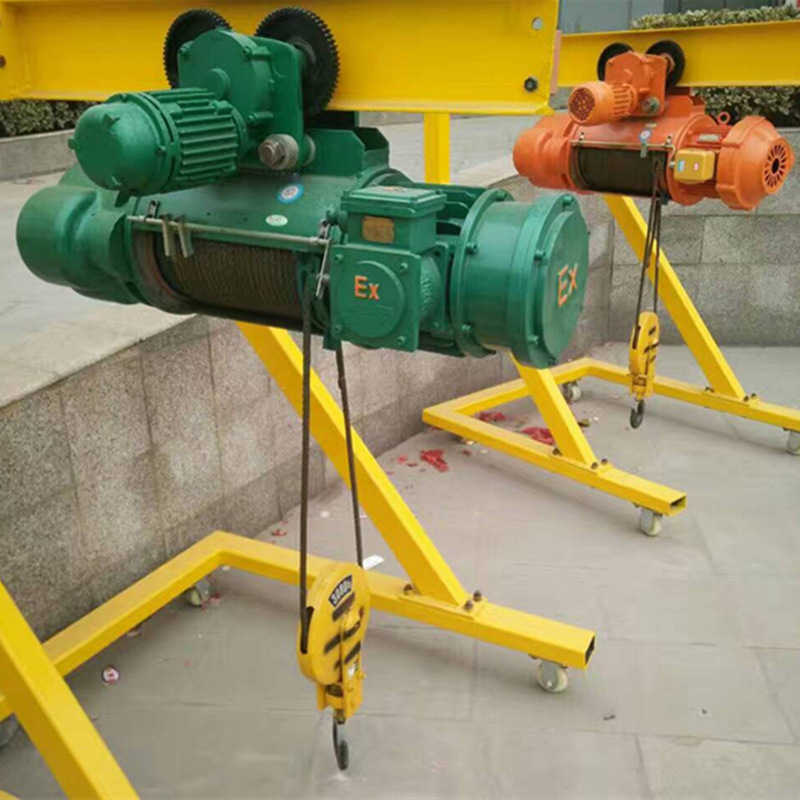

The explosion-proof grade of BCD wire rope explosion-proof electric hoist is ExdII BT4 and ExdII CT4, which can be used for workshop fixed suspension rails, and can also be used with LXB explosion-proof suspension single-beam crane, LB explosion-proof electric single-beam crane and explosion-proof hoist double-beam crane. Flagcrane also provides explosion-proof European electric hoist, which is a newly designed hoist.

Depending on your actual use, there are different hoist for customers to choose from. We have an experienced team of crane engineers. We design the right hoist type for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Parameter

Advantages

• Enhanced Safety: Spark-proof design and Ex-protection ensure safe operation in hazardous environments.
• High Performance: Maximum load capacity of 80 tons and efficient motor design for reliable lifting.
• Versatility: Multiple duty classes and advanced configurations cater to various operational needs.
• Durability: High-quality materials and maintenance-free components extend service life.
• Easy Operation: User-friendly features like dual-limit switches and smart driving enhance operational efficiency.

Features

1. Spark-Proof Design: Spark-proof measures for hazardous environments. bronze-coated hooks and nylon sheaves reduce spark risk.
2. Ex-Protection Class: Available in Ex-classes: dIIBT4, eIIBT4, IICT4, eIIIBT4.
3. Duty Class Options: M4, and M5 for various operational needs.
4. Power Supply System: Ex-proof mobile supply with C-profile festoon system for flexibility.
5. Durable Cable and Trolley: Rubber and round-form cables; nylon trolley design minimizes friction.
6. Limit Switches: Dual-limit switches for safe bridge and trolley operations.
7. Advanced Configurations: Low headroom design, smart driving mechanism, 2-speed trolley, and dust-proof brakes.
8. Adjustable Lifting Limit Switch: Programmable four-step rotation for precise control.

Tailored Your Crane

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a customized hoist that meets your needs.

1. Fixed or Traveling
2. Lifting capacity: _____ ton
3. Lifting height:______m
4. Power supply: _____V _____Hz 3 Phase
5. What purpose will use the hoist?________________________
6. Detailed working conditions of the Hoist:_______________
7. Other requirements:______________________________

Hoist can be equipped with different spreaders to adapt to more working conditions. For example, the following spreaders can be customized:

• Crane C Hook for coil
• Crane Electromagnet
• Grab Bucket
• Lifting Beam

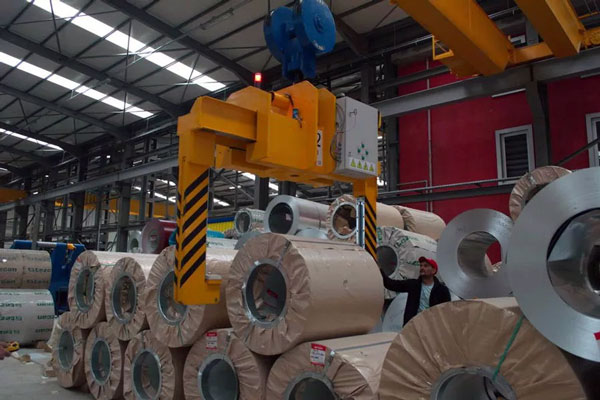

• Crane Lifting Tong
• Container Spreader
• Special Hook（Electric rotation, casting, insulation, etc.）
