Description

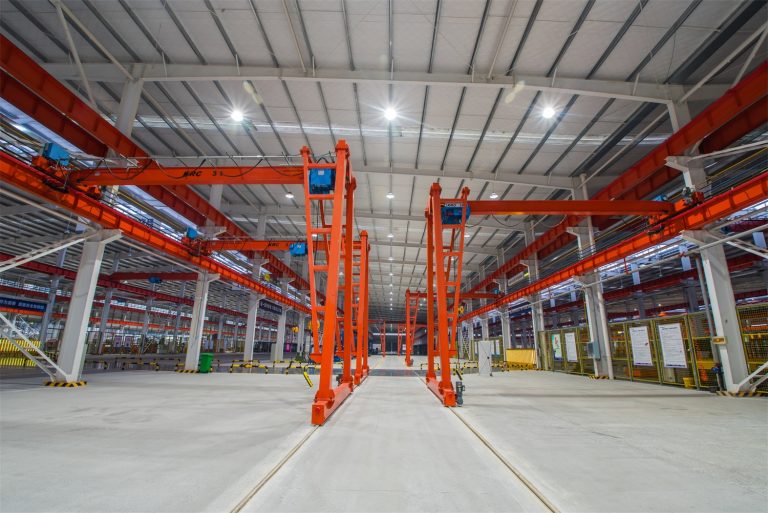

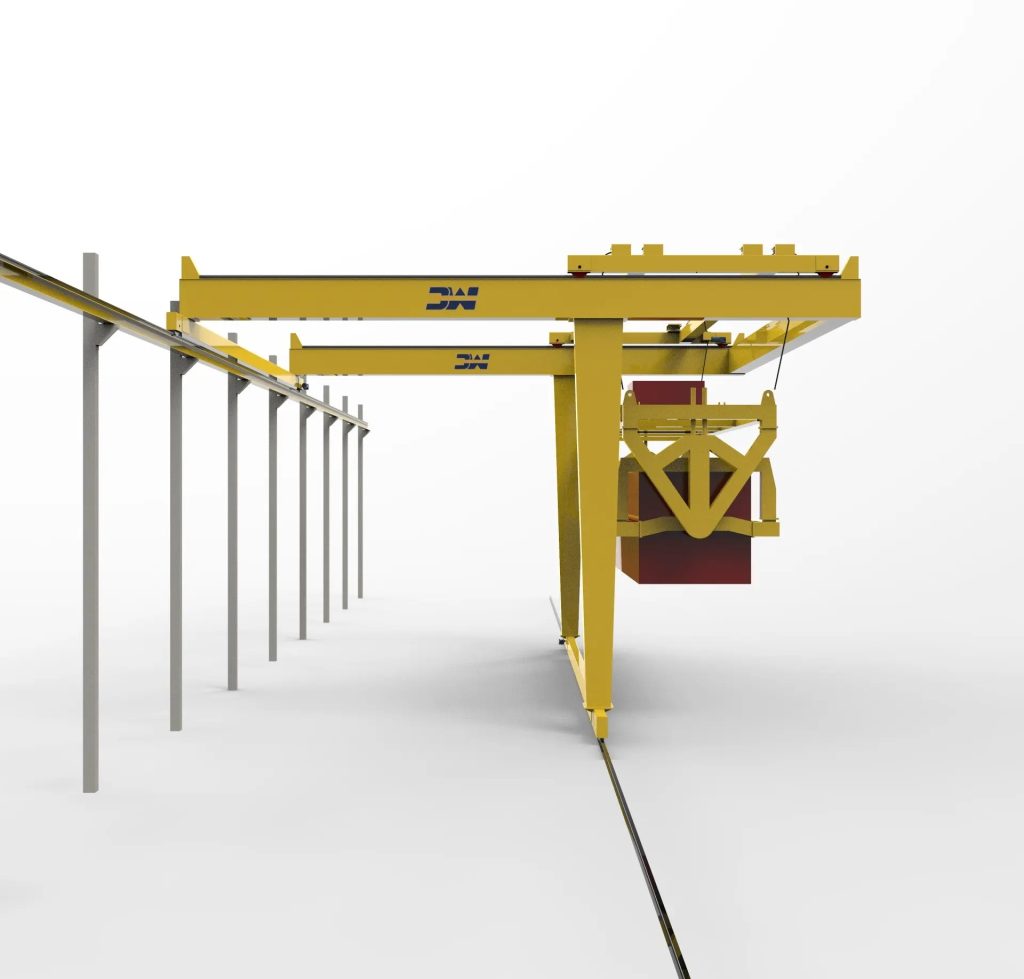

BMH/BMG type semi gantry crane is specially designed and produced for special conditions (usually building foundations and crane tracks). semi gantry crane have two sets of end beams, one set running on rails on the ground and the other on rails on the building. In this way, areas close to walls can also be reached.

BMH/BMG type semi gantry cranes are used in indoor and outdoor sites where both tracks cannot be all at ground or overhad: manufacturing workshops, warehouses, assembly plants, storage areas and other modern production plants.

Depending on your actual use, there are different gantry cranes for customers to choose from. We have an experienced team of crane engineers. We design the right gantry crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Parameter

Advantages & Disadvantages

BMH/BMG type semi gantry cranes can be equipped with high-performance motors, ABM brand, Schneider brand electrical components, variable speeds, box girder design, light pressure electric lifting trolley(hoist, hoist trolley and winch trolley). It has the advantages of low noise, maintenance-free, light weight, and beautiful appearance, and most popular used in the open yard.

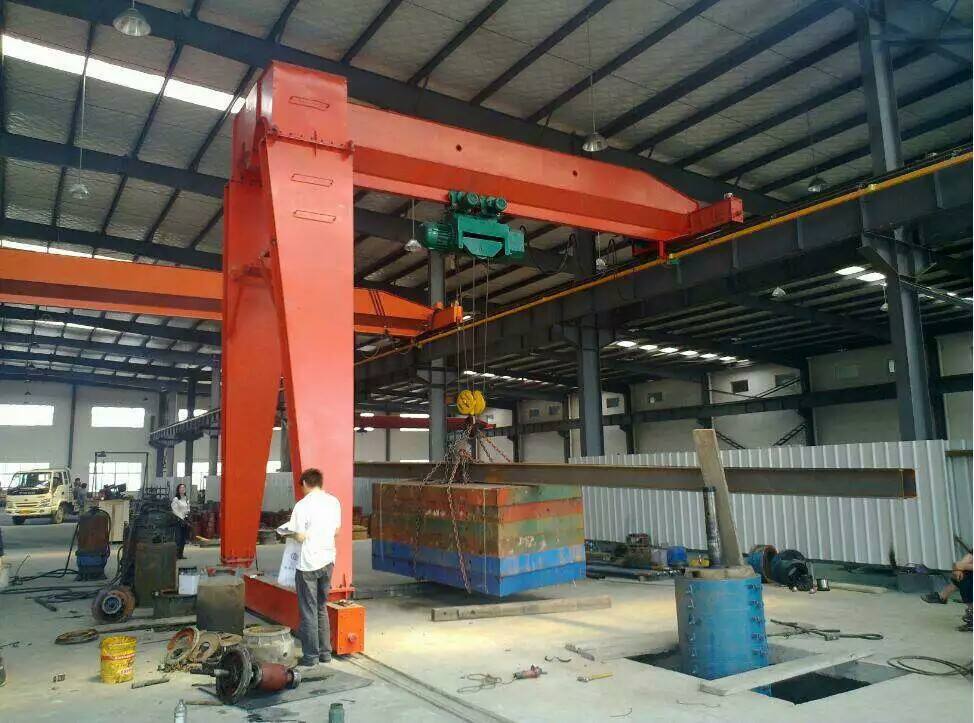

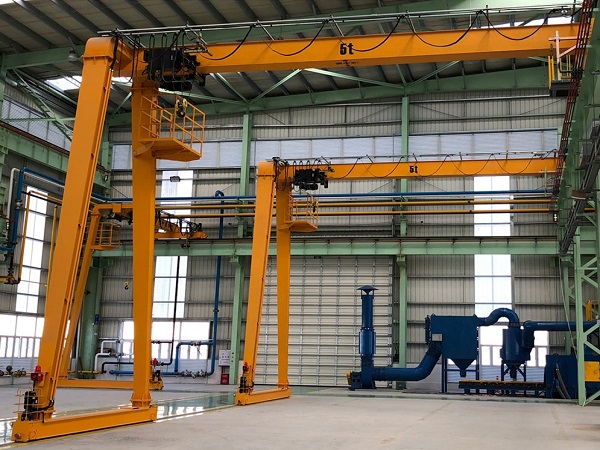

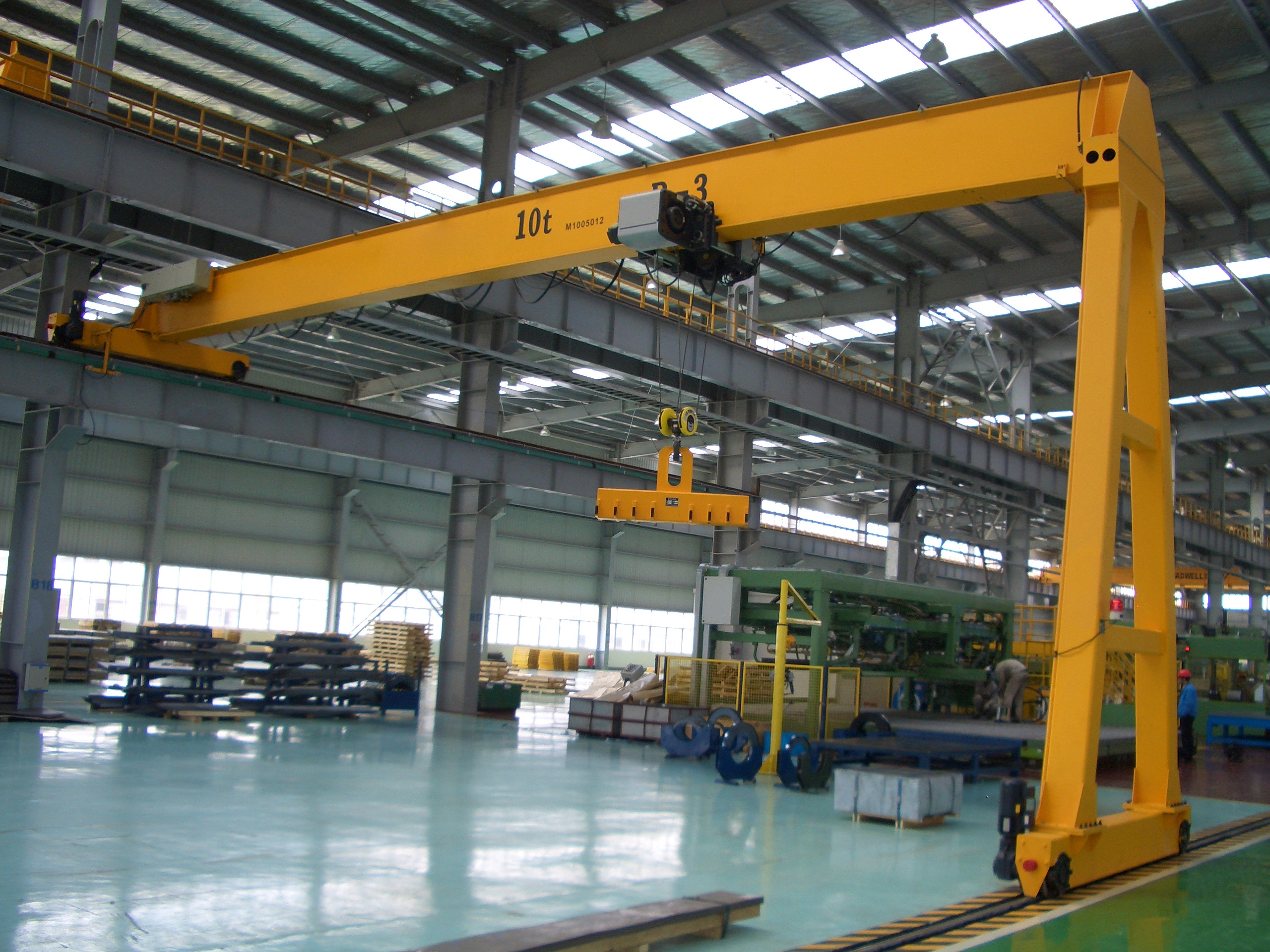

BMH type single girder semi gantry crane is a general purpose light crane used in workshop or outdoors. The leg height of this single girder semi-gantry crane can be different according to the engineering needs on the construction field. The single girder semi gantry crane has the features of simple structure, easy installation, light weight, good wind resistance.

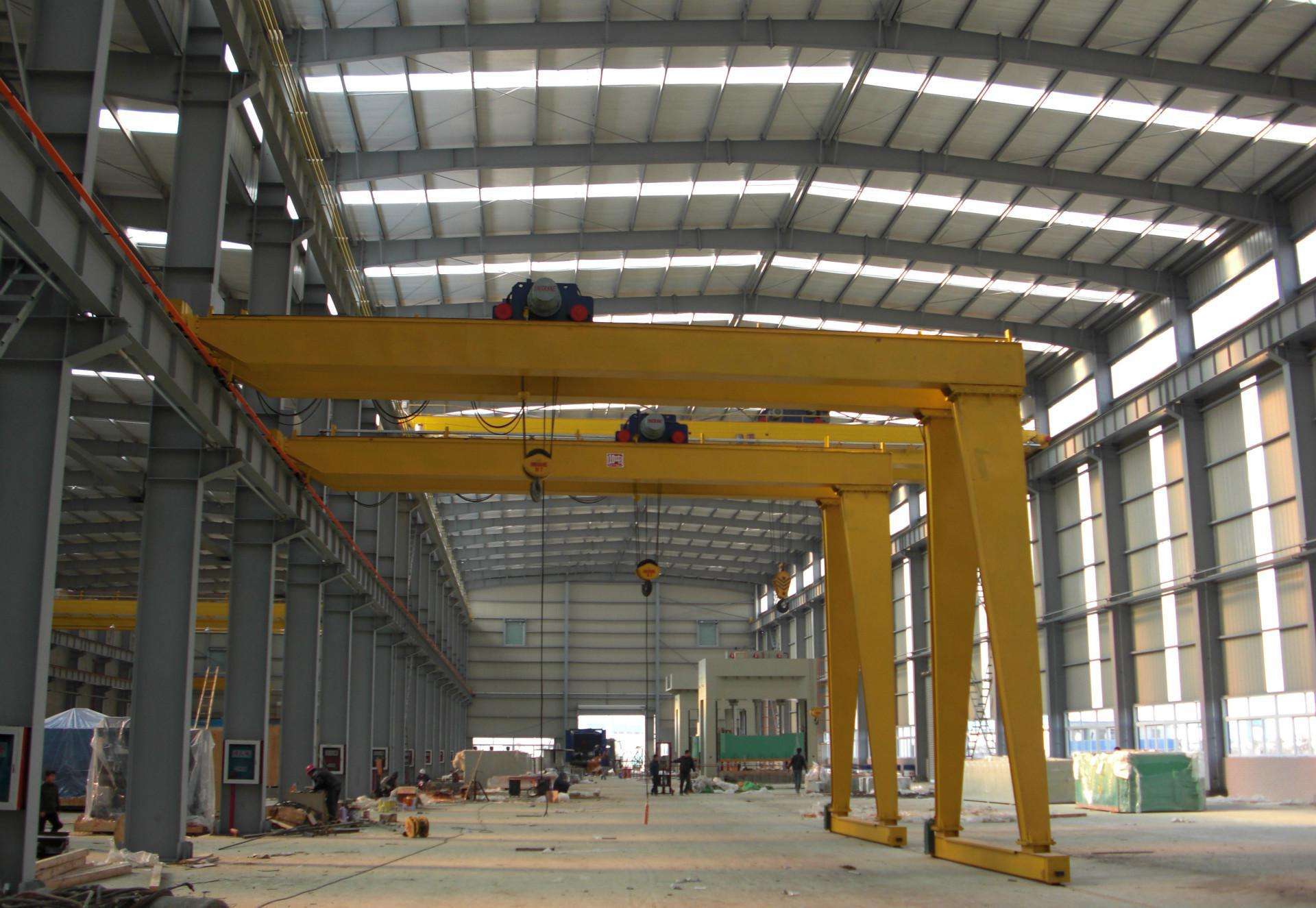

BMG type double girder semi gantry crane is combining the advantages of the full gantry crane and overhead crane. It is widely applied to do loading and unloading work in indoor or outdoor.

• Safety protection
• Lifting limit switch: Prevent the hook out of control when it has been lifted to the top position.
• Traveling limit switch: Stop the crane traveling smoothly when travel to the rail ends.
• Overload limiter: Prevent for the overload.
• Wire rope guide: Align the wire rope neatly on the reel to prevent the wire rope from messing and overlapping.
• Equipped with safety protection devices: such as short circuit protection, emergency switch, interlock protection, overload protection, loss of voltage protection, grounding protection and voice-activated alarm lights and other safety protection

Features

1. Easy maintenance, saving electricity.
2. Universal parts.
3. Semi-gantry legs, one-sided walking on the factory support beam, wide working area.
4. Smooth start and stop, overload protection.
5. Protective grounding. Main hoisting motor with thermal protection.
6. Emergency switch can stop all actions in case of any danger.
7. Test the characteristics of components before assembly.
8. All cranes must be pre-assembled and tested before leaving the factory, and provide test certificates.

Tailored Your Crane

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a factory overhead crane that meets your needs.

1. Lifting capacity: _____ ton
2. Lifting height: ______ m
3. Span: _______m
4. Power supply: _____V _____Hz 3 Phase
5. Crane travelling length: _______m
6. New factory? or existing factory?_____________________
7. What purpose will use the crane? ___________________
8. Detailed working conditions of the crane:____________
9. Other requirements: __________________________________

Overhead crane can be equipped with different spreaders to adapt to more working conditions. For example, the following spreaders can be customized:

• Crane C Hook for coil
• Crane Electromagnet
• Grab Bucket
• Lifting Beam
• Crane Lifting Tong
• Container Spreader
• Special Hook（Electric rotation, casting, insulation, etc.）
