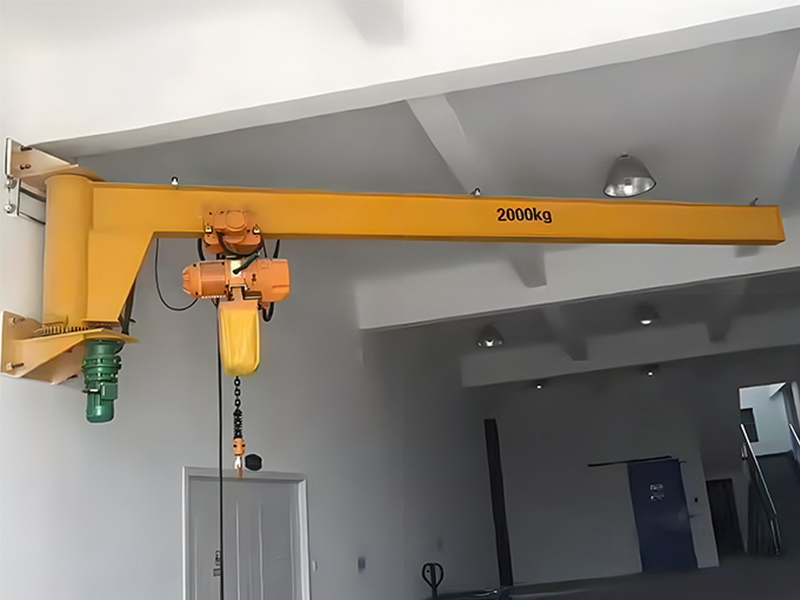

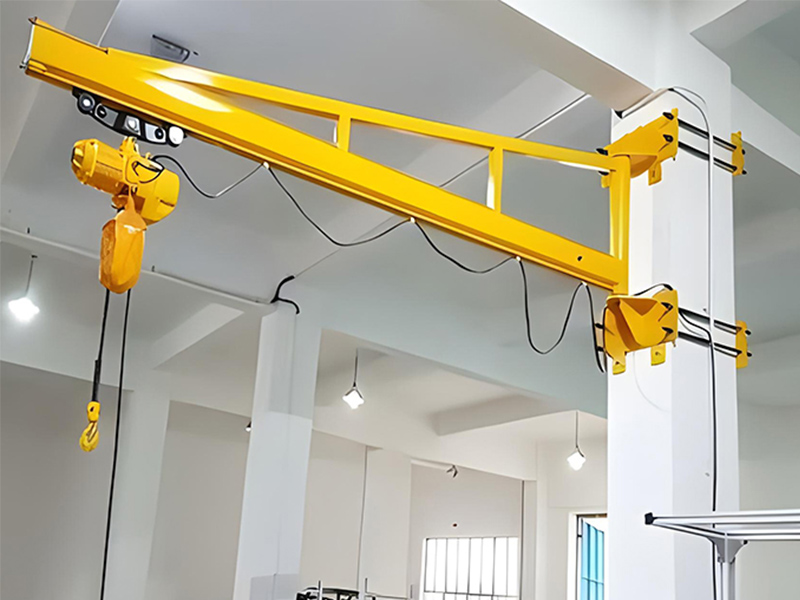

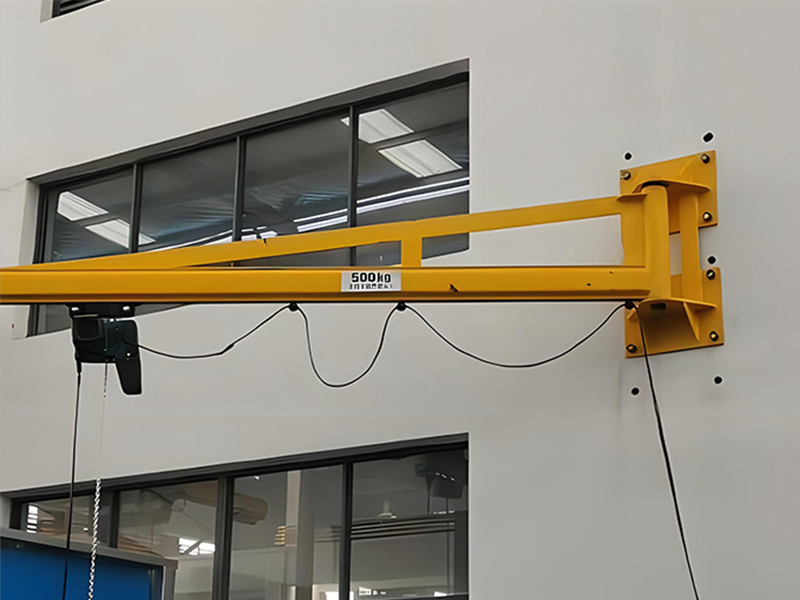

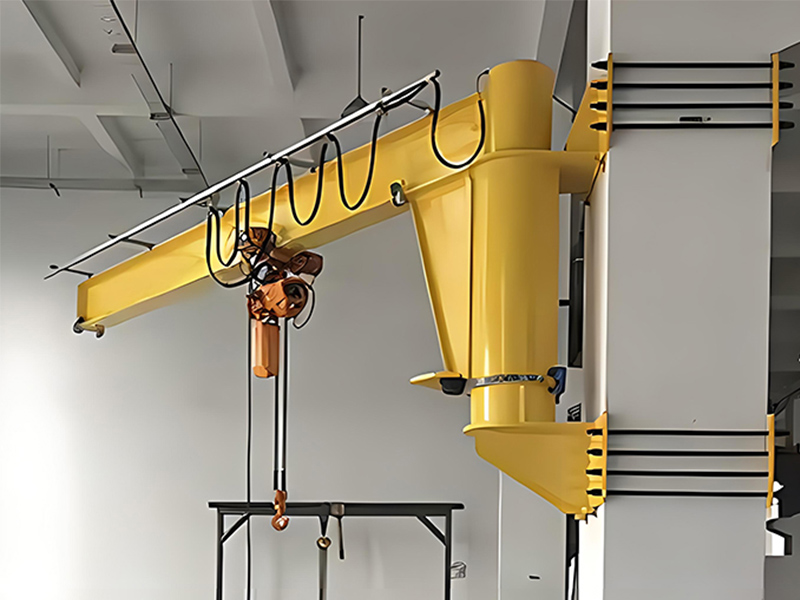

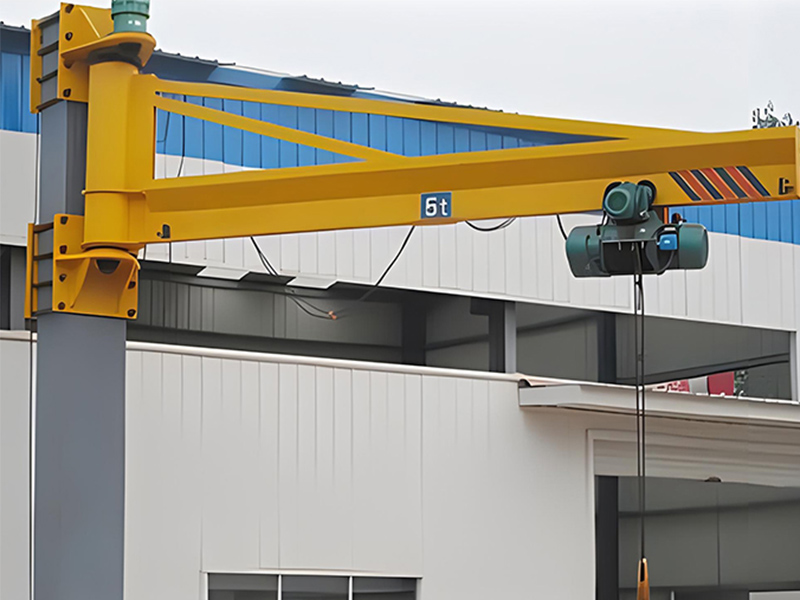

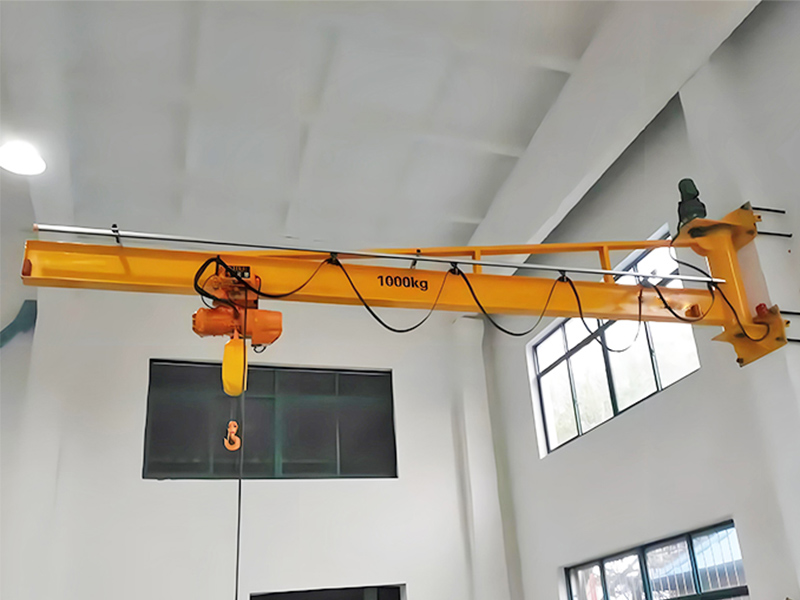

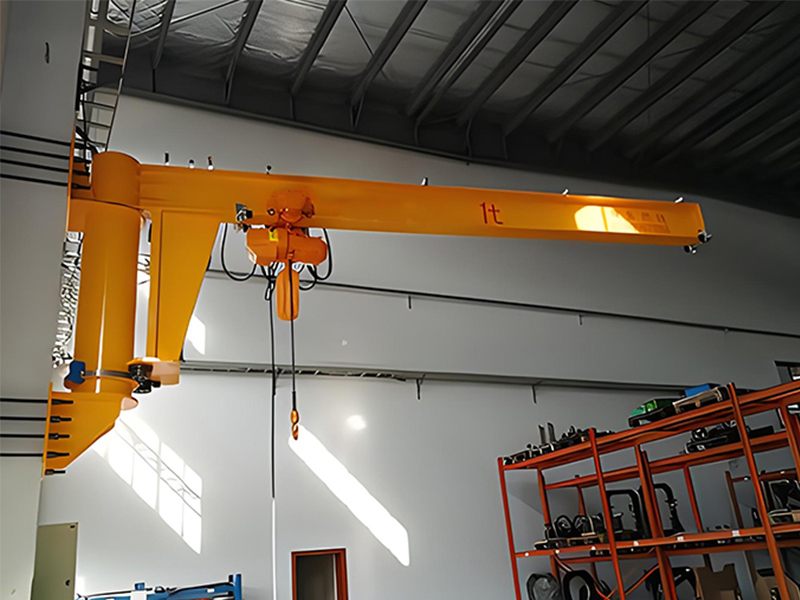

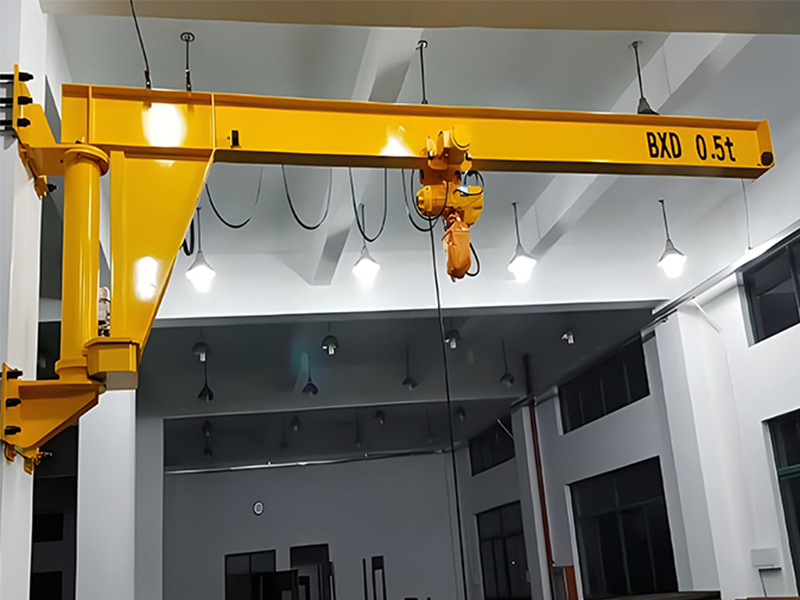

BX type wall mounted jib crane is a cantilever crane installed on the building structure, which does not take up space in the factory.
BX type wall mounted jib crane has the advantages of high efficiency, energy saving, labor saving, small space occupation, convenient operation and maintenance, etc.
BX type wall mounted jib crane is widely used in warehouses, assembly lines, machinery maintenance workshops, etc.
Depending on your actual use, there are different jib cranes for customers to choose from. We have an experienced team of crane engineers. We design the right jib crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.
Parameter
Capacity
Ton
0.25
0.5
1
2
3
5
Radius
Meter
2~6
2~6
2~6
2~6
2~6
2~6
Lifting height
Meter
3~12
3~12
3~12
3~12
3~12
3~12
Rotation
Degree
180
180
180
180
180
180
Lifting speed
M/min
8
8
8
8
8
8
Cross travel speed
M/min
20
20
20
20
20
20
Rotation speed
M/min
0.76-0.53
0.76-0.53
0.76-0.53
0.76-0.53
0.76-0.53
0.76-0.53
Control model
Pendant control or remote control
Advantages & Disadvantages
Make full use of the existing conditions of the factory
Use high-quality steel
Easy to install and maintain, accessories are highly versatile
Smooth and reliable operation
High working efficiency, accurate positioning
Provide the best highest hook position.
Greatly improve the productivity of the factory.
Customized to meet different capacities and effective working radius.
High space utilization: The BX type wall mounted jib crane can be installed on the wall or column without occupying the ground space, which is particularly suitable for working environments with limited space, such as shops, warehouses, etc.
Large load-bearing capacity: Usually adopts steel structure design, which can increase the load-bearing weight and meet various lifting needs.
Good stability: Fixed on the wall or column, it has good stability and ensures the safety of the lifting process.
Easy operation: Equipped with a bracket, it is simple and convenient to operate, can flexibly control the operation, and improve work efficiency.
Economical and practical: Simple structure, high cost, high economy and practicality.
Tailored Your Crane
It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility. If you require custom options, let us know and we will work with you to build a factory overhead crane that meets your needs.
Lifting capacity: _____ ton
Lifting height: ______ m
Span: _______m
Power supply: _____V _____Hz 3 Phase
Crane travelling length: _______m
New factory? or existing factory?_____________________
What purpose will use the crane? ___________________
Detailed working conditions of the crane:____________
Other requirements:__________________________________
Overhead crane can be equipped with different spreaders to adapt to more working conditions. For example, the following spreaders can be customized:
Crane C Hook for coil
Crane Electromagnet
Grab Bucket
Lifting Beam
Crane Lifting Tong
Container Spreader
Special Hook（Electric rotation, casting, insulation, etc.）
