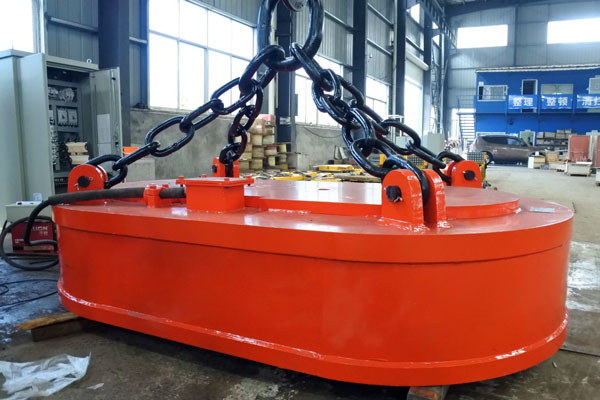

Crane Lifting Electromagnet

Description

Crane lifting electromagnet is a specialized lifting device that uses electromagnetic force to securely handle ferrous materials. Its core design comprises a steel housing with an internally mounted excitation coil. Widely utilized across industries such as metallurgy, mining, machinery, and transportation, these magnets serve as indispensable tools for moving heavy steel objects. Additional applications include electromagnetic manipulators, decoilers, coking furnace covers, and more. To accommodate diverse material types, lifting electromagnets are engineered in specialized configurations for targeted efficiency.

These systems are critical in:

Coal processing and power plant coal handling
Steel production, metal mining, and cement manufacturing
Petrochemicals, shipbuilding, and port logistics
Glass, ceramics, paper, food processing, and railway operations

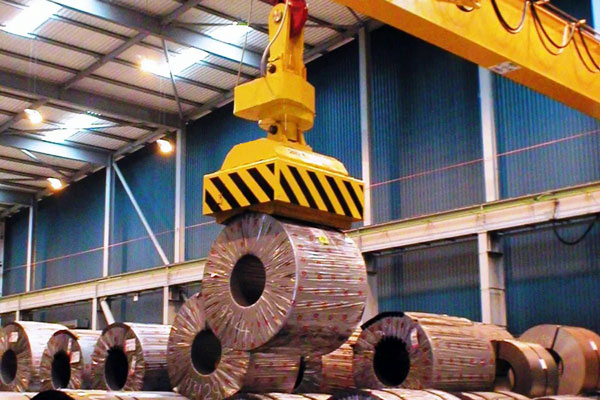

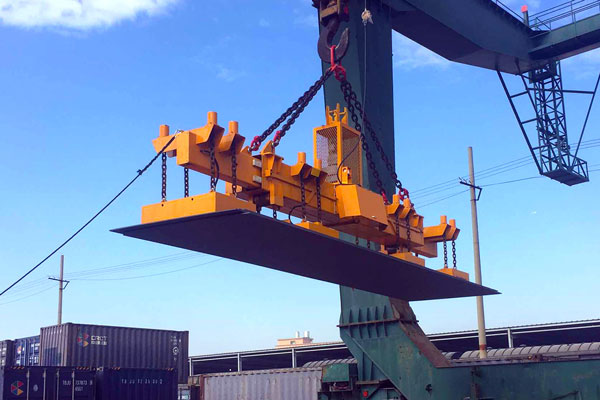

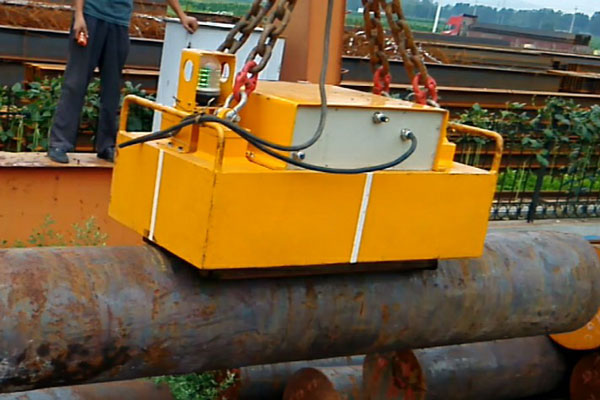

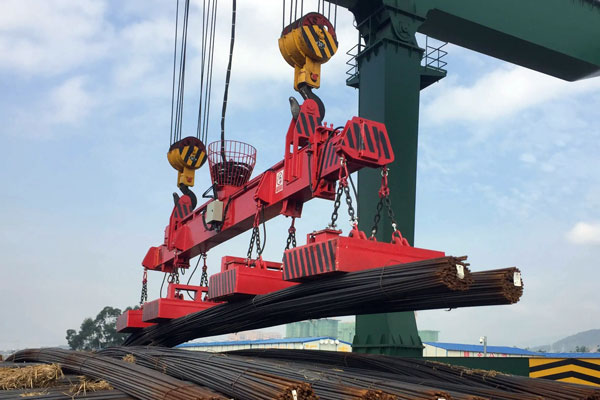

Flagcrane’s advanced Crane Lifting Electromagnet excel in handling billets, slabs, steel plates, bundled bars, coils, and scrap metal. Customizable designs ensure optimal performance for unique profiles, while proprietary electro-permanent magnet technology guarantees zero residual magnetism, preserving workpiece integrity. Their systems support multi-magnet group control, streamlining operations and significantly boosting productivity.

Depending on your actual use, there are different crane spreader for customers to choose from. We have an experienced team of crane engineers. We design the right crane system for you, and provide a full range of after-sales services to enable your crane system to operate quickly, stably and reliably.

Parameter

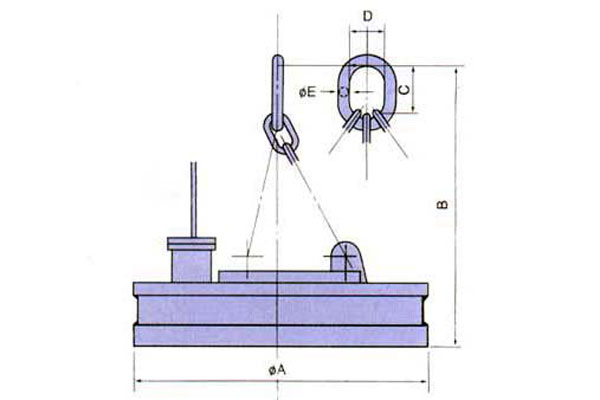

Item	Cold State Power (kw)	Current A Cold/Hot State	Overall dimension A （mm）	Overall dimension B （mm）	Overall dimension C （mm）	Overall dimension D （ mm ）	Overall dimension E （ mm ）	Weight (kg)	Lifting Capacity-Steel Ball (kg) Cold / Hot State	Lifting Capacity-Casting Ingot (kg) Cold / Hot State	Lifting Capacity-Scrap (kg) Cold / Hot State
MW5-50L/1	2.6	11.8/7.7	500	700	160	90	25	220	1200	220/130	80/65
MW5-60L/1	3.0	13.6/8.9	600	750	160	90	25	340	2000	290/170	95/80
MW5-70L/1	3.3	15/9.8	700	800	160	90	30	490	2500	380/200	120/100
MW5-80L/1	4.0	18/12	800	800	160	90	30	620	3000	480/250	150/130
MW5-90L/1	5.9	26.8/17.5	900	1090	200	125	40	800	4500	600/400	250/200
MW5-110L/1	7.7	35/22.8	1100	1140	220	150	45	1350	6500	1000/800	450/400
MW5-120L/1	10	45.5/29.5	1200	1100	220	150	45	1700	7500	1300/1000	650/500
MW5-130L/1	12	54.5/35.5	1300	1240	250	175	50	2010	8500	1400/1100	700/600
MW5-150L/1	15.6	70.9/46.1	1500	1250	350	210	60	2830	11000	1900/1500	1100/900
MW5-165L/1	16.5	75/48.8	1650	1590	370	230	75	3200	12500	2300/1800	1300/1100
MW5-180L/1	22.5	102.3/66.5	1800	1490	370	230	75	4230	14500	2750/1100	1600/1350

Advantages

‌1. Flexible Control

‌Instant magnetic on/off‌: Activate or deactivate magnetism instantly by switching the power on or off.
Adjustable strength‌: Control magnetic force precisely by adjusting current, coil turns, or resistance.
Reversible polarity‌: Switch magnetic poles by reversing the current direction for versatile applications.

‌2. Durable & Efficient Design

‌Weatherproof and long-lasting‌: Fully sealed structure with waterproofing and high-grade insulation (Class C) for extended durability.
Lightweight yet powerful‌: Computer-optimized design ensures strong lifting force with low energy use.

‌3. High Performance & Adaptability

‌Improved power efficiency‌: Operates at 60% continuous power (up from 50%), saving energy.
Handles extreme heat‌: Special heat-resistant models can lift materials up to 700°C.

‌4. Easy to Use & Maintain

Simple installation, low maintenance, and clear safety guidelines for heavy-load operations.

5. Wide Applications

Works with magnetic materials like steel, iron scrap, and metal parts—ideal for factories, recycling, and construction.

12 Sets Electric Winch for UAE

Industry：Marine Engineering Industry
Product：10t-100m
Country：UAE

1 Sets Single Girder Gantry Crane for Cameroon

Industry：Plastic Product Manufacturing
Product：MH16t-10.22m
Country：Cameroon

2 Sets Single Girder Overhead Crane for Serbia

Industry：Engineering Industry
Product：HD10t-17.3m
Country：Serbia

1 Sets Double Girder Overhead Crane for Philippines

Industry：Food Industry
Product：QDX25t-18.95m
Country：Philippines

Features

Core Performance Benefits

‌‌Fully sealed & waterproof‌: Built to withstand harsh environments (even underwater use for some models).
‌Durable materials‌: High-quality carbon steel cores + wear-resistant manganese plates for long-lasting strength.
‌Lightweight & powerful‌: Computer-optimized design maximizes lifting force while saving energy.
‌Heat-resistant up to 700°C‌: Special models safely handle red-hot metals like steel and iron.

‌Smart Control & Precision

‌‌Adjustable magnetic force‌: Tweak strength, turn on/off instantly, or reverse polarity via simple controls.
‌60% continuous power‌: More efficient than older models (previously 50%).
‌Built-in safety sensors‌: Temperature monitors and anti-drop tech prevent accidents.

Simplified Maintenance

‌Easy setup‌: Works seamlessly with control panels and cable reels.
‌Double-sealed wiring‌: Protects coils from water damage.
‌Low upkeep‌: Rugged design means fewer repairs.

Versatile Applications

Perfect for:

Steel mills & foundries

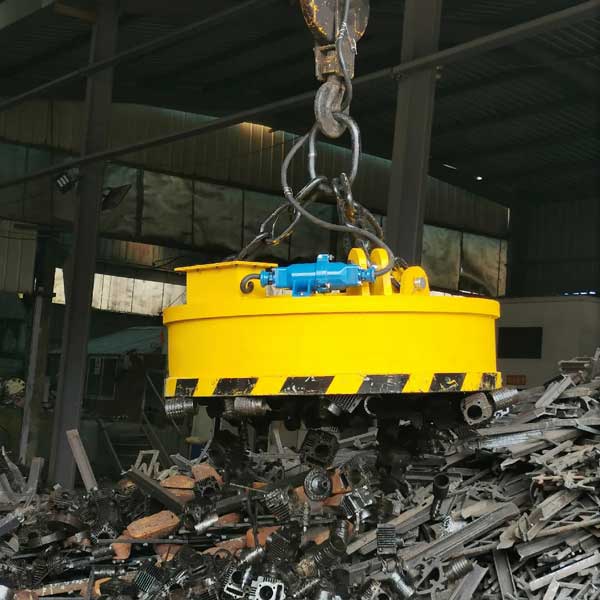

Scrap recycling centers
High-temperature factories
Construction sites

Tailored Your Crane Lifting Electromagnet

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom coil lifter that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a coil lifter that meets your needs.

What items will be lift by the crane lifting electromagnet?:____________
Diameter of lifting Item: L______mm * W______mm * H ______mm?
Temperature of lifting Item: ＜150℃, 150℃~600℃, ≥600℃ ?
Other requirements:__________________________________________
