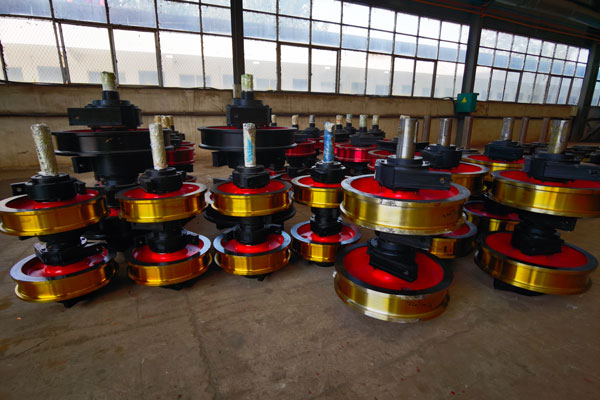

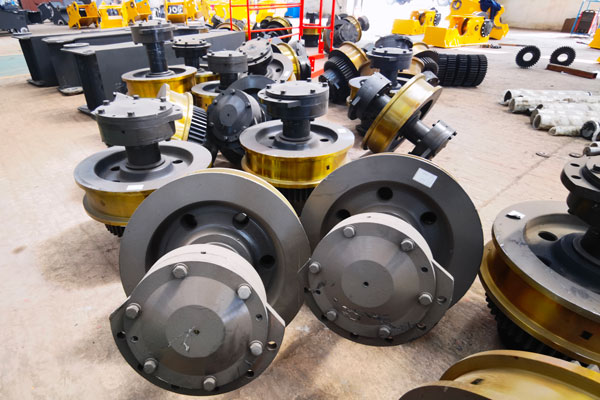

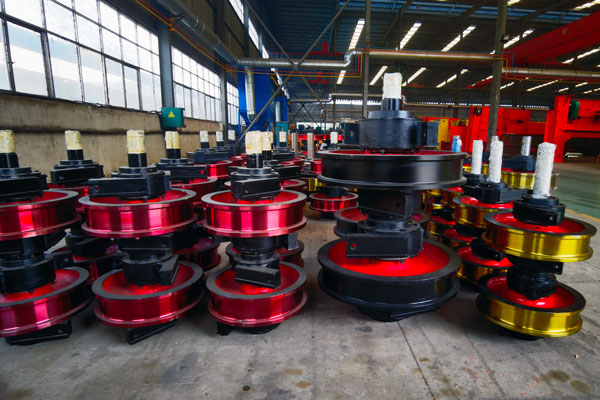

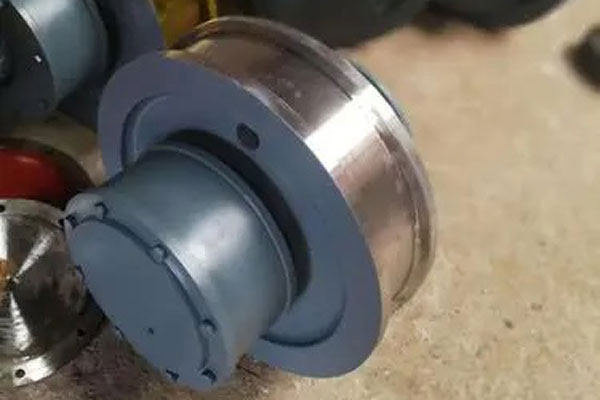

Crane wheels are usually made of durable steel or cast iron. They are strong and durable enough to carry and transport weight. These wheels travel on rails with drive provided by an electric or hydraulic system, enabling the crane to move laterally within the work area.
Electric system crane wheel is usually equip with electric motors. It drives the wheels from power. This drive method provides high precision and control. Cranes are capable of moving with high precision.
Hydraulic system crane wheel is driven from the hydraulic motor. Hydraulic systems generally provide greater torque and power output. The crane is capable of moving under the condition of large traction force.

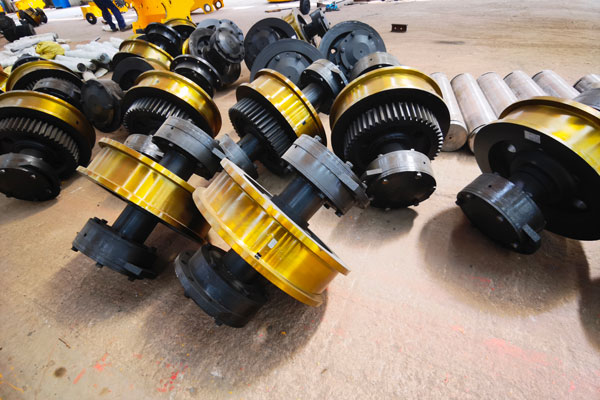

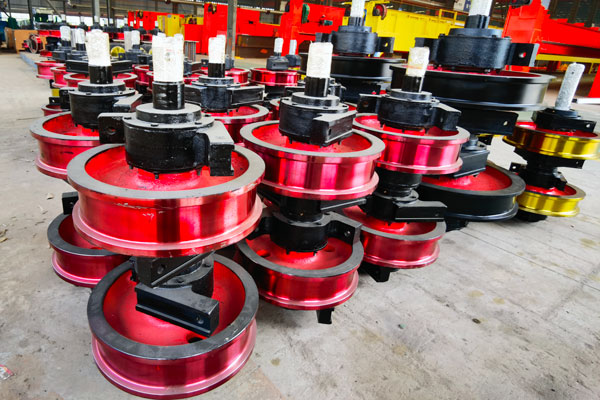

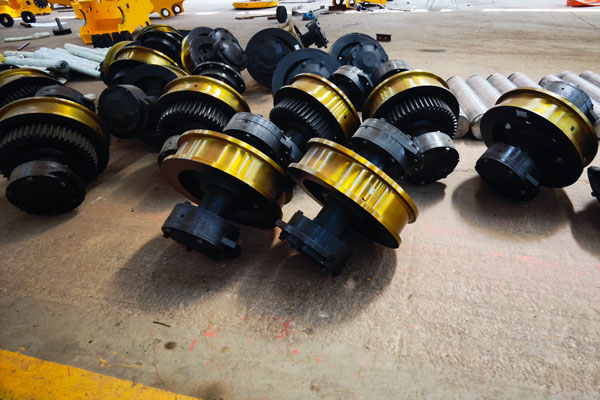

Crane wheels are are various. such as: single rim wheel, double rim wheel, non-rim wheel, and other nonstandard wheels.
Its mainly use in all kinds of lift machines, such as overhead crane, gantry crane, hoists and port crane etc.
Depending on your actual use, there are different crane parts for customers to choose from. We have an experienced team of crane engineers. We design the right crane system for you, and provide a full range of after-sales services to enable your crane system to operate quickly, stably and reliably.

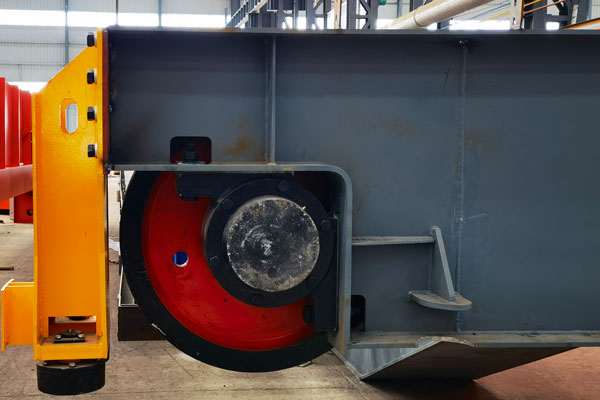

Crane wheel application: overhead crane, gantry crane, crane trolley, transfer car, heavy-duty industry, port crane, steel factory, etc.
Crane wheel heat treatment: quenching and tempering
Crane wheel coating: black oxide + rust-proof oil
Crane wheel inspection: A third-party inspection is possible if required.
Crane wheel material : 42CrMo4, AISI4140, 41Cr4, A504, SSW-Q1R, 65Mn, 1045, 1055, 1060, 1070, and ductile iron 400, 500,600,700 etc.

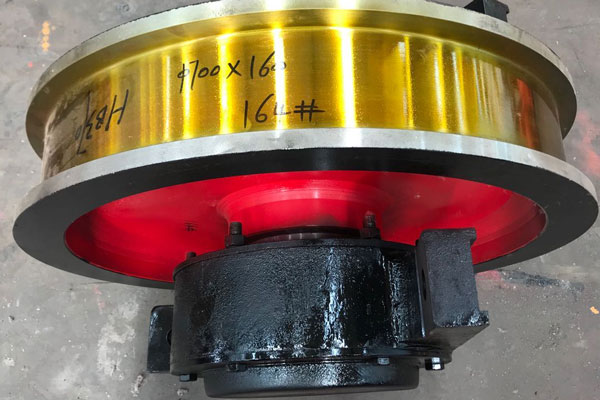

Crane wheel dimension: φ250, φ350, φ400, φ500, φ600, φ700, φ800, φ 1000, φ 1200 or customized overhead crane wheels and gantry crane wheels are supplied with the specifications.

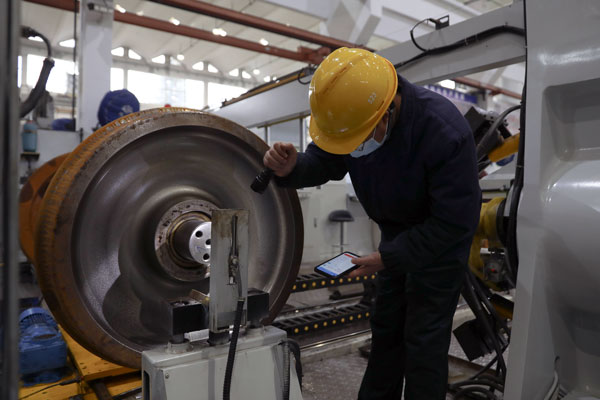

Crane wheel quality control: All the required crane wheel tests are applied including UT, MT, RT, PT, chemical composition test, mechanical property test, etc.
Crane wheel quenching depth: ≥20mm
Crane wheel competitive advantage: Quality control and management of the entire manufacturing process, including ingot smelting, forging, heat treatment, machining, and final inspection prior to delivery.
Crane wheel certificate: All the testing certifications are provided if required including raw material certificate(material chemical composition), Heat treatment sheet report, dimension inspection report,and UT/MT test report, etc.
Crane wheel packing: Seaworthy plywood packaged on steel pallets or customized.
Crane wheel certification: All our crane wheels have obtained CCC, ISO9001, and CE certification.
Tailored Your Crane Wheels
It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom Crane wheels that has everything you need to effectively lift materials within your facility. If you require custom options, let us know and we will work with you to build a Crane wheels that meets your needs.
Size of Wheels: _______________________
Typ of Track: __________________________
Wheel pressure: _____kn
Material:________________________________
What's the detail of the crane will be use the crane wheels? _______________
Detailed working conditions of the crane:___________________________________
Other requirements(if possible, please provide the drawing):_______________
