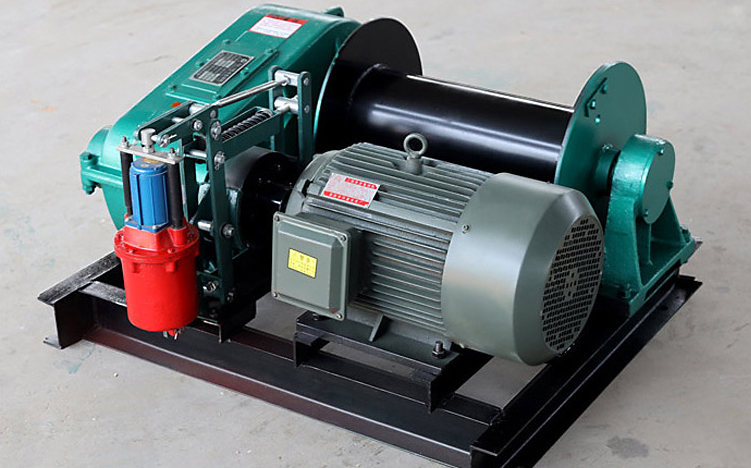

Electric winch is a kind of lifting equipment that drives the drum to rotate through an electric motor, mainly used for lifting or pulling heavy objects. It consists of motor, coupling, brake, gearbox and drum.
Electric winch can be used alone for horizontal traction, or it can be used with a crane as a lifting mechanism for vertical lifting. It is widely used in construction, water conservancy projects, forestry, mining, docks and other fields.
Depending on your actual use, there are different hoist for customers to choose from. We have an experienced team of crane engineers. We design the right hoist type for you, and provide a full range of after-sales services to enable your winch to operate quickly, stably and reliably.
Advantages
Easy to operate: The machine can be easily started and stopped by controlling the switch or button, which improves work efficiency
Large amount of rope winding: Suitable for occasions that require a large amount of rope winding
Easy to move: Compact structure, small size, light weight, easy to move and install
Good speed regulation performance: In particular, the empty hook can be quickly lowered, which is suitable for occasions that require micro-operation
Motor: The motor is equipped with high-quality lifting-specific motors of internationally renowned brands. Choose motors with different protection levels in different working environments.
Reducer: Adopting the structure of the sound absorption box, the large surface area of the box body and the large fan, the cylindrical gear and the spiral bevel gear all adopt advanced gear grinding technology. The noise is reduced, the reliability of operation is improved, and the transmission power is increased.
Brake: Generally equipped with hydraulic brakes, Dual hydraulic brakes are used in higher working duty. Large braking torque, rapid response and long life.
Wire rope drum: Our steel wire rope drums use high-quality materials and are accurately manufactured according to appropriate processing techniques to ensure stable quality. There are two types of wire rope drum: cast drum and steel plate drum. Small diameter drum, we use seamless steel pipes. Large diameter drum, we use the casting process. Advanced seamless welding technology ensures the quality of our product.
Hook: The hook is a very critical part of the hoisting machinery that bears almost all load weight. All hooks are produced in strict accordance with process requirements, high-quality materials, appropriate forging, machining and heat treatment.
Tailored Your Crane
It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility. If you require custom options, let us know and we will work with you to build a customized crane that meets your needs.
Horizontal traction or Vertical lifting?
Rated Load: _____kn
Rope Capacity: ____m
Rated speed:_______m/min
Power supply: __V _____Hz 3 Phase
What purpose will use the winch?________________________
Detailed working conditions of the winch:____________
