Description

HB electric chain hoist adopts high-strength alloy body, beautiful appearance, compact body, small size and light weight. It adopts two-stage gear transmission, and the high-speed stage is helical gear transmission, which has stable transmission, low noise and high part strength.

The main parts of HB electric chain hoist are made of high-alloy steel material, which has been heat treated many times and has the characteristics of high strength and good wear resistance. The hook is made of high-strength alloy steel, which has been strengthened and heat treated, and has high strength and will not break even if overloaded.

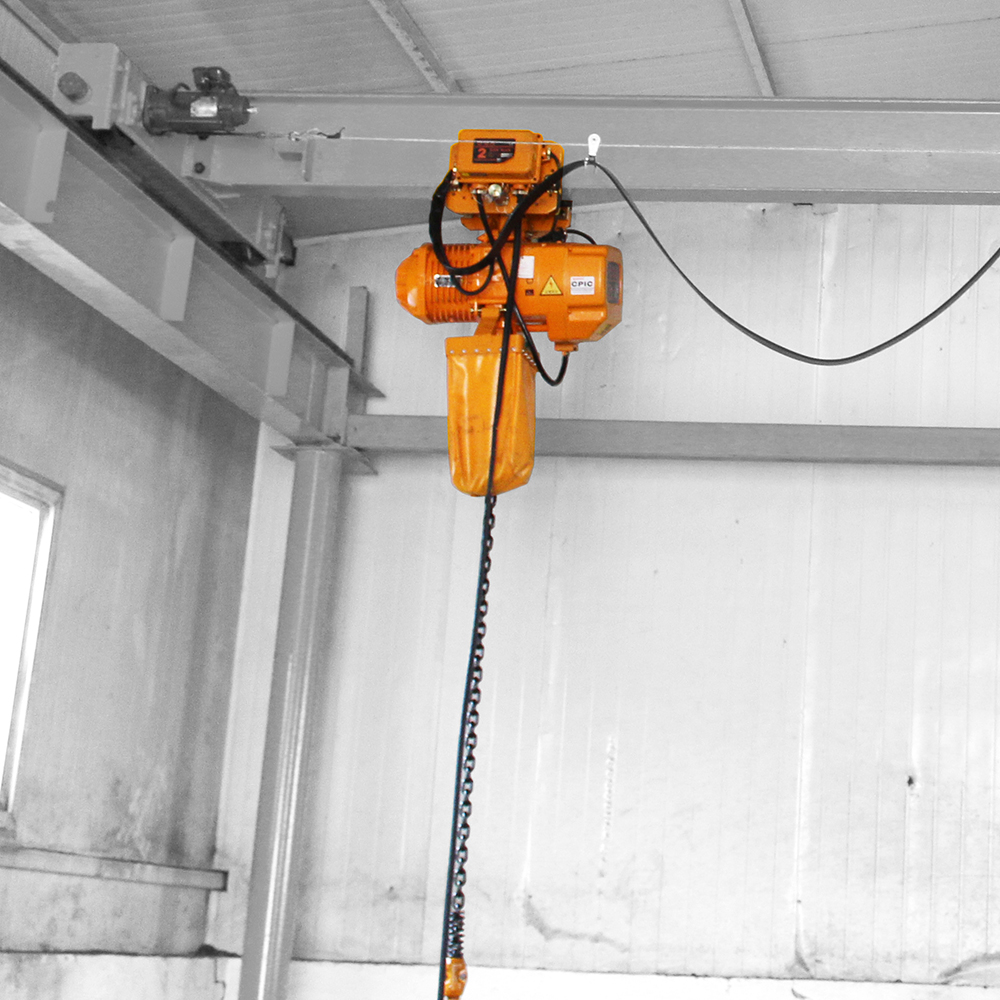

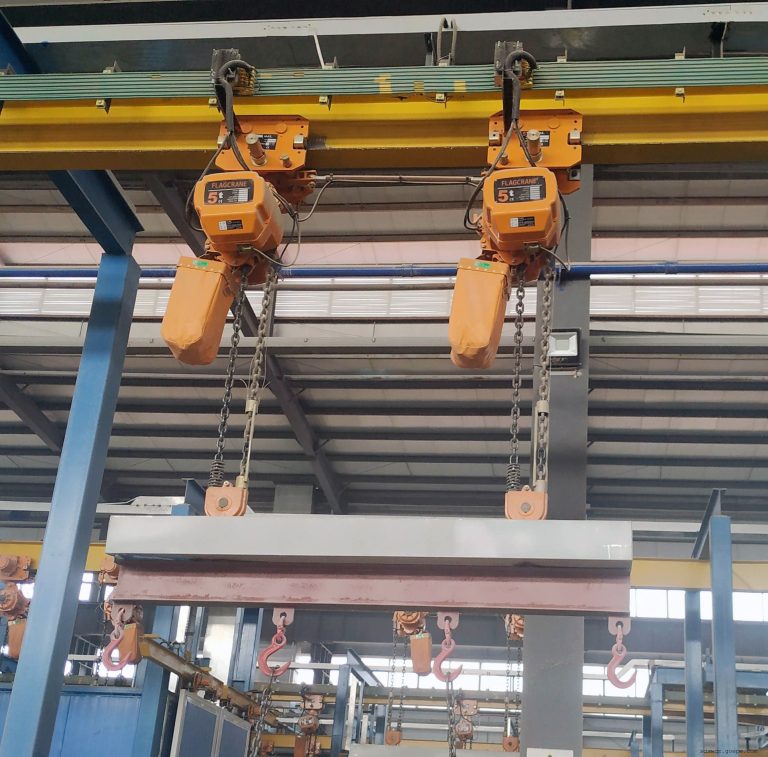

HB electric chain hoist is easy to operate and maintain. It can be installed on electric or manual single-beam cranes, double-beam cranes, cantilever cranes, gantry cranes and other cranes.

Depending on your actual use, there are different hoist for customers to choose from. We have an experienced team of crane engineers. We design the right hoist type for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Advantages

• The capacity of electric chain hoist ranges from 500kg to 30T, hook type or electric trolley type.
• All electric chain hoists have CE certification.
• Electric chain hoist, the shell is light but hard.
• The G80 chain is of good quality.
• The hook is hot forged with perfect strength and is not easy to break.
• Button, high-quality remote control.
• Electric chain hoist can be equipped with rain cover, stroke limiter and overload limiter.
• Choose single speed or double speed according to your needs.
• Three-phase electric chain hoist: voltage from 220V-690V, 50/60HZ, three-phase, we can also produce single-phase electric chain hoist.
• OEM is available.

Parameter

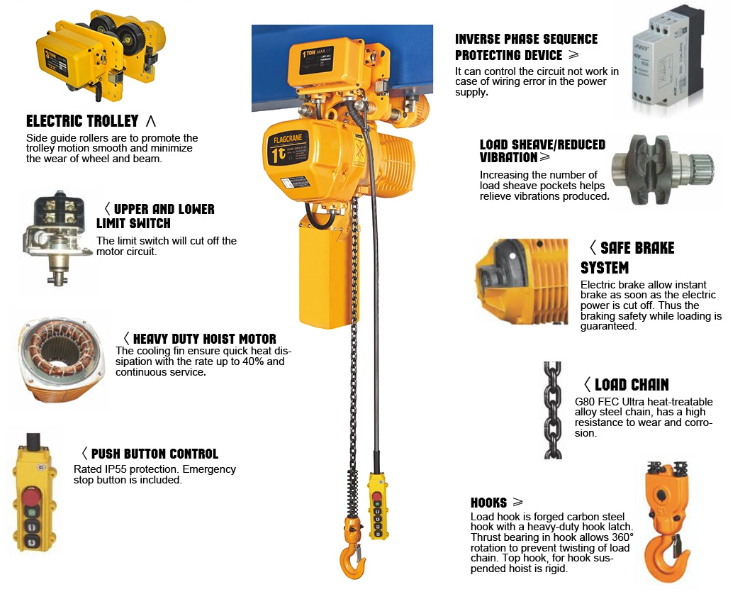

Features

1. Shell: The shell should be a lightweight aluminum alloy shell, light in weight but hard, suitable for use in harsh working environments with high heat dissipation and a fully sealed design, with an efficiency of up to 40%.
2. Limit switch: The limit switch device is installed in a position where the weight can be lifted and put down to make the motor stop automatically to prevent the chain from exceeding the safety range.
3. 24V / 36V equipment: It is used to prevent emergencies in the event of a leaking switch.
4. Bang magnetic brake: The newly designed magnetic generator, which is characterized by producing magnetism, can brake when the power is cut off, ensuring absolute safety during lifting.
5. Hook: After hot forging, it is light and excellent, not easy to break, it can be rotated 360 degrees when hanging, with safety tongue to ensure safe operation
6. Chain: The chain should be imported FEC G80 super heat-treated aluminum alloy chain.

Tailored Your Crane

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a customized hoist that meets your needs.

1. Fixed or Traveling
2. Lifting capacity: _____ ton
3. Lifting height:______m
4. Power supply: _____V _____Hz 3 Phase
5. What purpose will use the hoist?________________________
6. Detailed working conditions of the Hoist:_______________
7. Other requirements:______________________________

Hoist can be equipped with different spreaders to adapt to more working conditions. For example, the following spreaders can be customized:

• Crane C Hook for coil
• Crane Electromagnet
• Grab Bucket
• Lifting Beam
• Crane Lifting Tong
• Container Spreader
• Special Hook（Electric rotation, casting, insulation, etc.）
