Description

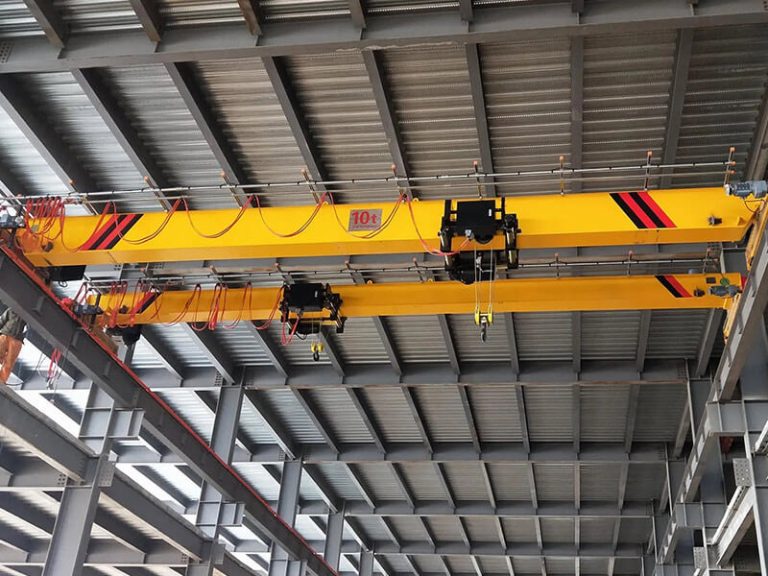

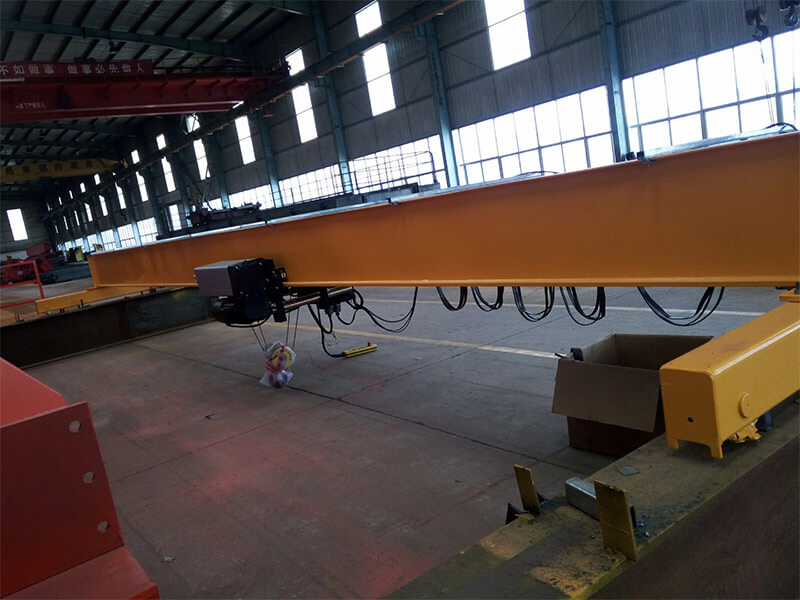

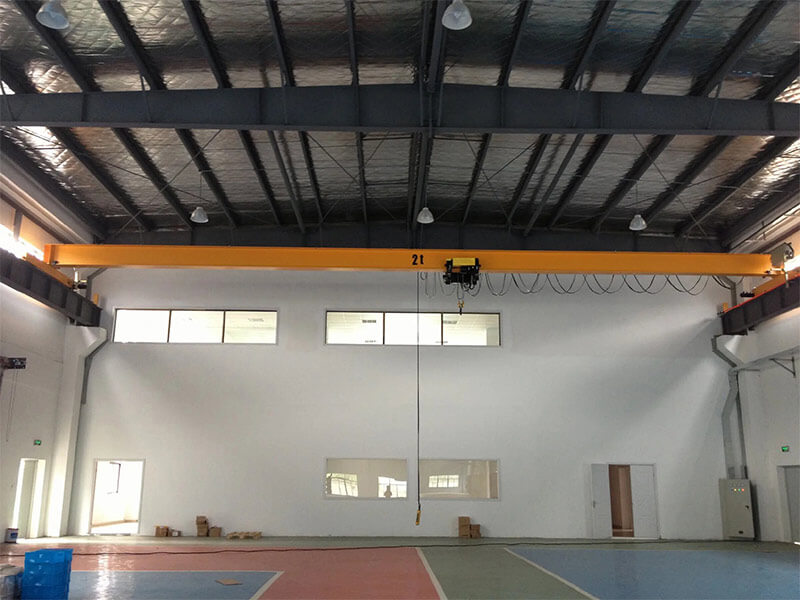

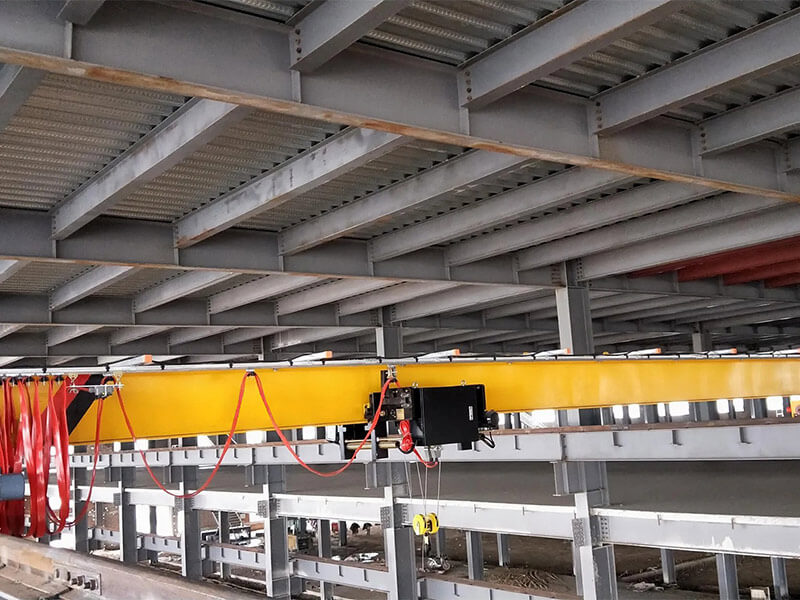

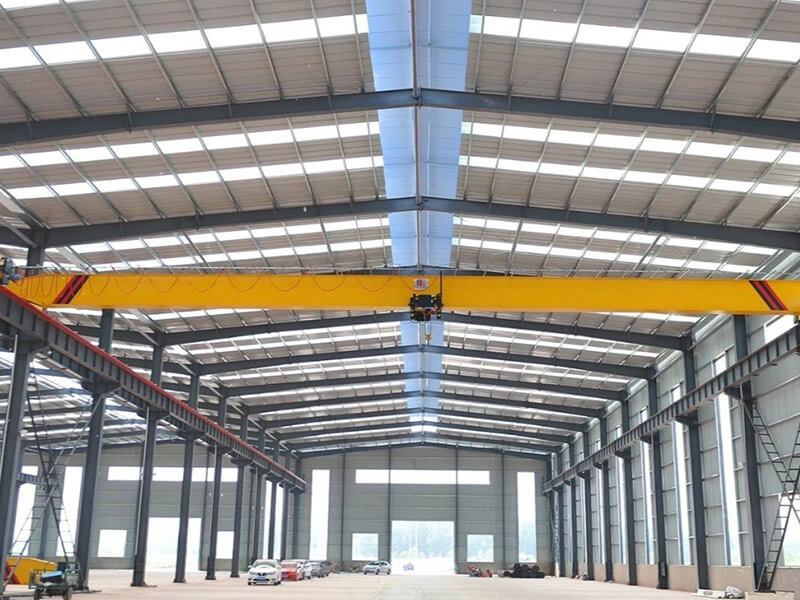

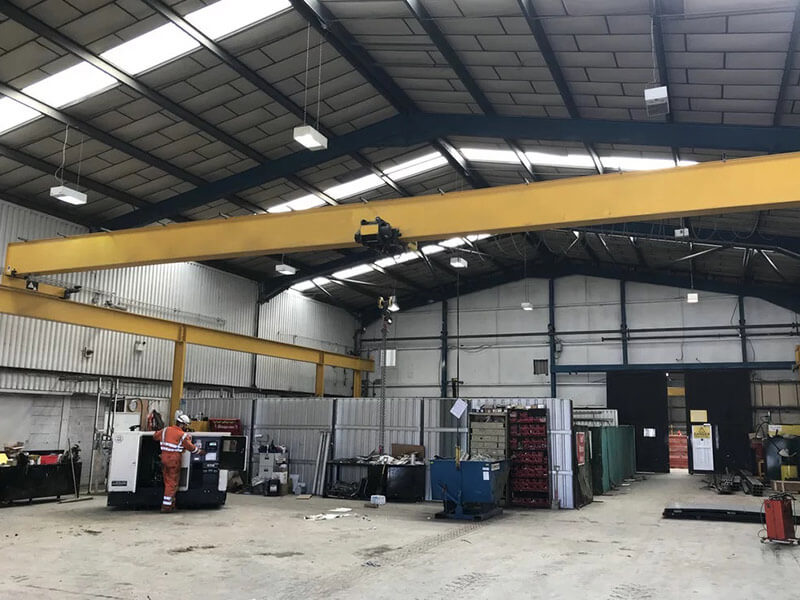

HD European type single girder overhead crane is based on European standards. The working level is FEM 2m (ISO M5). Standard capacity from 1 ton to 20 tons. HD overhead crane is very suitable for light industrial applications. Such as equipment installation and maintenance in power stations or other workplaces, or workshops and warehouses with infrequent work.

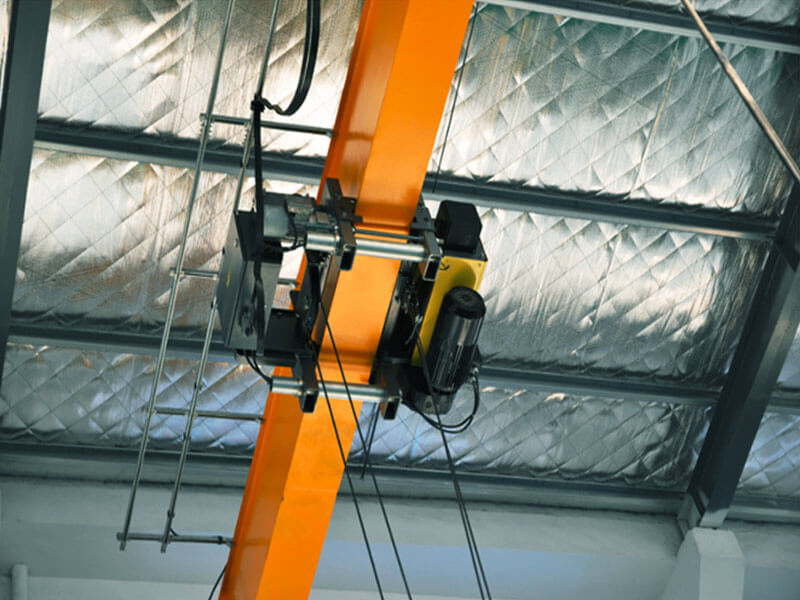

HD European type single girder overhead crane adopts ND European electric hoist.

HD FEM single-beam bridge crane uses a three-in-one reducer (hardened gear reducer, variable frequency brake motor) as the driving mechanism, so the structure is more compact. This design makes the blind area of the bridge crane smaller, thus covering a larger working area. In addition, the brake pads of the three-in-one reducer motor are maintenance-free for life, which can save the later maintenance costs.

Depending on your actual use, there are different overhead cranes for customers to choose from. We have an experienced team of crane engineers. We design the right bridge crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Parameter

Advantages

• Low production costs.
• Easy installation, services, and maintenance.
• Usually the most cost-effective choice for light to medium duty cranes.
• Suitable for buildings with limited headroom.
• Light weight can reduce the cost of supporting structures and minimize the load on existing building structures.

Features

1. Shot-blasting Sa2.5 for complete girder after welding.
2. High protection class IP55, F class, 40% ED.
3. High quality automatic welding and NDT inspection.
4. DIN/FEM standard deflection.
5. Excellent driving properties, stepless control, smoothly moving.
6. Compacted gear motor driving, stepless control, harden gear, safety disc brake IP55.
7. Whole length CNC cutting for complete web plate.
8. High tension bolts mounting between girder and legs.
9. All hoist and crane movements are independent and can be run simultaneously.

Tailored Your Crane

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a factory overhead crane that meets your needs.

1. Lifting capacity: _____ ton
2. Lifting height: ______ m
3. Span: _______m
4. Power supply: _____V _____Hz 3 Phase
5. Crane travelling length: _______m
6. New factory? or existing factory?_____________________
7. What purpose will use the crane? ___________________
8. Detailed working conditions of the crane:____________
9. Other requirements: __________________________________

Overhead crane can be equipped with different spreaders to adapt to more working conditions. For example, the following spreaders can be customized:

• Crane C Hook for coil
• Crane Electromagnet
• Grab Bucket
• Lifting Beam
• Crane Lifting Tong
• Container Spreader
• Special Hook（Electric rotation, casting, insulation, etc.）
