Description

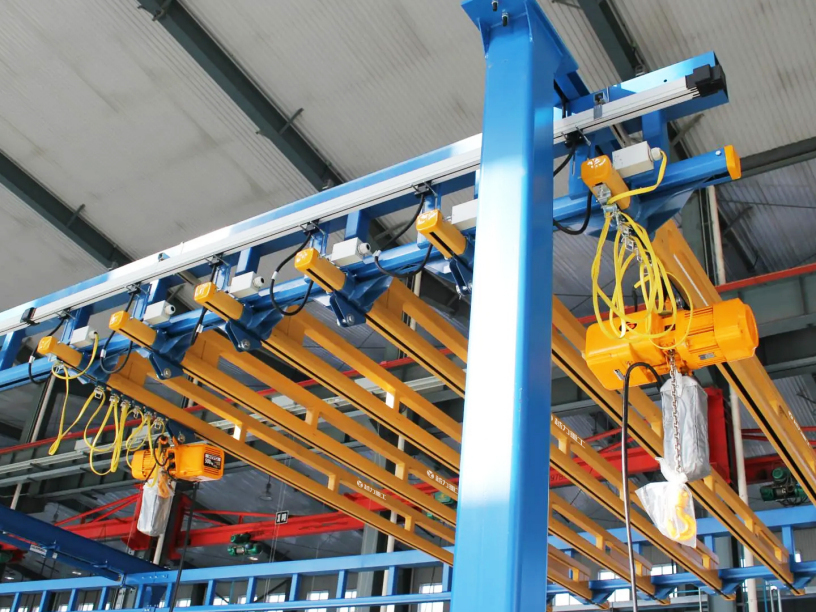

Rigid KBK-G, a subclass of the KBK crane system, is a modular and configurable lifting solution designed for heavy-duty, high-stability material handling in industrial environments. Below are its key features:

‌I. Structure and Components

‌Track System‌

Utilizes fixed tracks made of high-strength steel, supported by steel frameworks to ensure high load-bearing capacity and structural stability.

‌II. Key Differences from Flexible KBK

‌Connection Method

Employs sleeve-type rigid connections, offering superior stability compared to the snap-fit/bolt connections used in flexible KBK systems.

‌Application Scenarios

Flexible KBK: Ideal for layouts requiring frequent adjustments.
Rigid KBK-G: Optimized for heavy-load operations and environments demanding long-term stability.

KBK-G Rigid Workstation Crane achieves a balance of high load, high precision and high reliability in the heavy industry through the combination of rigid connection and modular design. It is a technical optimization solution between traditional beam cranes and KBK flexible suspension cranes.

Advantages

1. The closed track design can effectively prevent dust from entering, thereby reducing the wear of the trolley wheels and extending the service life.
2. The 2° bevel design can effectively ensure that the trolley is in the center of the track and minimize the sliding resistance.
3. The track is cold-rolled in one step, without welding, and has high strength.
4. Light weight effectively reduces the pressure on the structural support and greatly reduces the cost.
5. Multi-series track selection allows you to choose the most suitable product to minimize waste and save costs.
6. Basic track: can be used in workshops where I-beams have been laid, or in workstations with limited space.

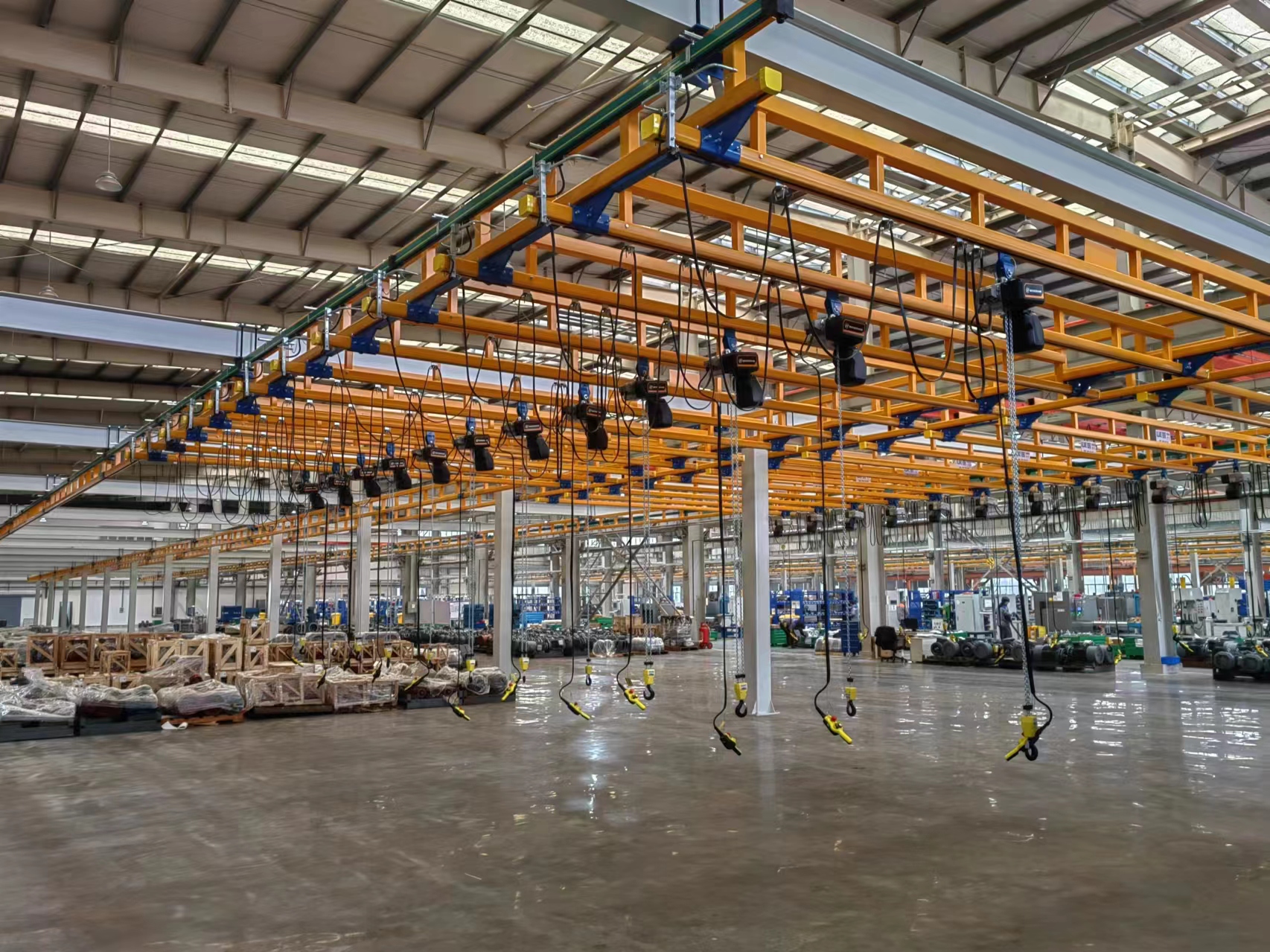

7. Truss type: After special design and processing, the truss track structure has been strengthened on the basis of the basic type, which can adapt to application conditions with larger loads and larger spans. The use of hanging points has been greatly reduced, making the workshop layout more simple and beautiful, while reducing costs.

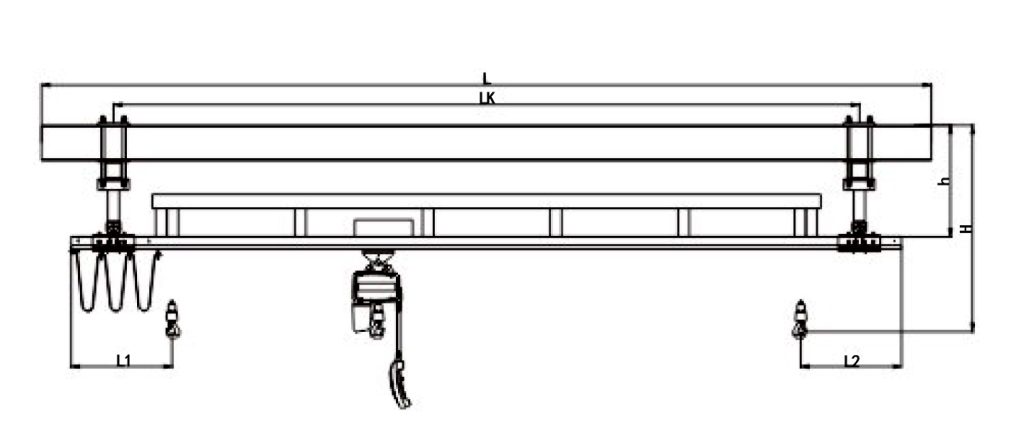

Parameter

Features

• Maximum load 2000 kg
• Maximum span up to 10 meters
• Modular design with good scalability
• Cost-effective
• Easy to install with various support frames
• Various installation methods
• Connectivity with future or existing suspension conveyor systems
• Telescopic boom crane
• Manual or electric operation

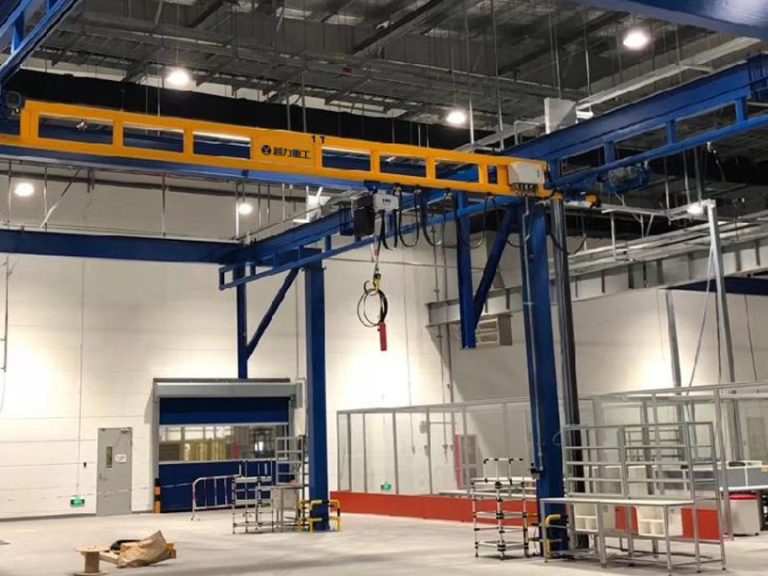

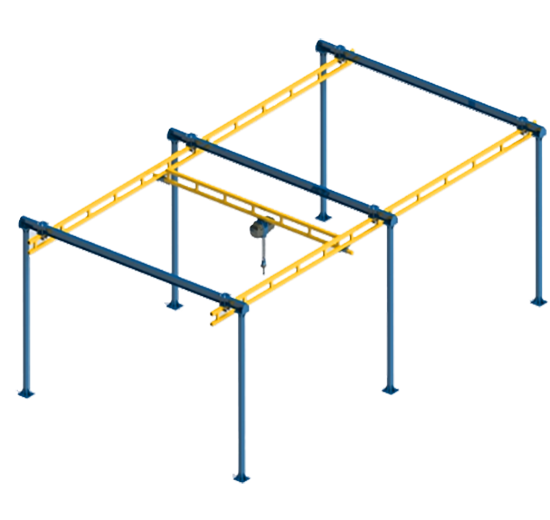

• Free-standing ground or ceiling-mounted crane systems
• Product components can be gold or silver plated

Tailored Your Crane

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a factory overhead crane that meets your needs.

1. Lifting capacity: _____ ton
2. Lifting height:______m
3. Span: _______ m
4. Power supply: _____V _____Hz 3 Phase
5. Crane travelling length: _______ m
6. New factory? or existing factory?_______________________
7. What purpose will use the crane?______________________
8. Detailed working conditions of the crane:_____________
9. Other requirements:___________________________________
