KBK-R flexible modular workstation lifting system is mainly used in material handling, light industrial assembly lines and modern production conveyor lines. Its lifting capacity usually does not exceed 2 tons. It is mainly composed of standard components such as rails, suspension devices, trolleys and lifting devices, which can be freely assembled according to actual needs.

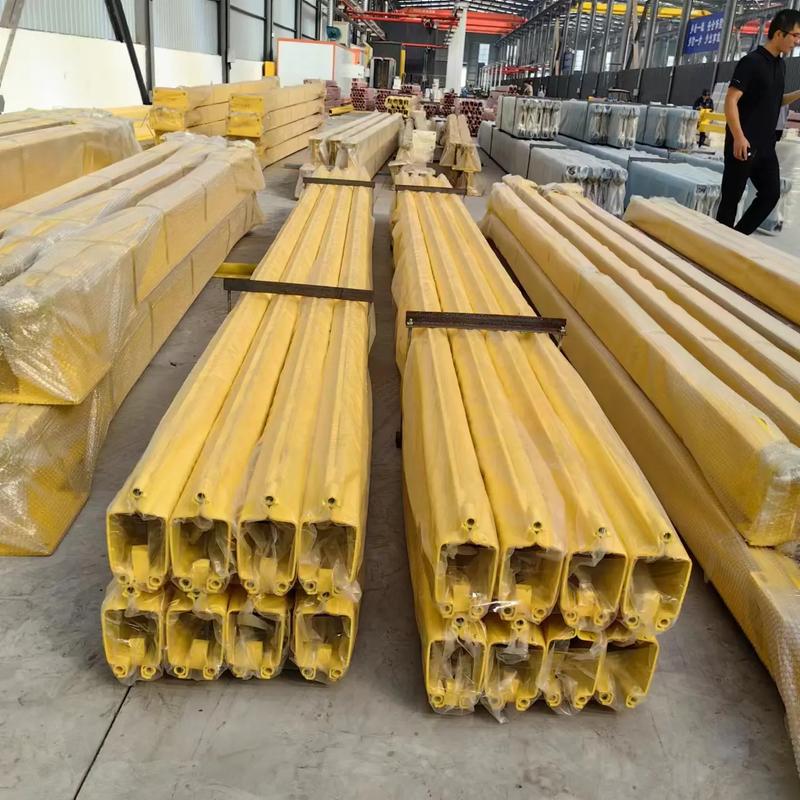

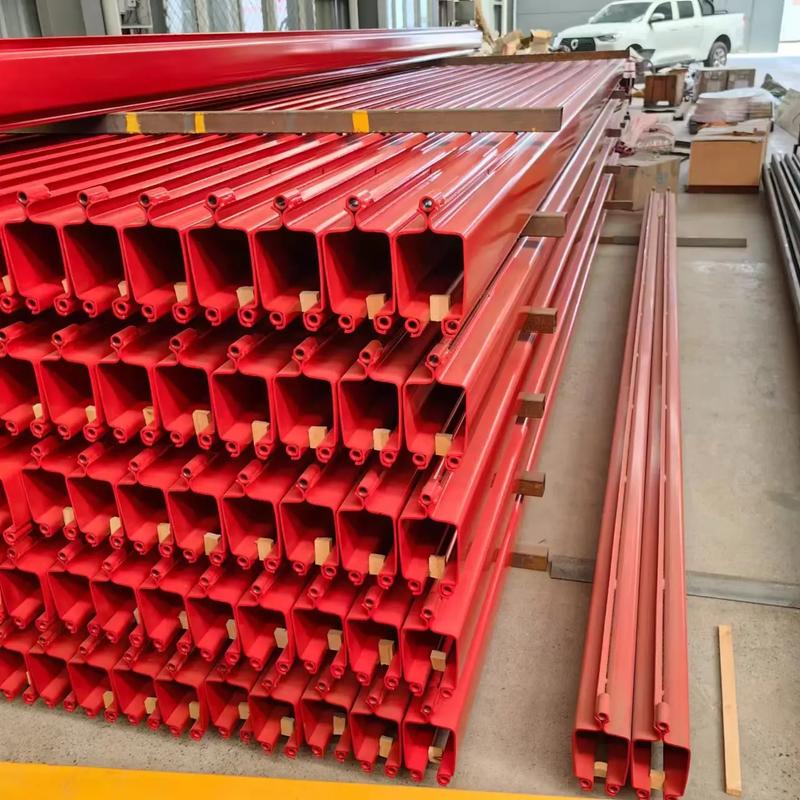

The track design of the KBK-R flexible modular workstation lifting system is unique. It adopts an Ω-shaped cross-section and is symmetrically connected by two left and right pieces, rather than cold-rolled in one piece. This design allows the KBK track to flexibly adapt to the needs of different work scenarios, such as lifting systems such as single track, multi-track, curved track or circular track.

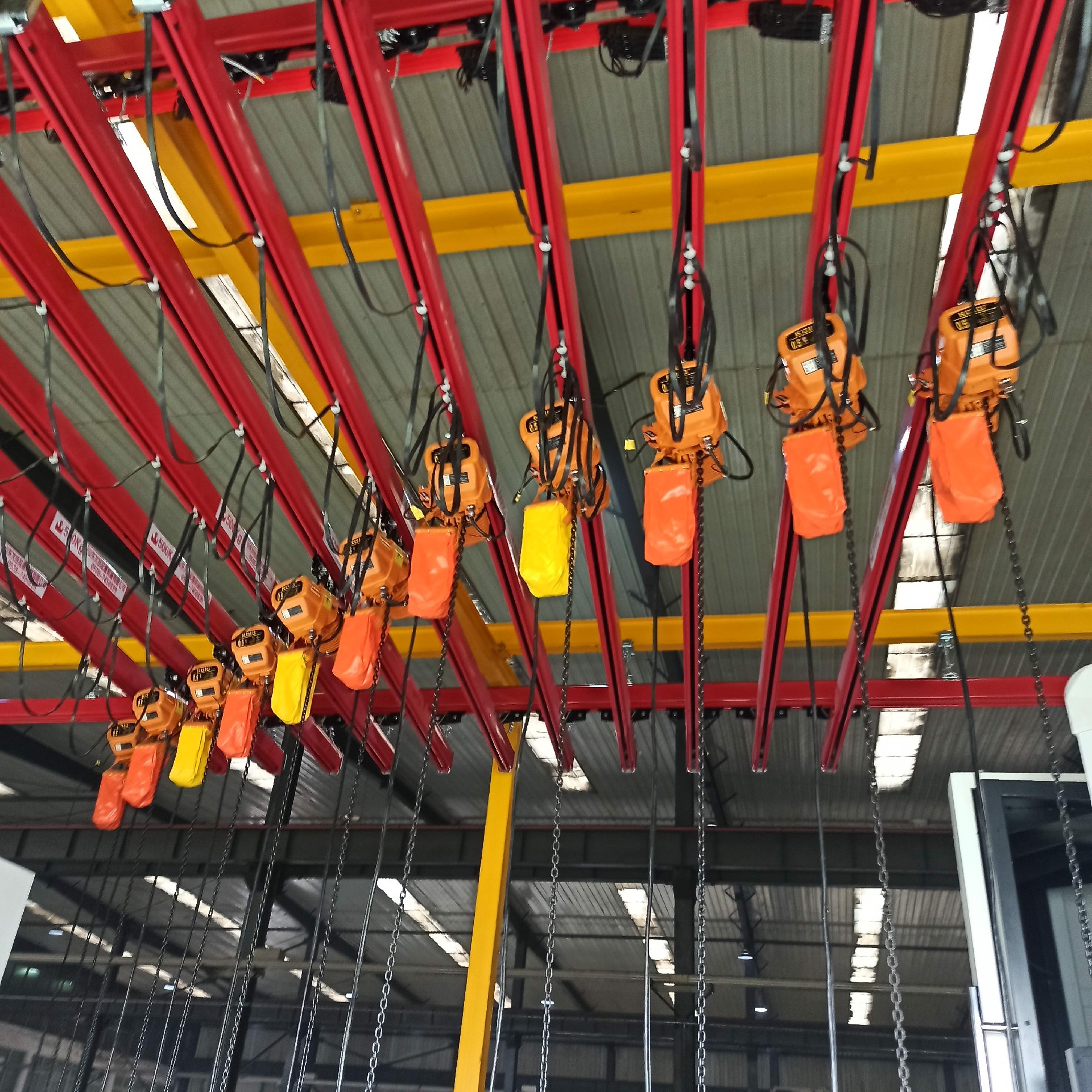

Due to the structural characteristics of the KBK-R flexible modular workstation lifting system, it is usually equipped with a chain hoist as a suspension device, which is suitable for work occasions with small tonnage and low lifting height. The lifting speed is generally in the range of 0.15~30 meters/minute, and the working level is M3.
The design flexibility of the KBK-R flexible modular workstation lifting system makes it an ideal choice for modern production lines, which can meet various complex work needs and improve production efficiency.
Cost-Efficient Factory Design
Smart Equipment Use
Precision & Efficiency
Quiet & Low-Maintenance
Overall Savings
| Crane type: | KBK-R |
| Capacity of KBK-R kbk crane system: | 50kg, 250kg, 1000kg, 1500kg, 2000kg |
| Span of KBK-R kbk crane system: | 0.7-15m |
| Lifting height | 3-10m |
| Working class | A1-A3 |
| Power source | Customized is acceptable |
Durable Track Design
Heavy-Duty Performance
Budget-Friendly
It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a factory crane that meets your needs.
