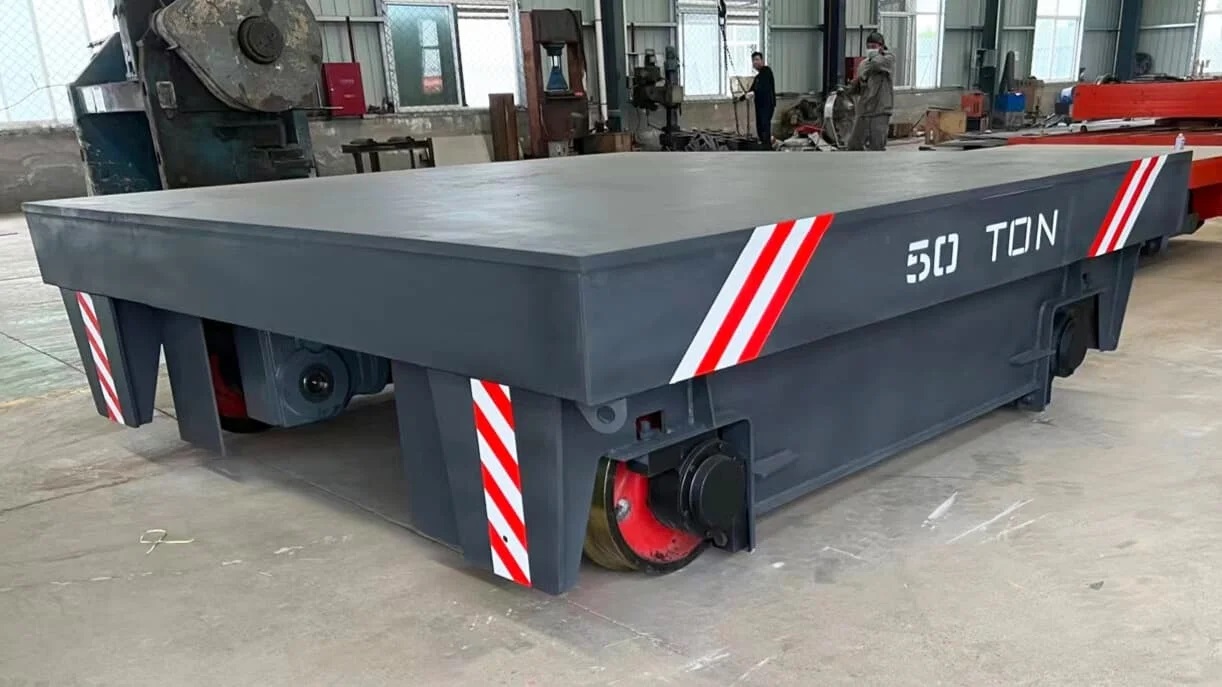

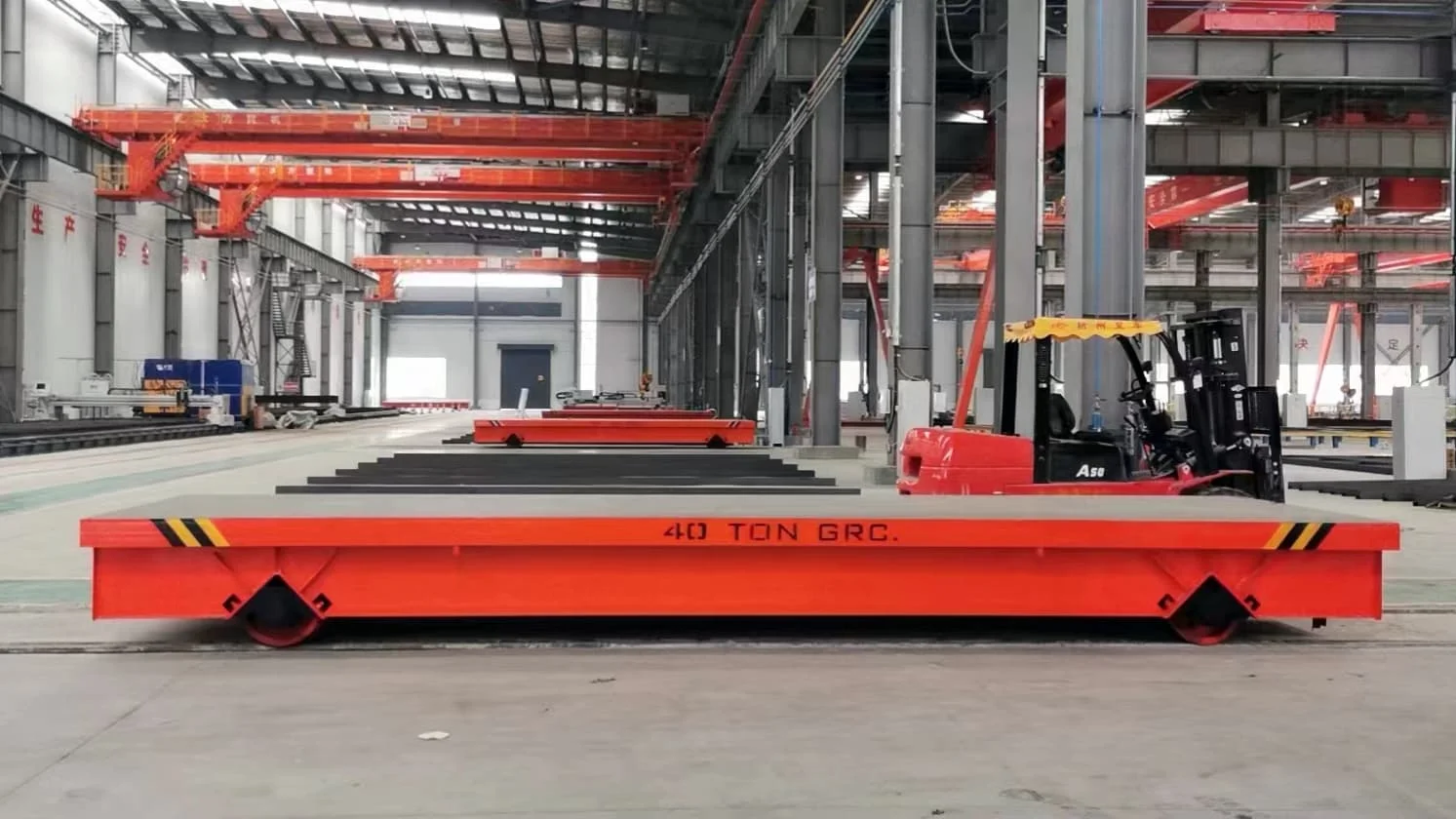

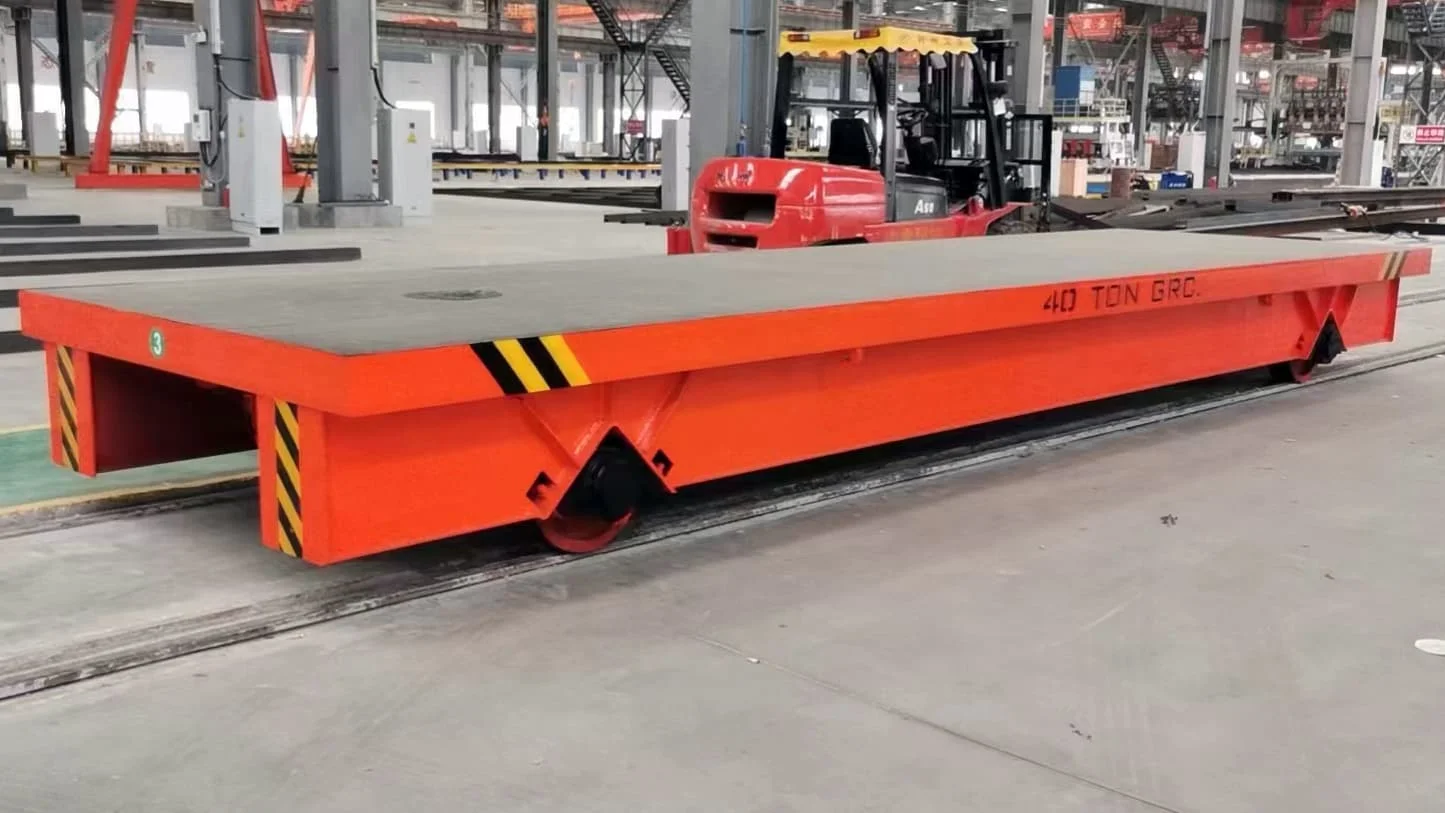

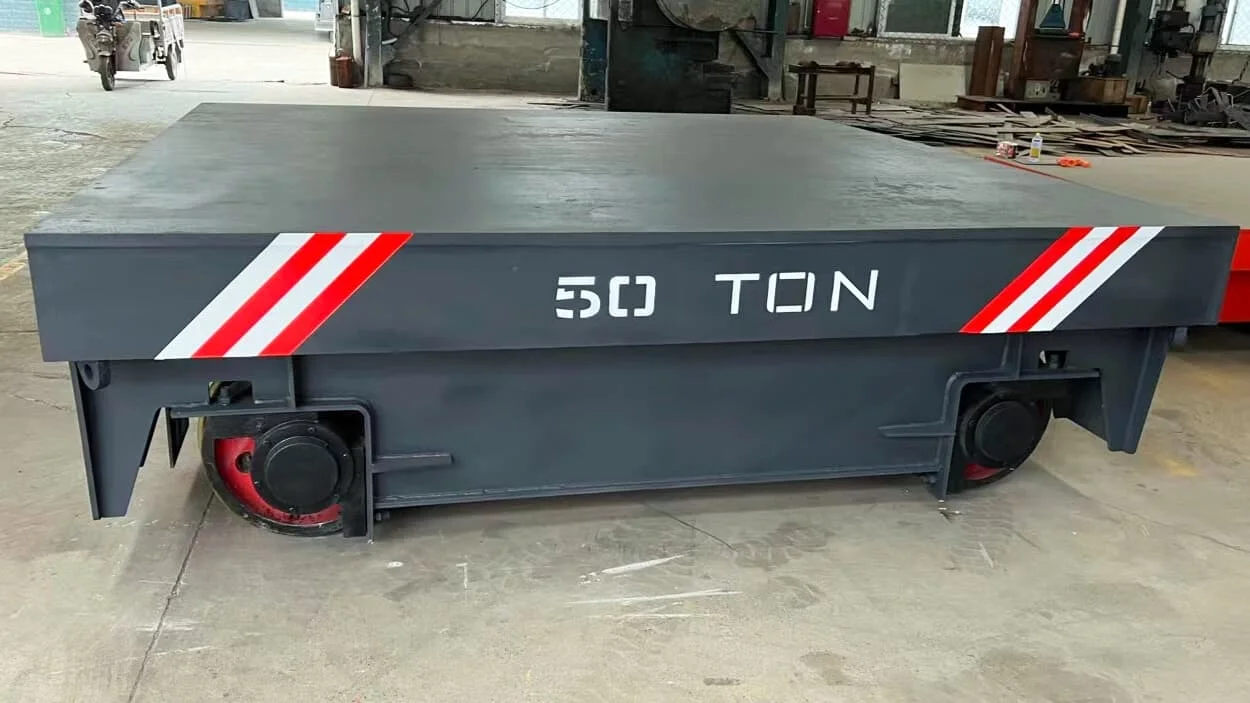

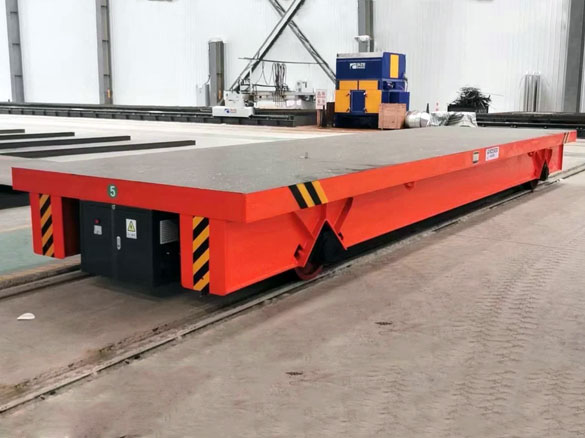

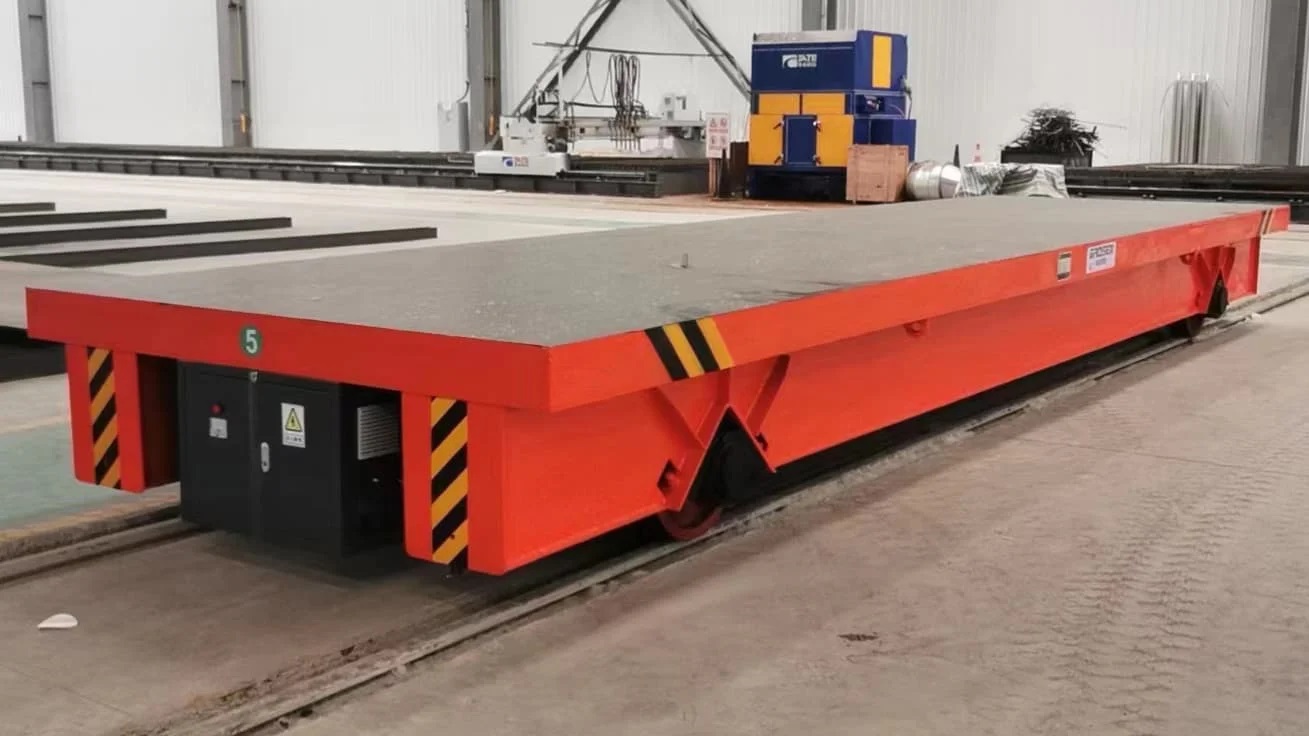

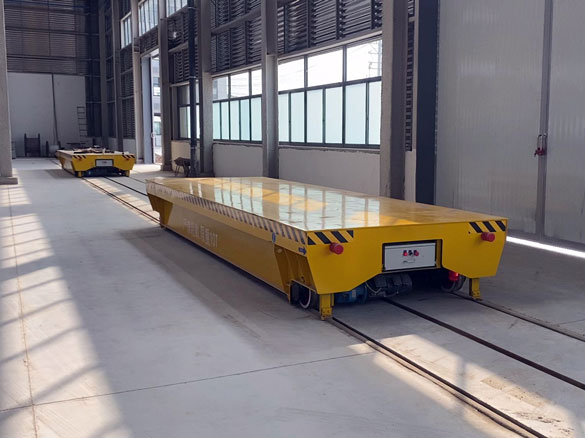

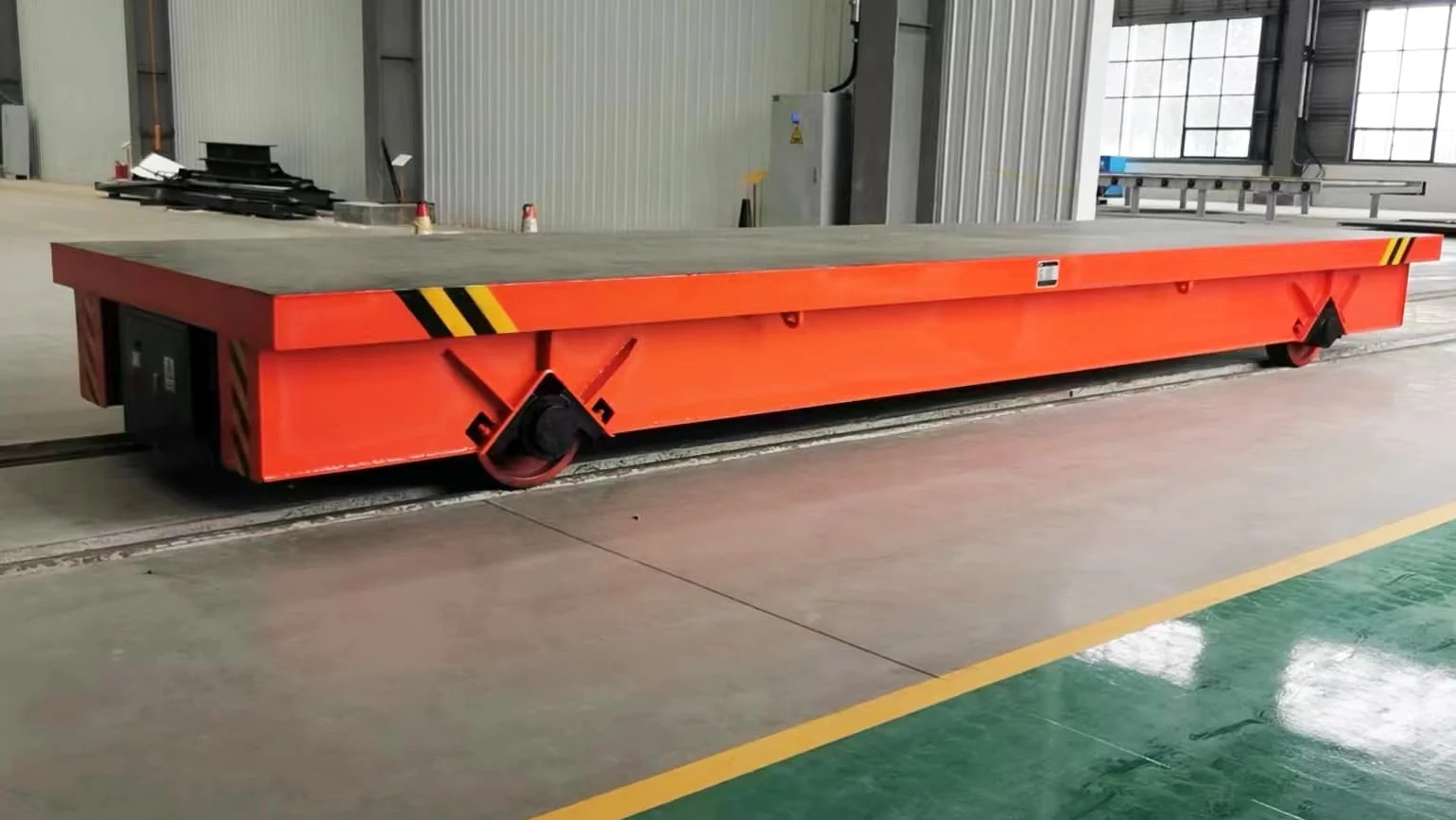

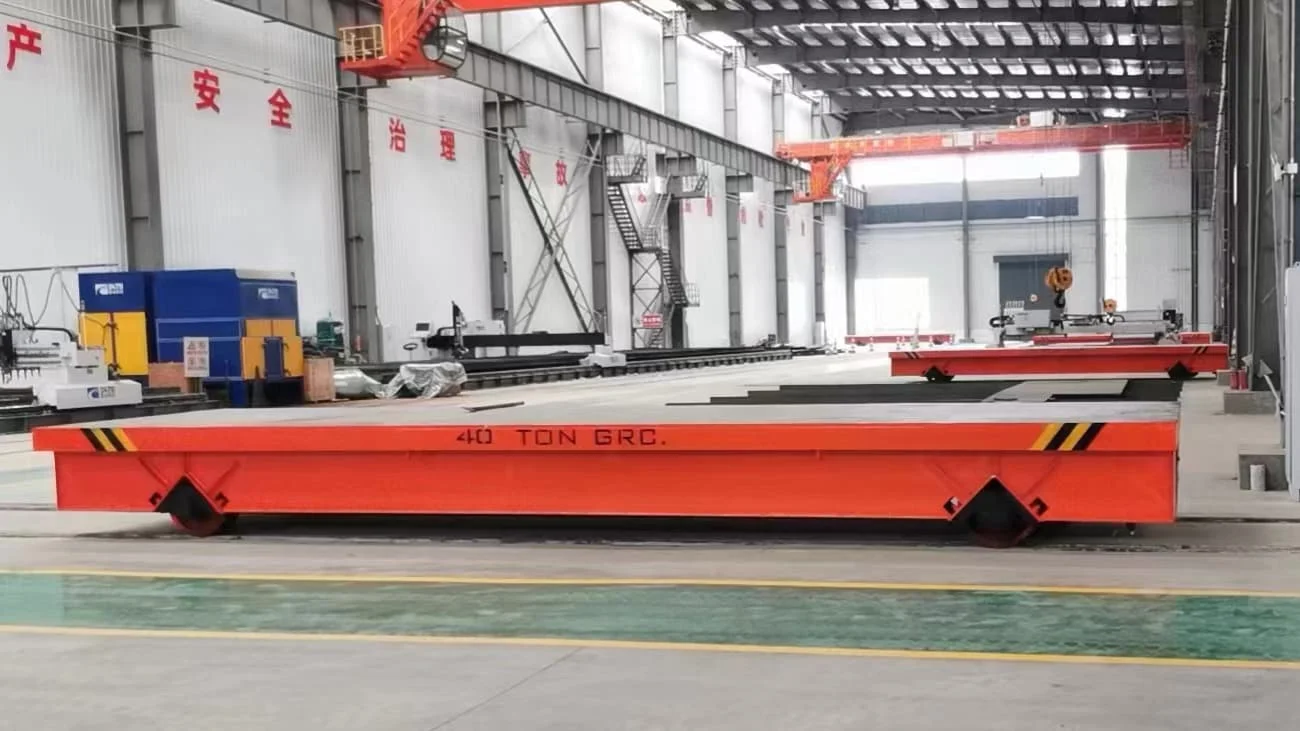

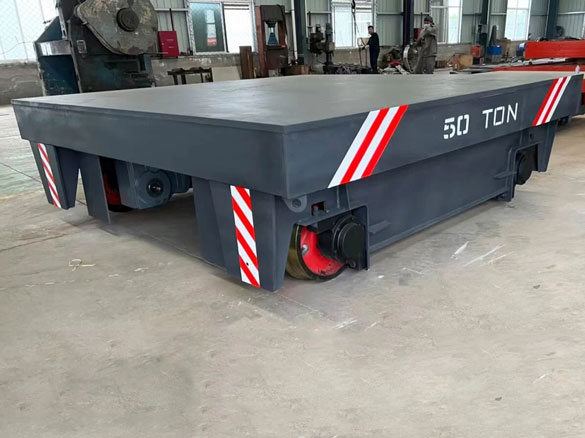

KPDS Series Rail Powered Transfer Cart

Description

KPDS series rail powered transfer cart can be used on S-shaped tracks, curved tracks and high temperature occasions; hydraulic or mechanical lifting systems and other devices are allowed to be installed on the transfer cart platform; automatic remote control can be realized.

The main configuration of the battery transfer cart: frame, motor, reducer, wheels, transformer, control box, etc.

Depending on your actual use, there are different transfer carts for customers to choose from. We have an experienced team of crane engineers. We design the right cart system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Advantages

High safety: Low-voltage track-powered electric transfer carts usually use a voltage below 36V, which is much lower than the human safety voltage, greatly reducing the risk of electric shock and improving the safety of operation. Due to the use of low-voltage power supply, components such as tracks and wheels need to be insulated, further ensuring the safety of the operating environment.
High flexibility: This type of transfer cart can turn with the track, and can run in a straight line or in a circle. By appropriately increasing the number of ground step-down transformers, the running length is not limited.
Good economy: Compared with high-voltage power supply or fuel-driven vehicles, low-voltage track-powered electric transfer carts have lower operating costs, electricity costs, maintenance and operating costs.
Strong load capacity: The load capacity can be customized according to the transfer cart model and design to meet different needs from small tonnage to large load carts. Because it runs on the track, the vehicle operation is more stable and reliable, reducing the safety hazards caused by excessive load.
‌Strong adaptability‌: Suitable for a variety of working environments, including indoor, outdoor, high temperature, low temperature, humid and other conditions. Special tracks can be laid according to actual needs to improve handling efficiency‌.
‌Environmental protection and energy saving‌: It adopts electric drive, zero emissions, low noise, meets environmental protection requirements, and has low energy consumption, which helps to reduce operating costs‌.
Low maintenance cost‌: The main components are mature and reliable, with low failure rate. Under normal use, only regular inspection and maintenance are required to maintain good working condition‌.

Parameter

Capacity (t)	2	5	10	16	20	25	30	40	50	63	80	100	150
Length (mm)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
Width (mm)	1500	2000	2000	2000	2200	2200	2200	2400	2400	2400	2600	2800	3000
Height (mm)	150	500	500	550	550	600	600	650	650	700	800	900	1200
Wheel base (mm)	1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail inside distance (mm)	1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel diameter (mm)	Φ270	Φ300	Φ300	Φ350	Φ350	Φ400	Φ400	Φ500	Φ500	Φ600	Φ600	Φ600 Heavry	Φ600 Heavry
Number of wheels (piece)	4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance (mm)	50	50	50	50	50	50	50	50	50	75	75	75	75
Running speed (m/min)	0~25	0~25	0~25	0~20	0~20	0~20	0~20	0~20	0~20	0~20	0~20	0~20	0~18
Motor power (kw)	1	1.2	1.6	2	2.2	3	3.5	4	5	6.3	8	10	15
Transformer power (KVA)	3	5	5	6.8	6.8	6.8	10	10	10	20	20	30	30
Transformer quantity (piece)	1	1	1	1	1	1	1	1	1	1	1	1	1
Running distance (m)	80	80	80	80	80	80	80	60	50	50	50	50	50
Maximum wheel pressure with full load (KN)	14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Reference weight (t)	2.8	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8
Recommended rail models	P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100

Please note:

Load capacity, platform size, and track inner distance can be designed and manufactured according to customer needs;
Optional wireless remote control device (Chinese or international brand).
Optional automatic stop and limit limit device when encountering people.
Optional track automatic power-off function.
Optional inverter stepless speed regulation function.
Optional domestic and imported electrical appliances.
Optional high temperature resistance requirements.

1 Sets Double Girder Overhead Crane for Ivory Coast

Industry：Power Generation Industry
Product：QDX95/10t-18.635m
Country：Ivory Coast

1 Sets Single Girder Overhead Crane for Angola

Industry：Mining Industry
Product：HD16t-5.55m
Country：Angola

15 Sets Electric Chain Hoist for Spain

Industry：Engineering Industry
Product：5t-7m
Country：Spain

2 Sets Single Girder Overhead Crane for Trinidad and Tobago

Industry：Mechanical Testing
Product：HD10t-14.02m
Country：Trinidad and Tobago

Features

KPDS series rail powered transfer cart adopts box beam structure, which has the following advantages:

Strong bearing capacity
No deformation
Flexibility
Unrestricted running distance, etc.

But KPDS series rail powered transfer cart has high requirements for track laying (insulated track is required), and it’s suitable for occasions with large load, high frequency of use, and medium and long distance transportation. When the running distance is long, multiple transformers are required for power supply.

Tailored Your Crane

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom carts that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a transfer carts that meets your needs.

Load capacity: ____ton
Whether cart is self-propelled: Yes or No ?
Table size: (L)____mm * (W)____mm * (H)____mm
Working occasion: on Rail or On Cement Floor ?
Travelling length: ________m
What’s the using frequency of cart? _____round trip per__________ ?
What purpose will use the cart?____________________
Detailed working conditions of the cart:____________
Other requirements:______________________________
