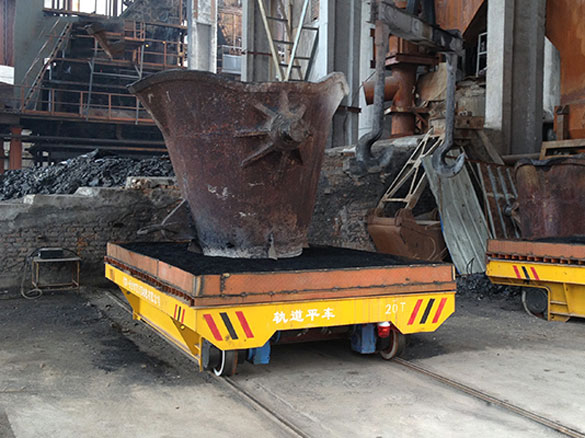

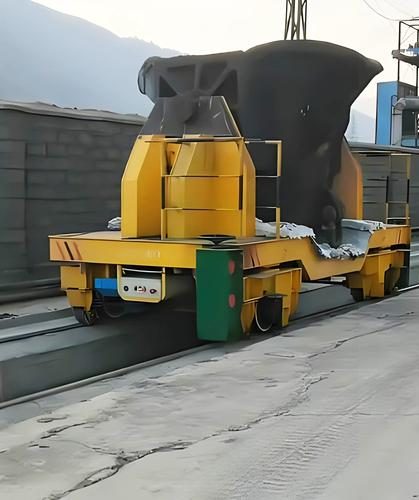

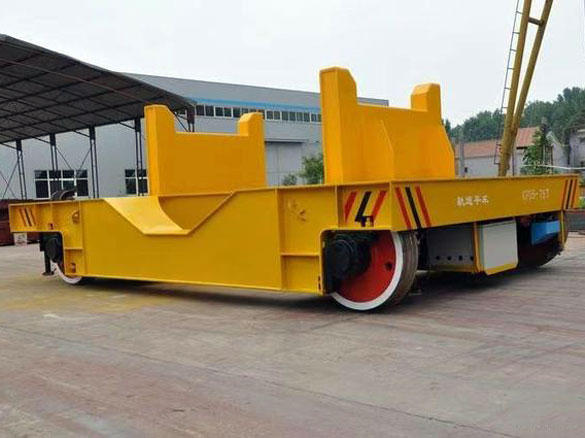

The ‌Electric Ladle Transfer Cart‌ is a purpose-built rail vehicle optimized for safe and efficient molten steel logistics in steelmaking workshops. Its key benefits include:

‌1. Extreme Heat Resistance & Structural Integrity

• High-Temperature Protection‌: Reinforced steel frame with ceramic fiber insulation shields critical components (motors, electronics) from thermal radiation above 1000°C.
• Anti-Deformation Design‌: Thickened steel plates and recessed/cutout platforms prevent frame warping or tipping under heavy ladle loads.

‌2. Heavy-Duty Safety & Redundancy

• High Load Capacity‌: Standard models handle ≥30 tons, with custom versions supporting 100+ tons for oversized ladles.
• Dual-Drive Redundancy‌: Two independent motor systems ensure uninterrupted operation if one fails.
• Soft Start/Stop Technology‌: Minimizes molten steel splashing via controlled acceleration/deceleration.

‌3. Smart Automation & Precision

• Remote/PLC Control‌: Wireless remote or automated PLC operation keeps workers away from hazardous zones.
• Speed Adjustment & Positioning‌: Adjustable speed (0-25 m/min) enables precise ladle alignment for casting or refining.

‌4. Low Maintenance & Durability

• Modular Components‌: Standardized, heat-resistant parts (motors, sensors) allow quick replacements, reducing maintenance costs by 30%.
• All-Weather Adaptability‌: Anti-tip guards, rail clamps, and corrosion-resistant materials ensure reliability in harsh environments.

Parameter

Capacity (t)	2	5	10	16	20	25	30	40	50	63	80	100	150
Length (mm)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
Width (mm)	1500	2000	2000	2000	2200	2200	2200	2400	2400	2400	2600	2800	3000
Height (mm)	150	500	500	550	550	600	600	650	650	700	800	900	1200
Wheel base (mm)	1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail inside distance (mm)	1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel diameter (mm)	Φ270	Φ300	Φ300	Φ350	Φ350	Φ400	Φ400	Φ500	Φ500	Φ600	Φ600	Φ600 Heavry	Φ600 Heavry
Number of wheels (piece)	4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance (mm)	50	50	50	50	50	50	50	50	50	75	75	75	75
Running speed (m/min)	25	25	25	20	20	20	20	20	20	20	20	20	18
Motor power (kw)	0.8	1.5	1.5	2.2	2.5	3	4	5.5	5.5	7.5	7.5	11	15
Running distance (m)	25	25	25	25	30	30	50	50	50	50	50	50	50
Maximum wheel pressure with full load (KN)	14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Reference weight (t)	2.5	3.5	4	5.2	5.6	6.2	6.5	7.3	7.8	10.5	12.3	14.1	26.2
Recommended rail models	P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100

Features

The main functions of the ladle transfer carts include:

‌1. High-Temperature Resistance

• Constructed with heat-resistant steel frames and ceramic fiber insulation layers to withstand intense thermal radiation.
• Anti-spill design (e.g., recessed ladle seating) and rail clamps enhance stability during transport.

‌2. Redundant Drive Systems

• Equipped with explosion-proof motors or hydraulic drives for precise positioning and tilting operations.
• Dual-drive redundancy ensures uninterrupted operation even if one system fails.

‌3. Smart Control & Safety

• PLC automation and remote-control capabilities enable unmanned operation.
• Adjustable speed (0-25 m/min), anti-collision bars, and soft start/stop mechanisms minimize molten steel sloshing risks.

4. Flexible Power Options

• Supports low-voltage rails, cable reels, or battery power for adaptability to diverse plant layouts.

‌5. Heavy-Duty Performance

• Load capacity: 2-300 tons, with custom models for non-standard ladle shapes or rail configurations.

6.‌ Cost-Efficient Maintenance‌

• Modular components and quick-disassembly structures reduce downtime, cutting maintenance costs by 30% vs. traditional equipment.

Tailored Your Crane

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom carts that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a transfer carts that meets your needs.

1. Load capacity: ____ton
2. Whether cart is self-propelled: Yes or No ?
3. Table size: (L)____mm * (W)____mm * (H)____mm
4. Working occasion: on Rail or On Cement Floor ?
5. Travelling length: ________m
6. What’s the using frequency of cart? _____round trip per__________ ?
7. What purpose will use the cart?____________________
8. Detailed working conditions of the cart:____________
9. Other requirements:______________________________
