Description

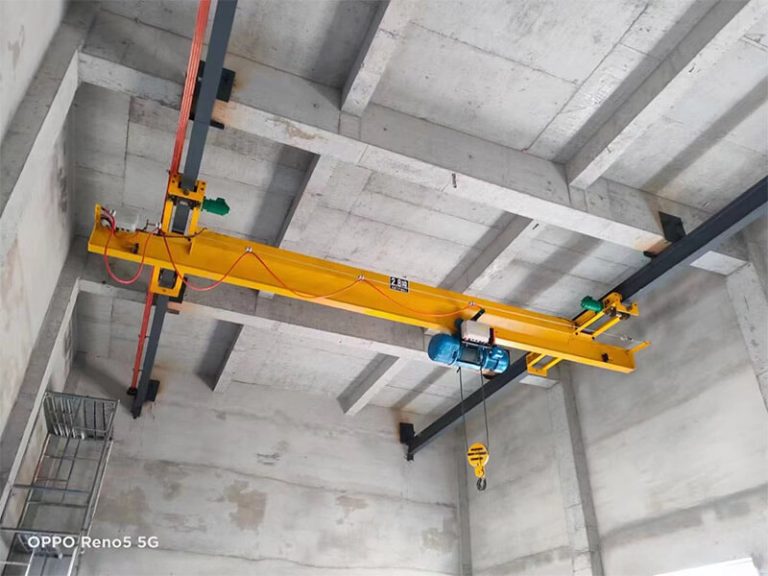

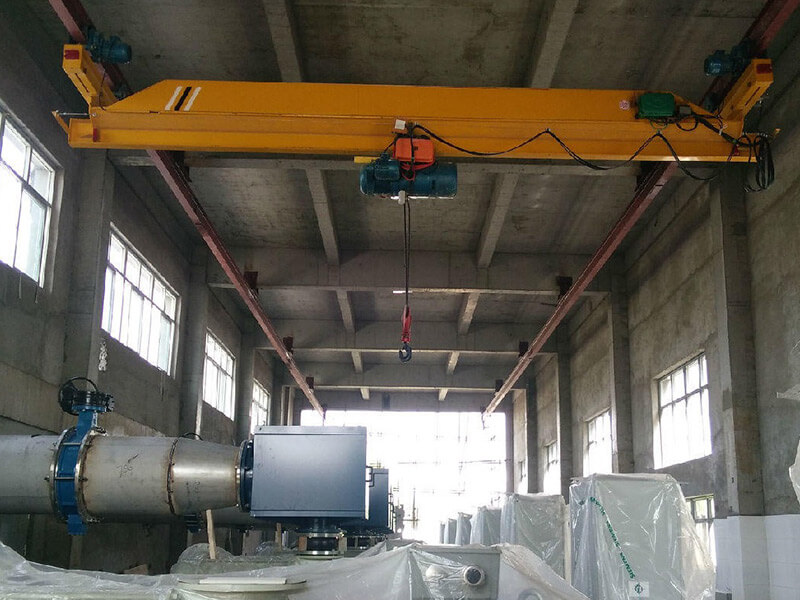

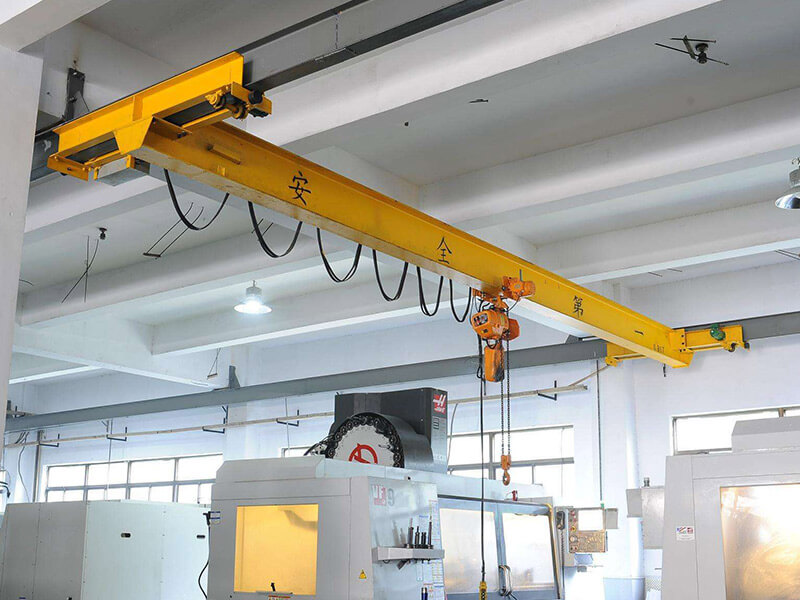

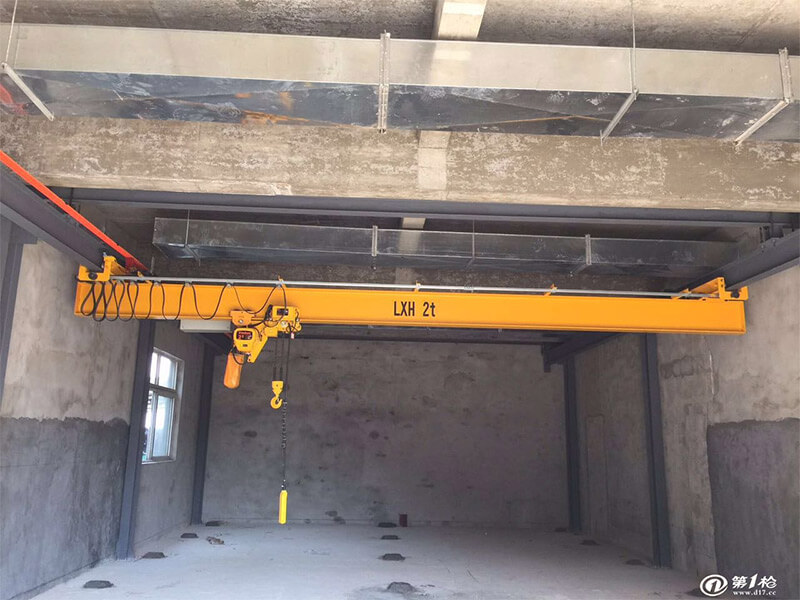

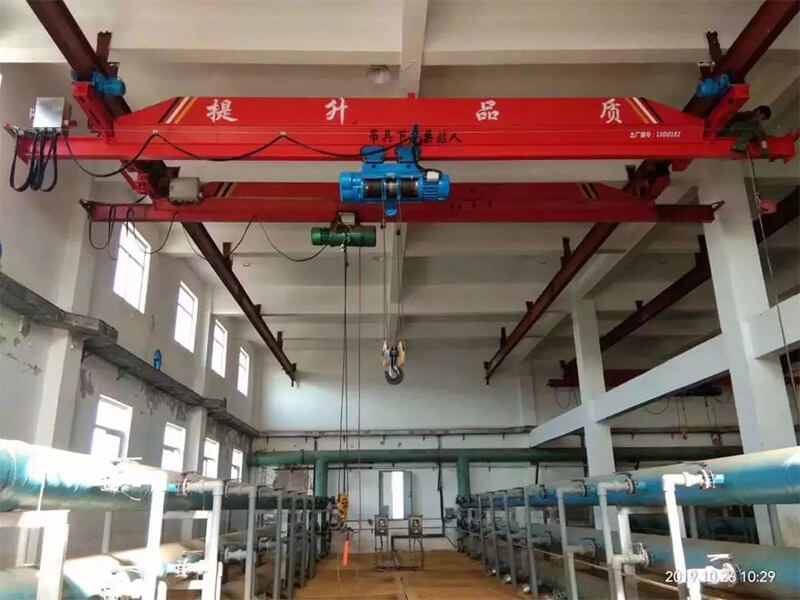

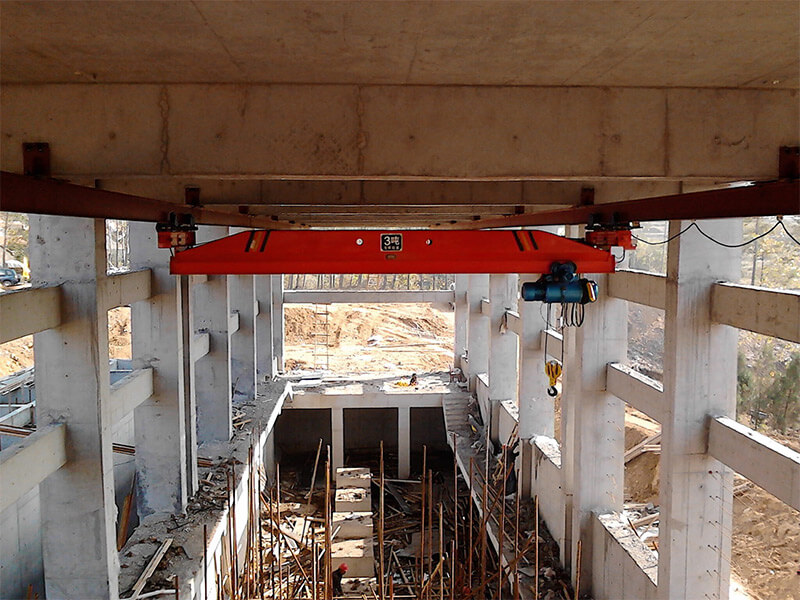

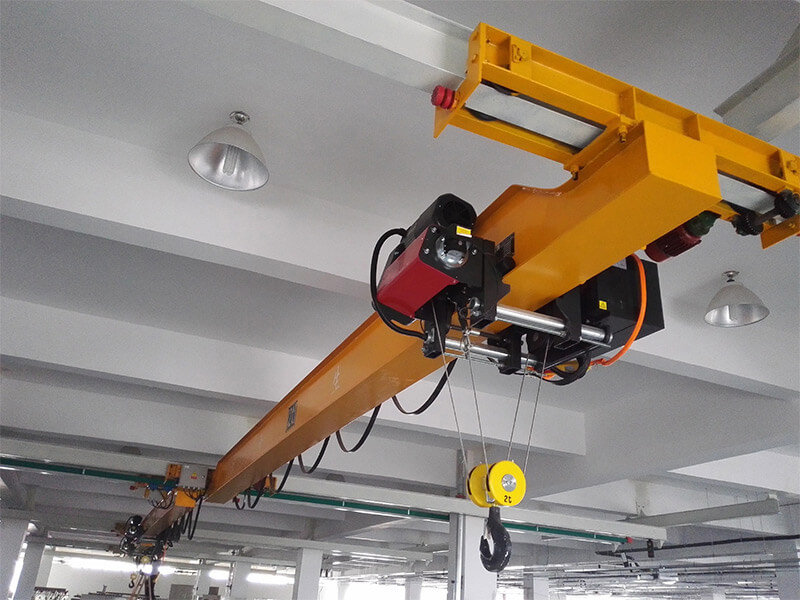

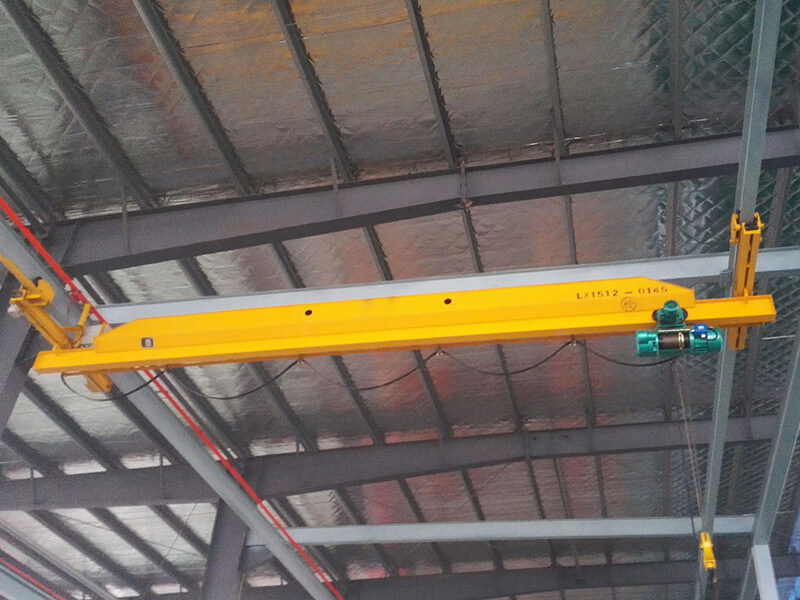

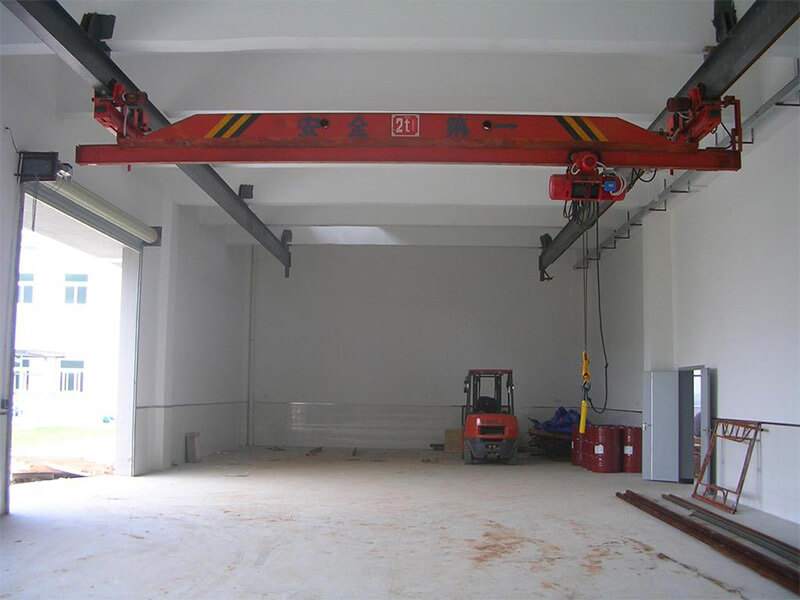

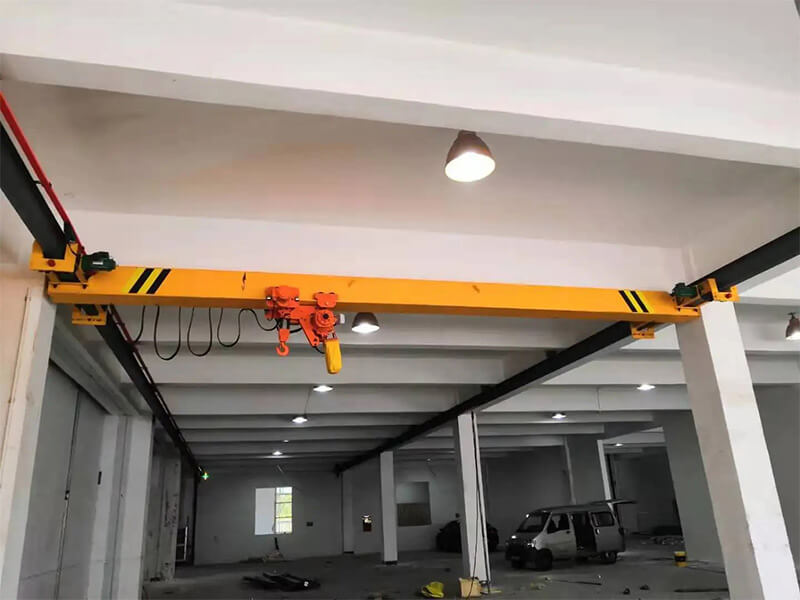

LX Single beam suspension crane is also called under running crane/single girder underslung crane/under running bridge crane. It is often used in factories without load-bearing columns but with load-bearing roofs.

The commonly used lifting capacity of single-beam suspension cranes is 1 to 10 tons, the span is 3 to 15 meters, and the operating speed is 20m/min and 30m/min.

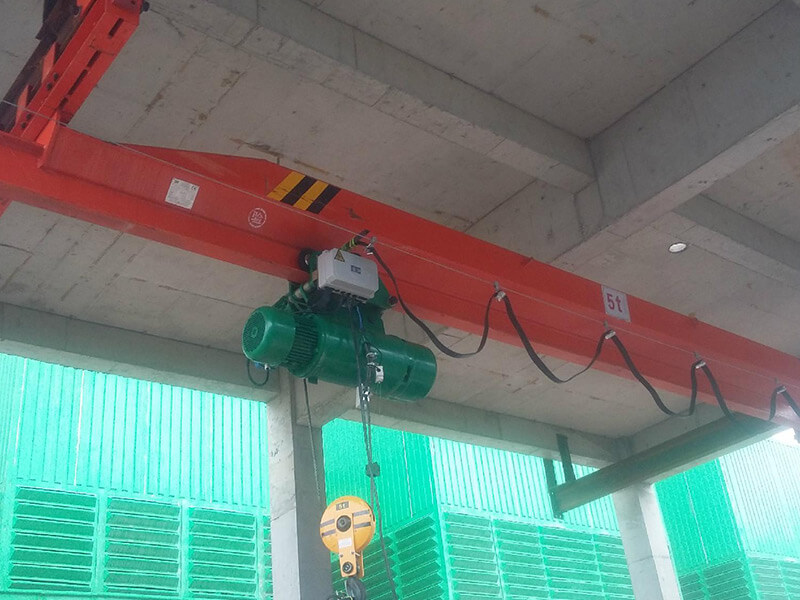

LX Single beam suspension crane is designed according to international standards. It is a light material handling equipment, single beam running on the suspended track, usually equipped with CD or MD electric hoist.

Depending on your actual use, there are different overhead cranes for customers to choose from. We have an experienced team of crane engineers. We design the right bridge crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Parameter

Advantages & Disadvantages

• Flexible operation, low maintenance cost
• Compact structure, good rigidity
• High safety and reliability
• High quality, high cost performance.
• High space utilization
• Wide application range
• Smooth operation, effective braking and long service life.

Features

1. All hoists and cranes operate independently or simultaneously.
2. Ground control mode: pendant control, remote control.
3. The mobile power supply of the electric hoist is composed of flat cable or special cable.
4. Electric hoist type: wire rope hoist or chain hoist, which can be selected according to requirements.
5. The main beam is composed of I-beam and channel steel, which is used to lift small tonnage loads. The other type is composed of U-shaped steel and I-beam, which is used to lift large tonnage loads.

Tailored Your Crane

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a factory overhead crane that meets your needs.

1. Lifting capacity: _____ ton
2. Lifting height: ______ m
3. Span: _______m
4. Power supply: _____V _____Hz 3 Phase
5. Crane travelling length: _______m
6. New factory? or existing factory?_____________________
7. What purpose will use the crane? ___________________
8. Detailed working conditions of the crane:____________
9. Other requirements: __________________________________

Overhead crane can be equipped with different spreaders to adapt to more working conditions. For example, the following spreaders can be customized:

• Crane C Hook for coil
• Crane Electromagnet
• Grab Bucket
• Lifting Beam
• Crane Lifting Tong
• Container Spreader
• Special Hook（Electric rotation, casting, insulation, etc.）
