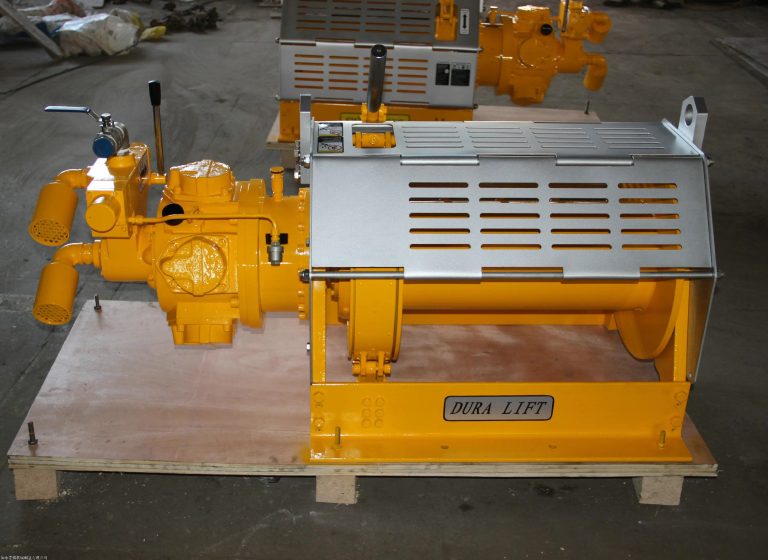

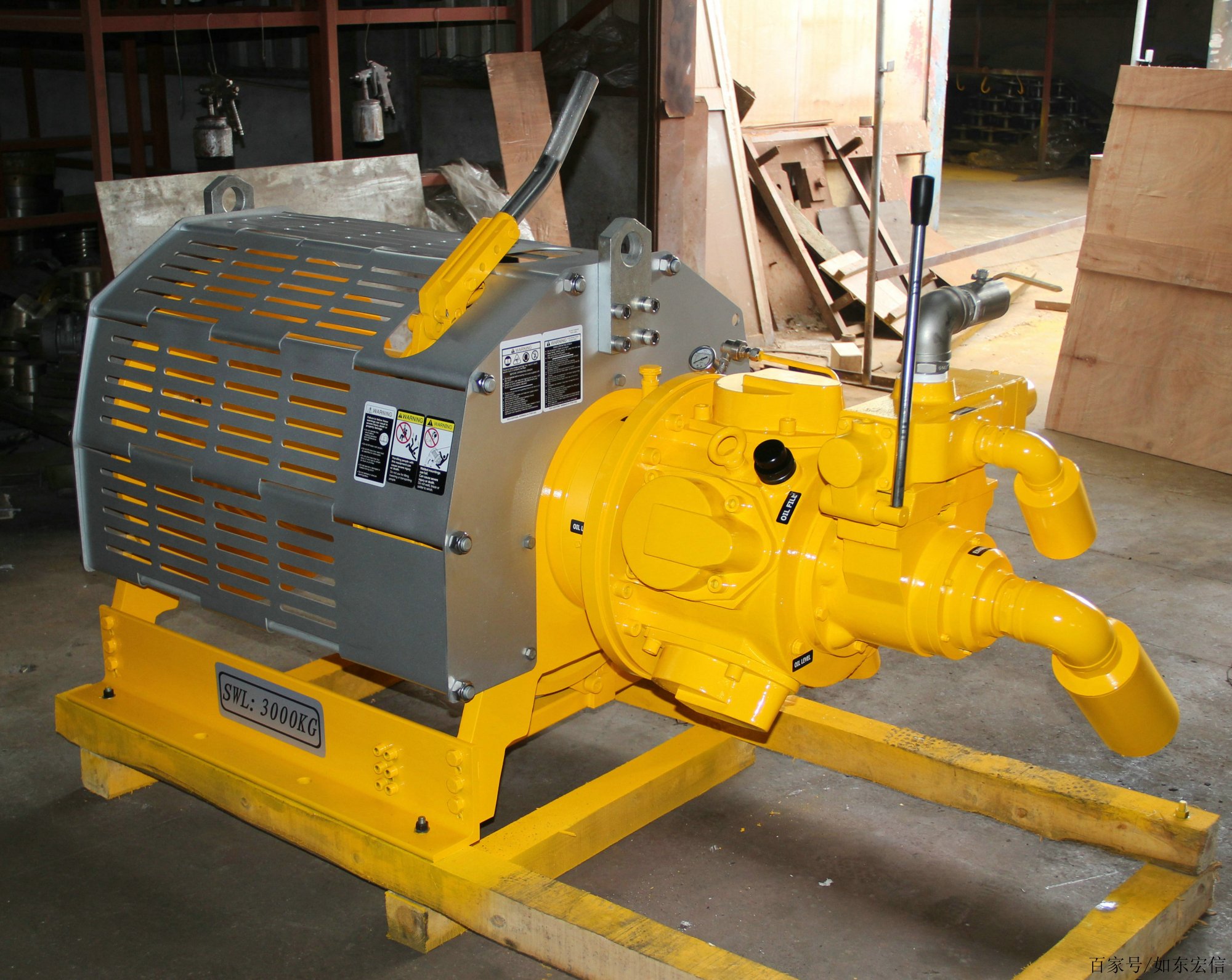

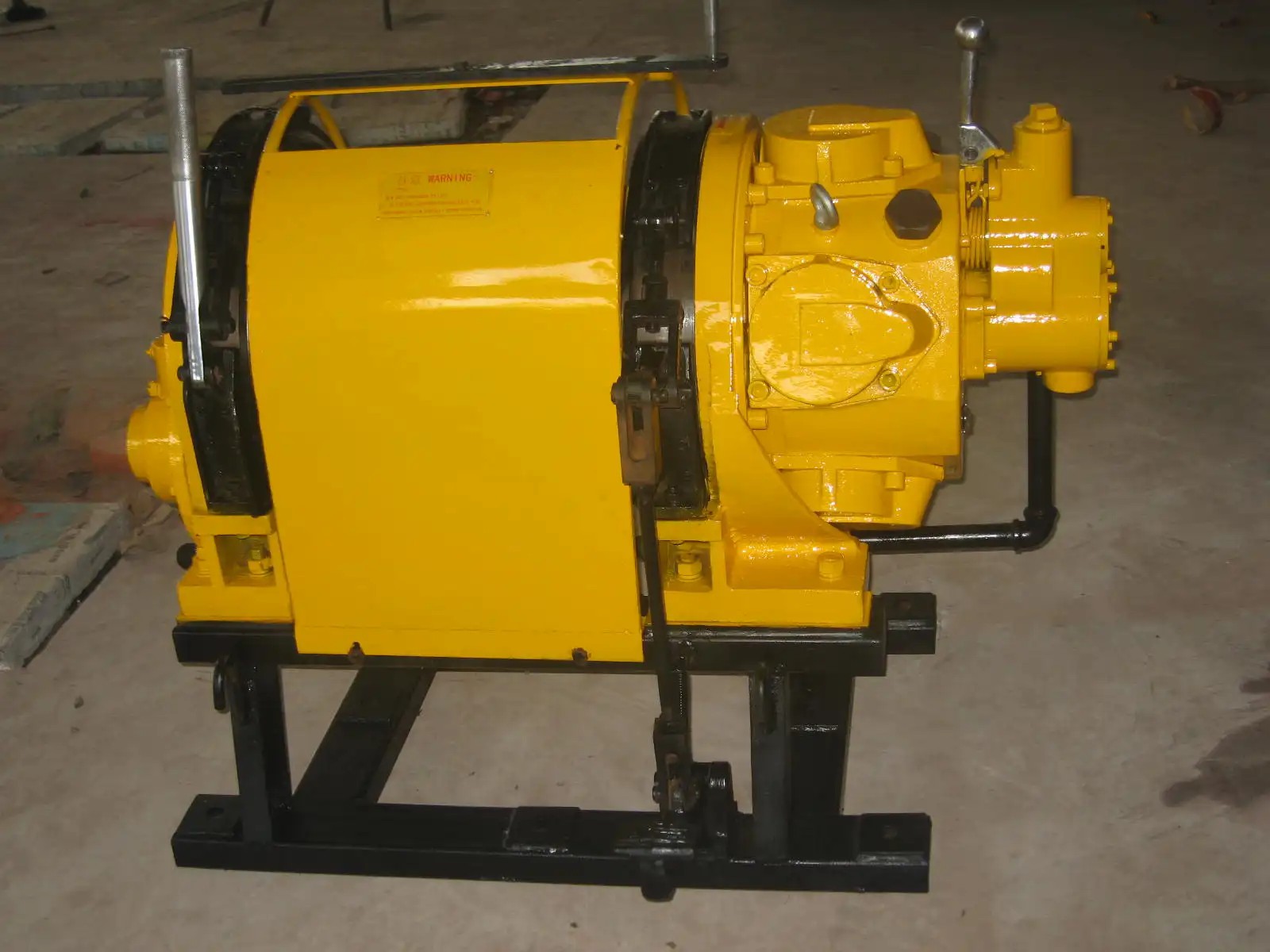

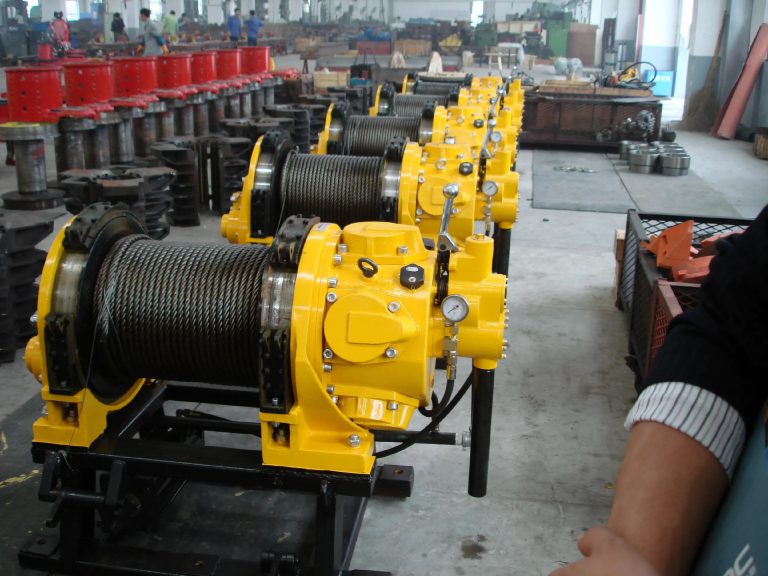

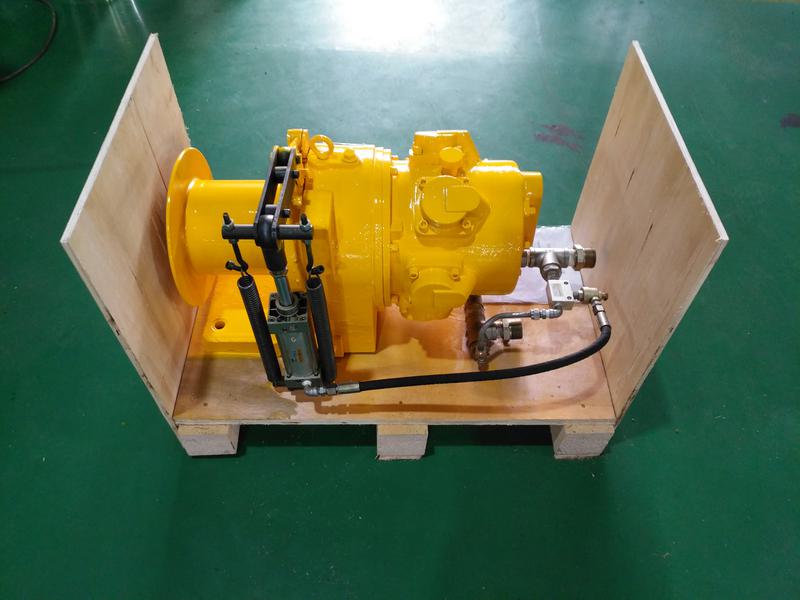

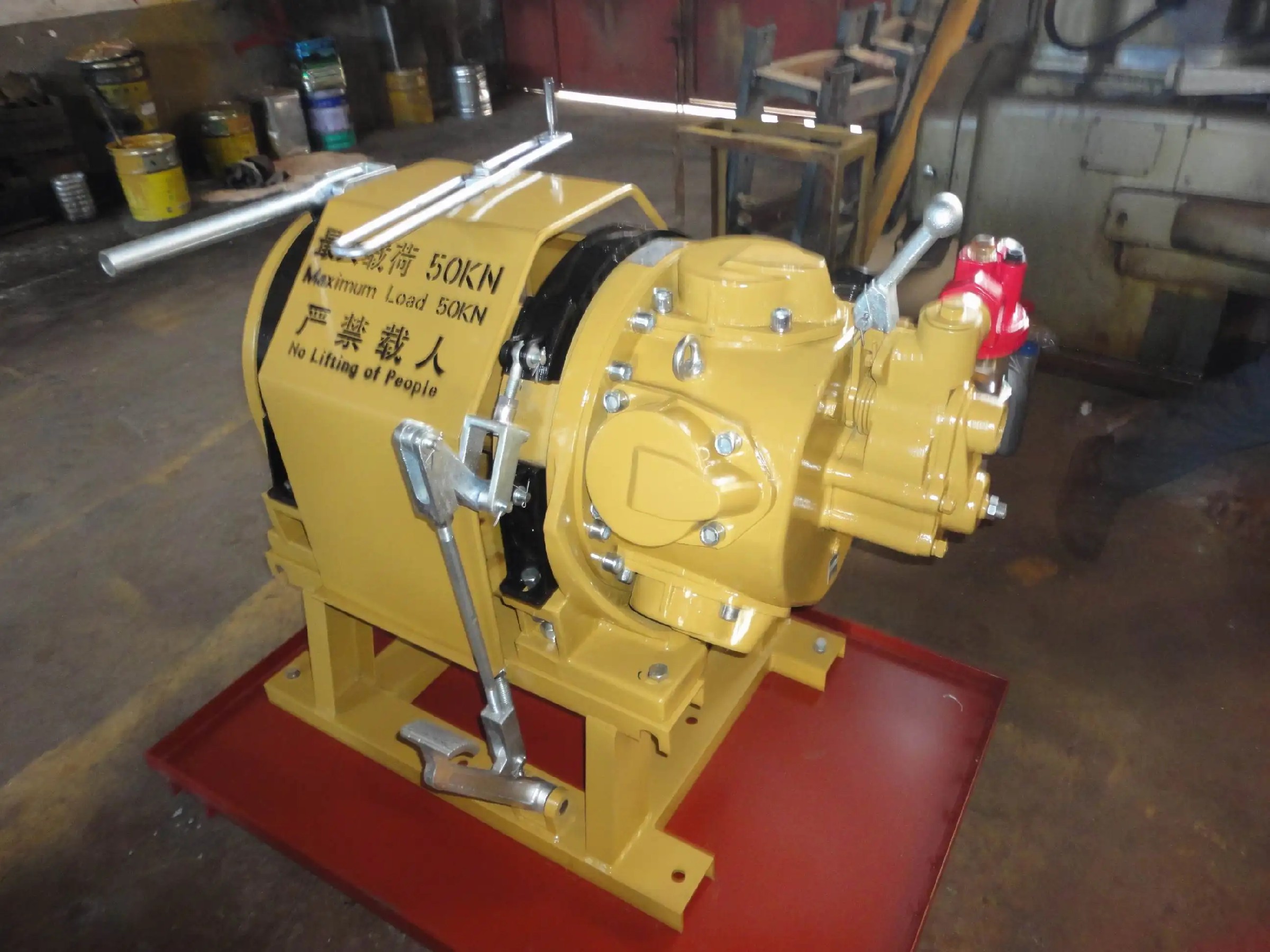

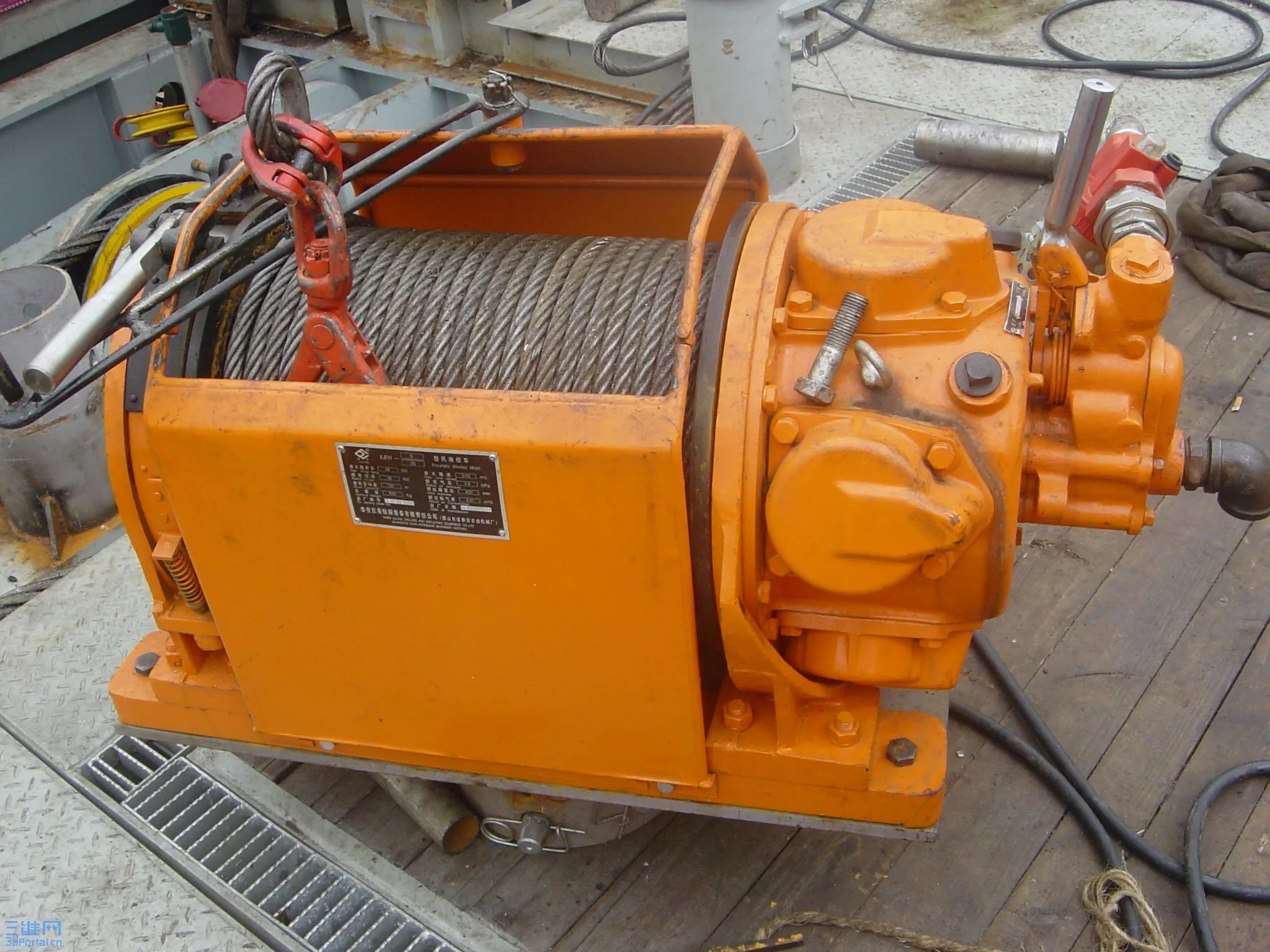

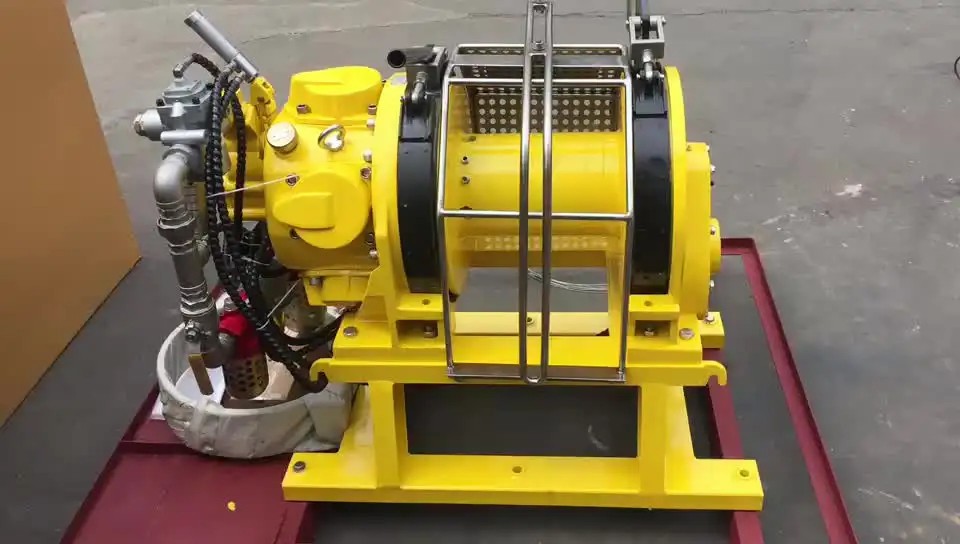

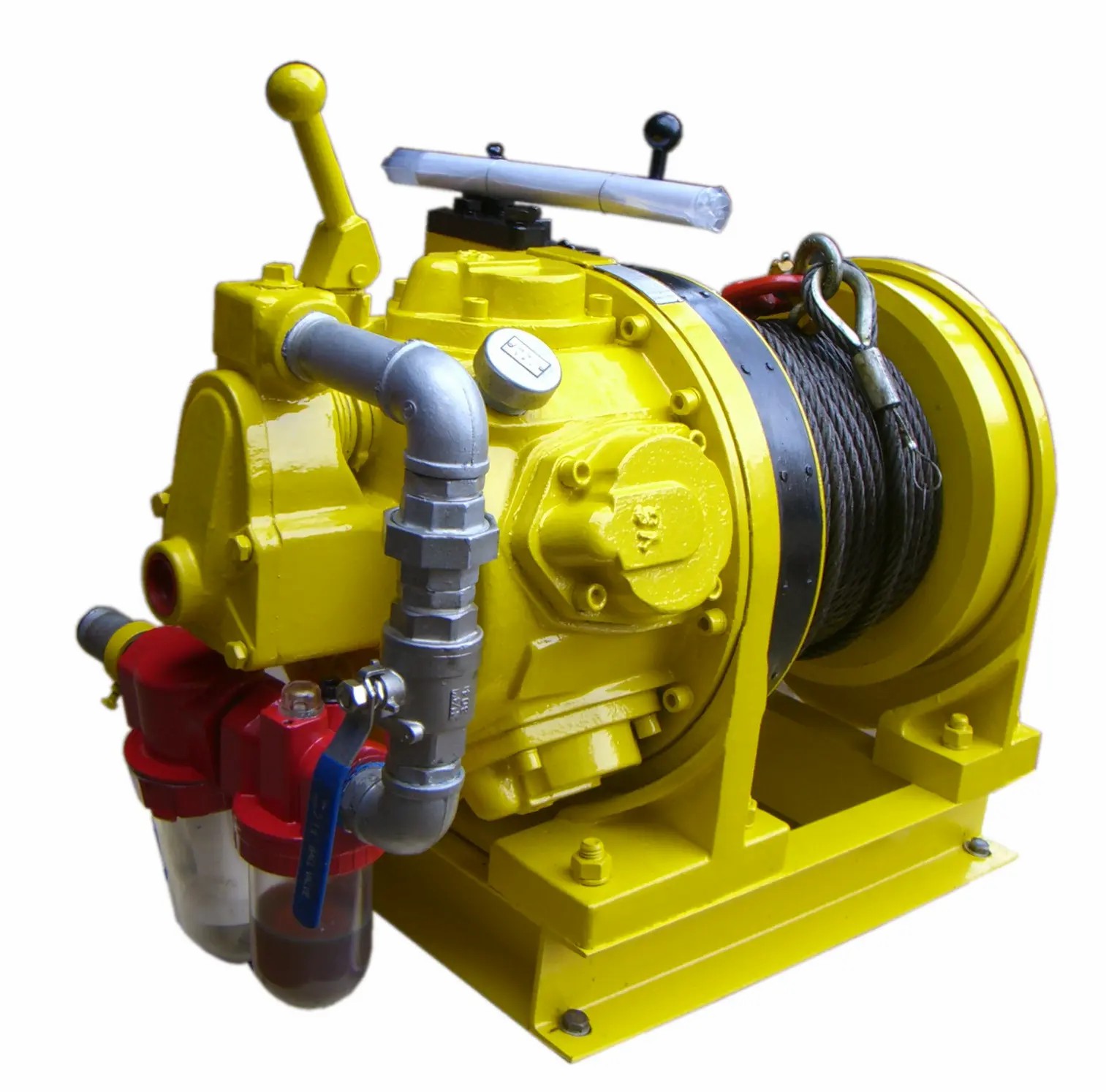

Pneumatic winch(Air winch) is a traction/lifting equipment driven by compressed air. and its core power source is pneumatic motor. Compared with electric or hydraulic winches, it has the characteristics of explosion-proof, high temperature resistance, and impact resistance, and is especially suitable for flammable, explosive, dusty or humid environments (such as mines, oil fields, and chemical plants).
Structure and working principle:
Pneumatic motor: converts the kinetic energy of compressed air into mechanical energy to drive the drum to rotate.
Speed reduction device: adjusts the output torque and speed to meet different load requirements.
Braking system: adopts pneumatic friction brake or spring brake, and automatically locks when power/gas is cut off.
Wire rope/chain: standard diameter 6-20mm, traction range 1-50 tons (customizable).
Workflow: Compressed air → pneumatic motor → speed reduction box → drum rotation → wire rope retraction and release → complete traction/lifting.
Depending on your actual use, there are different winch for customers to choose from. We have an experienced team of crane engineers. We design the right winch type for you, and provide a full range of after-sales services to enable your winch to operate quickly, stably and reliably.
Advantages
Self-locking function ensures that heavy objects are stationary
Strong safety Explosion-proof and flame-proof: No electric drive is required, no electric sparks are generated, and it can be safely used in flammable and explosive gas or dust environments (such as methane, oil and gas environments). Self-locking when the air supply is cut off: When the air source is cut off, the brake system automatically locks the reel to prevent heavy objects from falling. Overload protection: The pneumatic system balances the risk of overload through the pressure relief characteristics to avoid equipment damage.
Flexible operation Stepless speed regulation: Continuous speed adjustment (5–30 m/min) is achieved through the handle or remote control to meet the switching needs of light and heavy loads. Precise control: Supports centimeter-level positioning accuracy (such as pneumatic hoist linkage scenes) to improve work efficiency. Multi-scenario compatibility: It can be controlled manually, remotely or by PLC programming to meet basic operation and automation needs.
Strong environmental adaptability Resistant to harsh environments: The protection level reaches IP65, which can withstand high dust, moisture, corrosive media and extreme temperatures from -30℃ to +80℃. Resistant to shock loads: Pneumatic systems have natural adaptability to vibration, high temperature and shock loads, and have high stability.
Structural and maintenance advantages Lightweight and compact: Small size and light weight (compared with hydraulic/electric equipment), easy to carry and install underground. Low maintenance cost: No complex circuits, the lubrication system is closed and dustproof, with low failure rate and simple maintenance. Long life design: The service life of key components (such as solenoid valves and cylinders) is tens of millions of times, and the durability is strong.
Energy efficiency and environmental protection Energy saving and environmental protection: Powered by compressed air, without oil pollution, in line with green operation requirements. Low cost operation: The air source is easy to obtain, and the energy consumption and maintenance costs are lower than those of hydraulic or electric systems.
Typical application scenarios Petrochemical/Mining: Explosion-proof 13 + Corrosion-resistant; Port/Ship: Waterproof and moisture-proof 5 + Impact-resistant; Automated production line: Precise positioning 5 + PLC linkage control. (Note: Some functions need to be customized according to specific models. It is recommended to confirm with the supplier based on the working conditions.)
Tailored Your Crane
It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility. If you require custom options, let us know and we will work with you to build a customized crane that meets your needs.
Horizontal traction or Vertical lifting?
Rated Load: ______t
Rope Capacity:______m
Air supply pressure and flow:______MPa
What purpose will use the winch?______________________
Detailed working conditions of the winch:____________
