Description

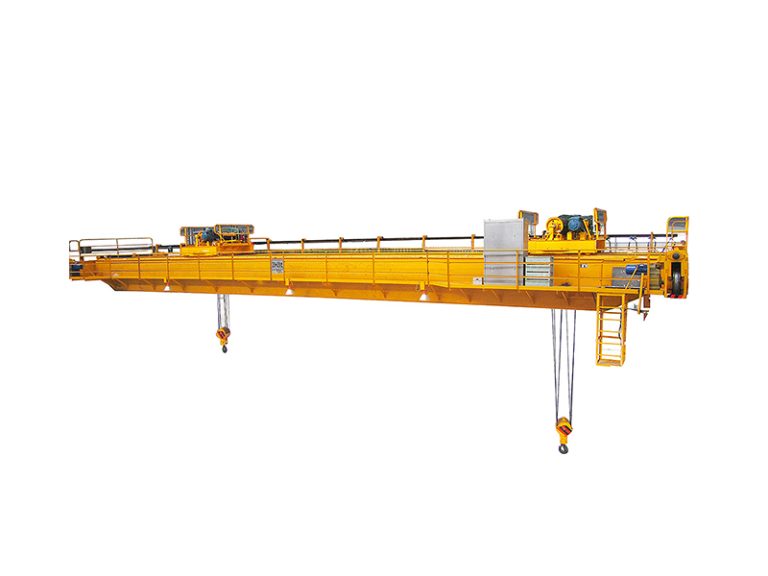

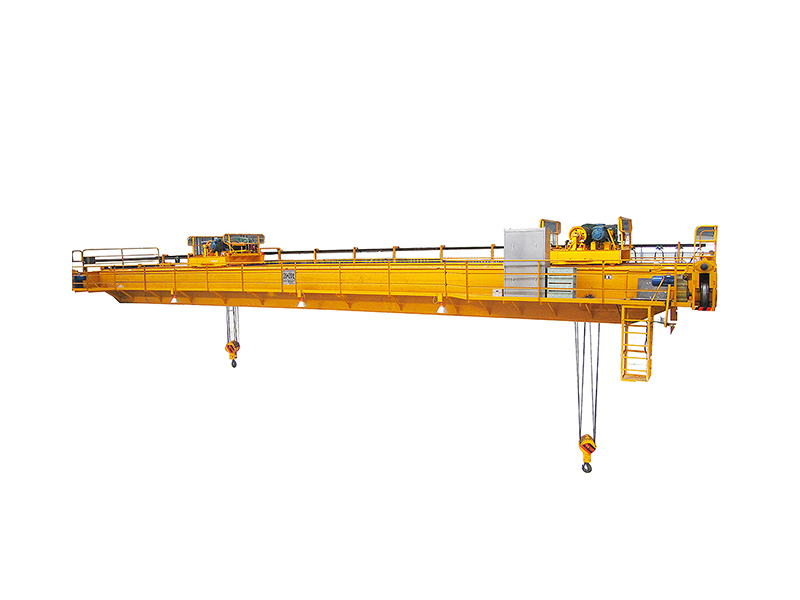

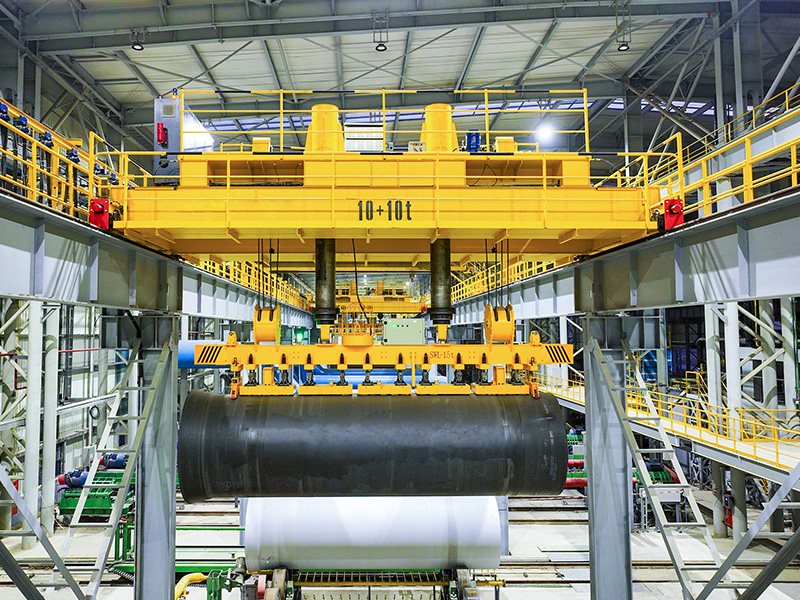

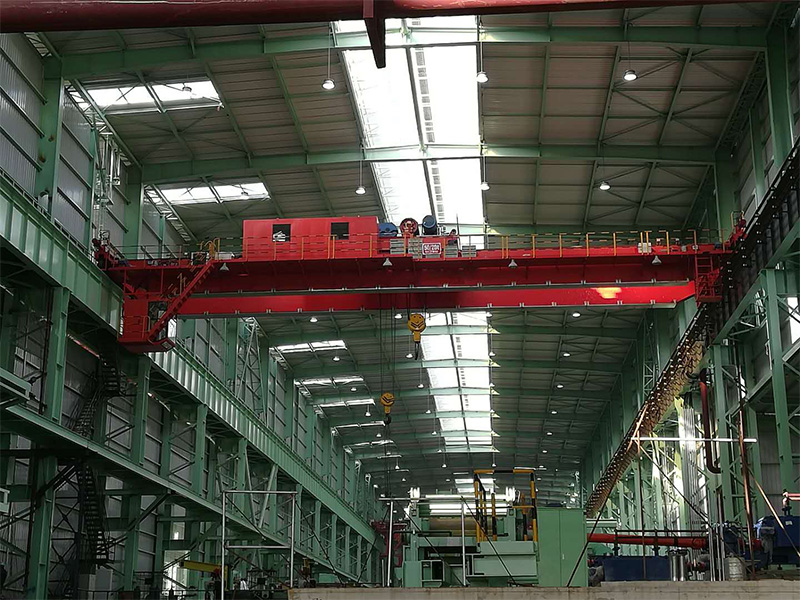

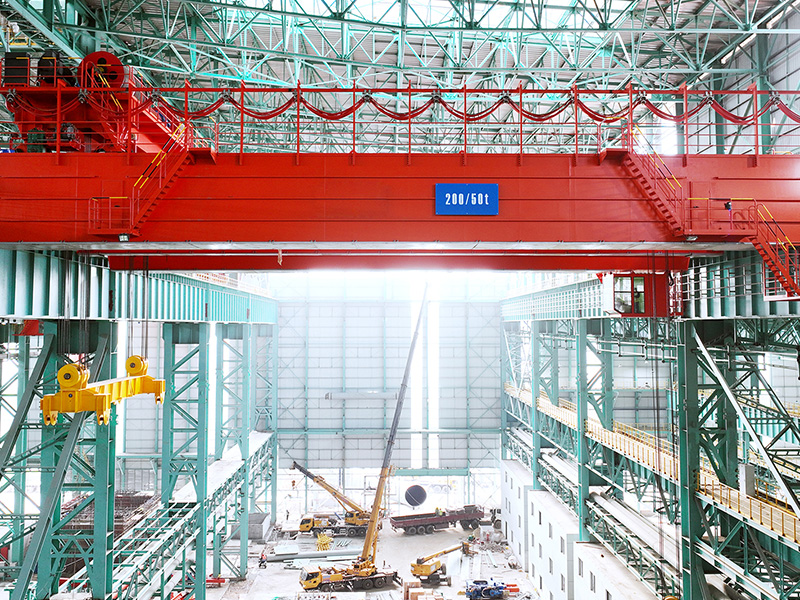

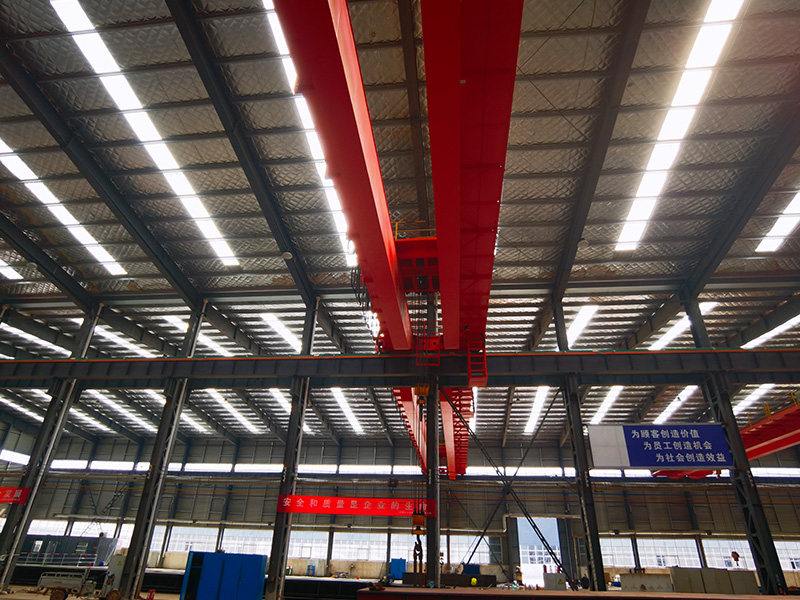

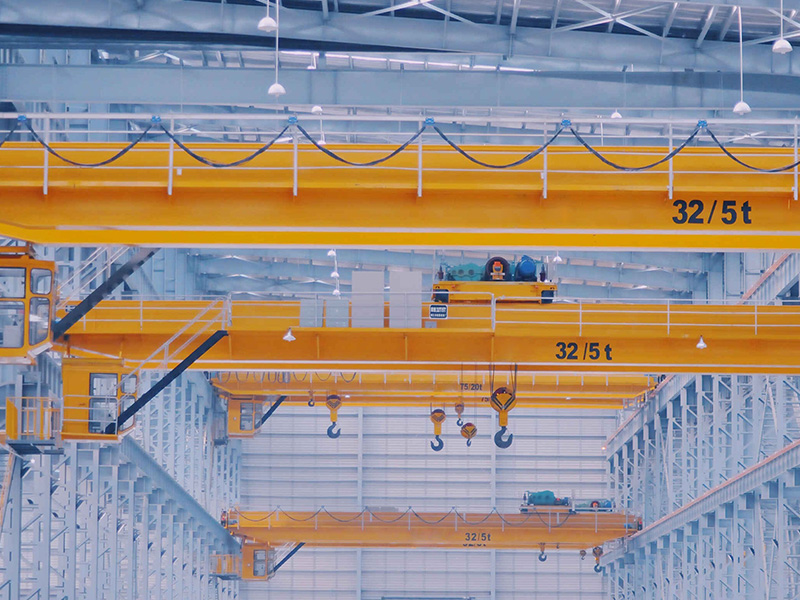

QD type double girder electric bridge crane with trolley is based on double girder, crane travelling mechanism, winch trolley and moving mechanism. The working level is A5-A8. Standard capacity from 5 ton to 800 tons. N/LH double girder electric bridge crane is suitable for a variety of occasions, mainly including industrial production, warehousing management, logistics centers and special environment operations.

QD type double girder electric bridge crane with trolley adopts winch trolley.

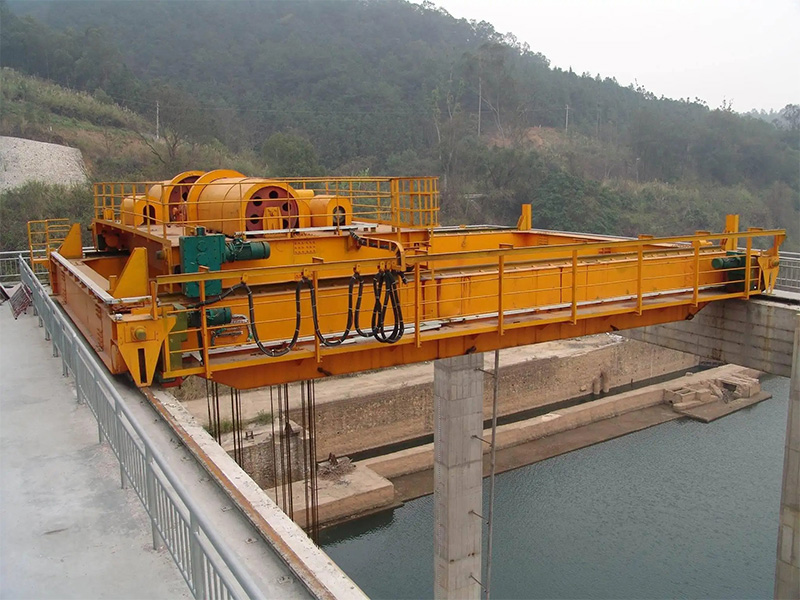

QD type double girder electric bridge crane with trolley is widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port and wharf, logistics and other departments and places.

Depending on your actual use, there are different overhead cranes for customers to choose from. We have an experienced team of crane engineers. We design the right bridge crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Parameter

Advantages

• Easy to install and maintain.
• Service life: 30-50 years.
• Suitable for any environment (high temperature, explosion-proof, etc.).
• Reasonable structure, strong rigidity.
• Speed can be adjusted by frequency conversion.
• According to the lifting cargo, the crane can be equipped with various special lifting equipment, such as: lifting beam, electromagnet, grab, C-hook, lifting tong(coil tong) and container spreaders, etc.

Features

1. Heavy Duty and High Efficient.
2. The main beam and end beam are assembled with bolts and nuts, which is convenient and quick.
3. The main beam is CNC cut from a whole piece of steel plate, with high surface flatness and precision, and the horizontal walking track adopts national standard 24#, 38#, and 43#.
4. The end beam is welded with rectangular tubes and equipped with buffers to ensure the safe walking of the crane.
5. Working levels A5, A6, A7, and A8 can work continuously for 24 hours.
6. The motor, reducer, and brake are domestic first-class brands.
7. The electrical system adopts Schneider brand.
8. Including safety devices such as buffers, limit switches, overload limiters, voltage and current protection devices, etc.
9. The control can be TELECRANE's pendant control, wireless remote control, and cab control.

Tailored Your Crane

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a factory overhead crane that meets your needs.

1. Lifting capacity: _____ ton
2. Lifting height: ______ m
3. Span: _______m
4. Power supply: _____V _____Hz 3 Phase
5. Crane travelling length: _______m
6. New factory? or existing factory?_____________________
7. What purpose will use the crane? ___________________
8. Detailed working conditions of the crane:____________
9. Other requirements: __________________________________

Overhead crane can be equipped with different spreaders to adapt to more working conditions. For example, the following spreaders can be customized:

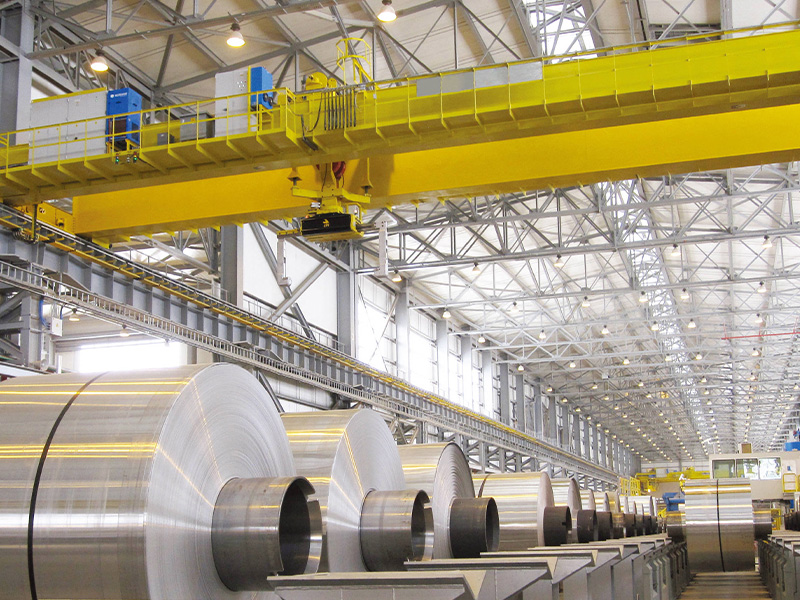

• Crane C Hook for coil

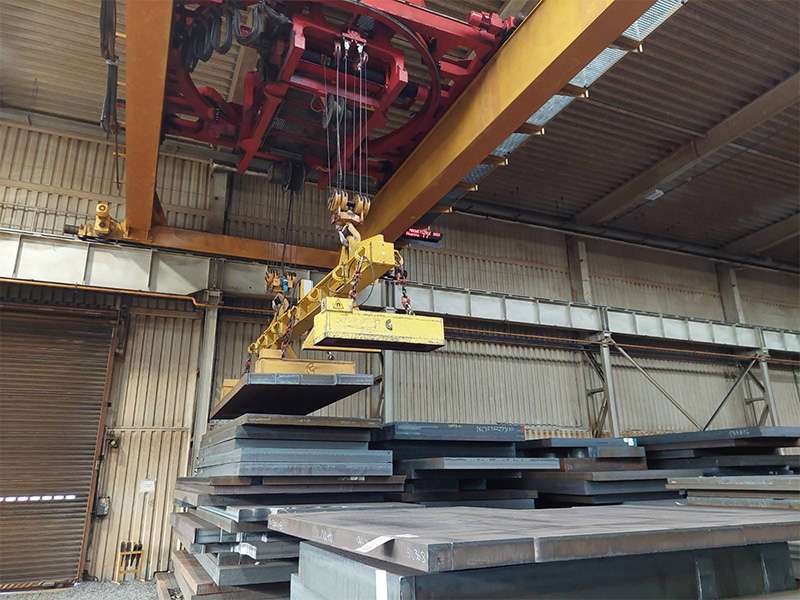

• Crane Electromagnet
• Grab Bucket
• Lifting Beam
• Crane Lifting Tong
• Container Spreader
• Special Hook（Electric rotation, casting, insulation, etc.）
