Description

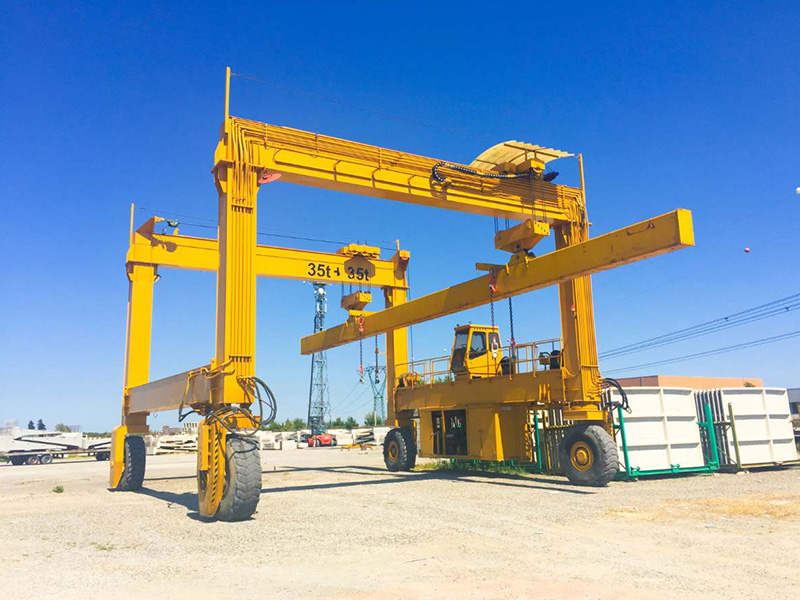

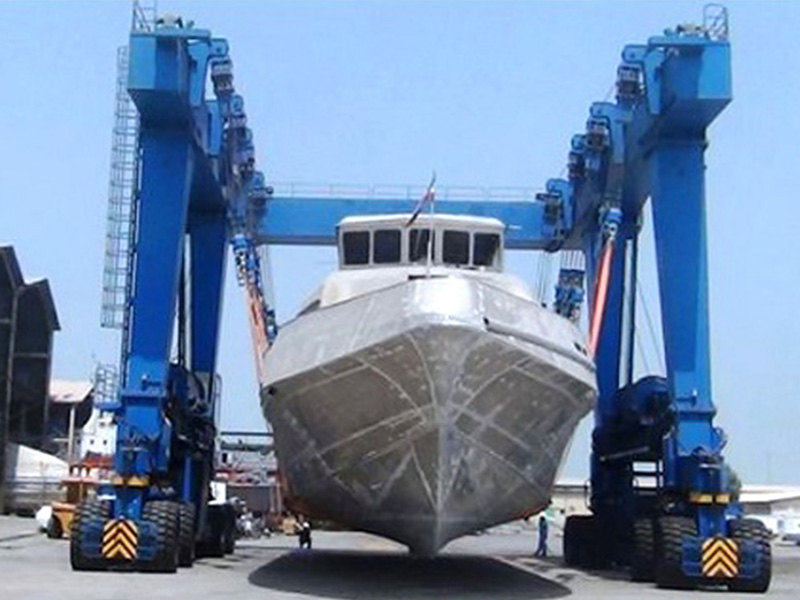

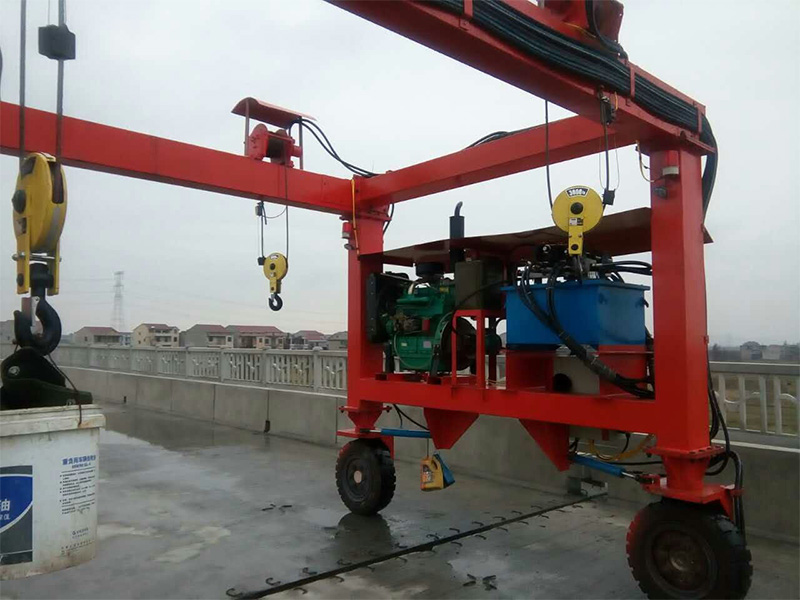

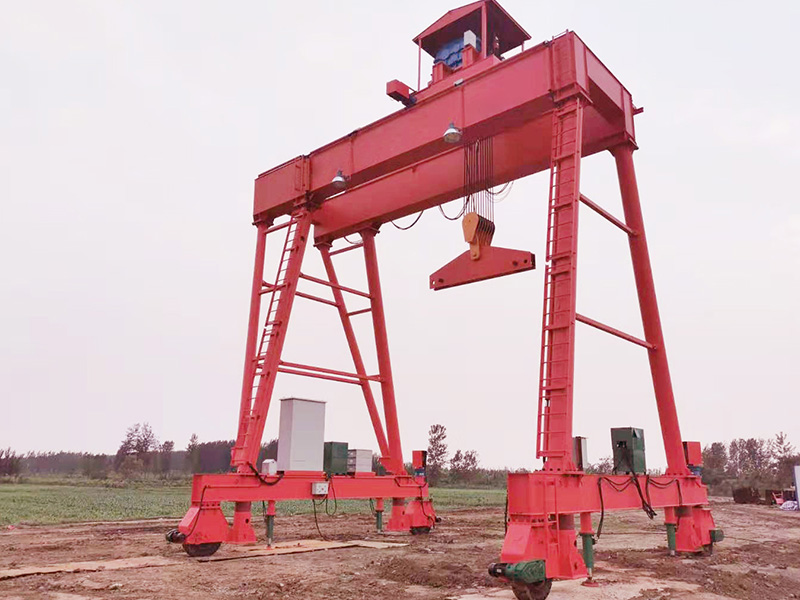

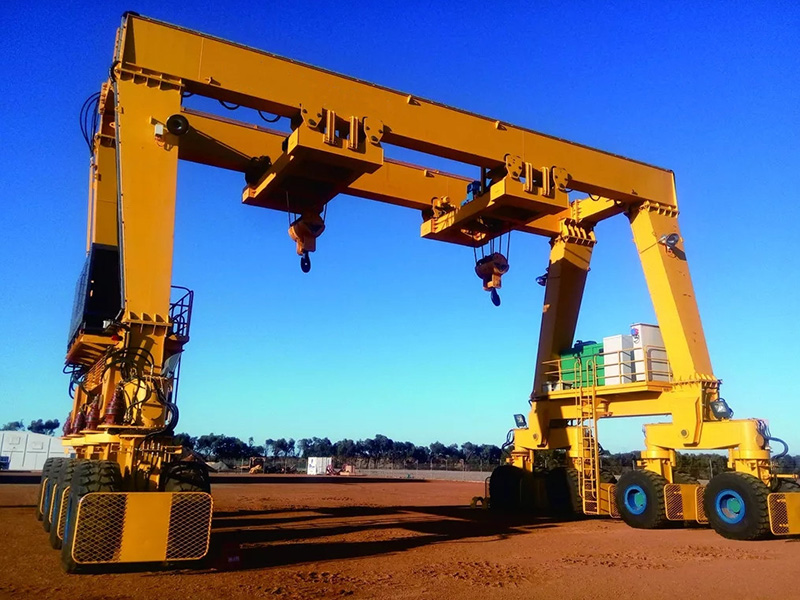

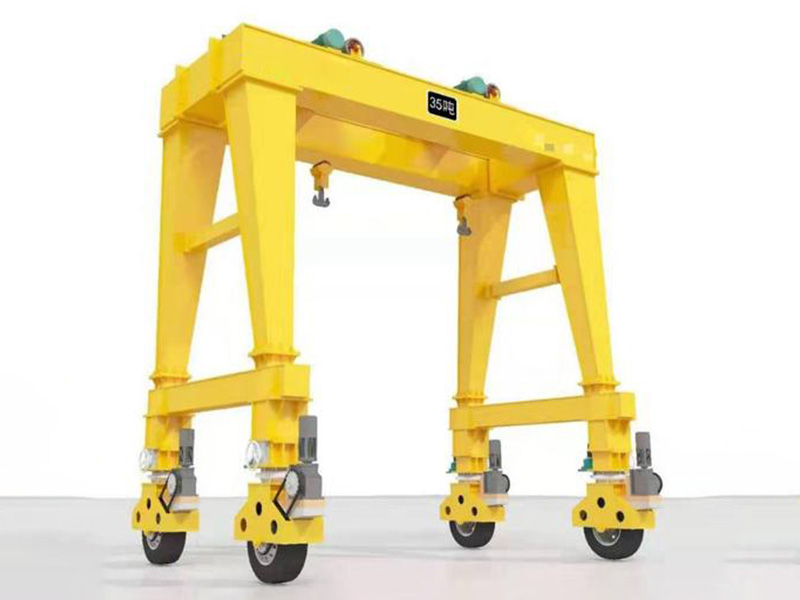

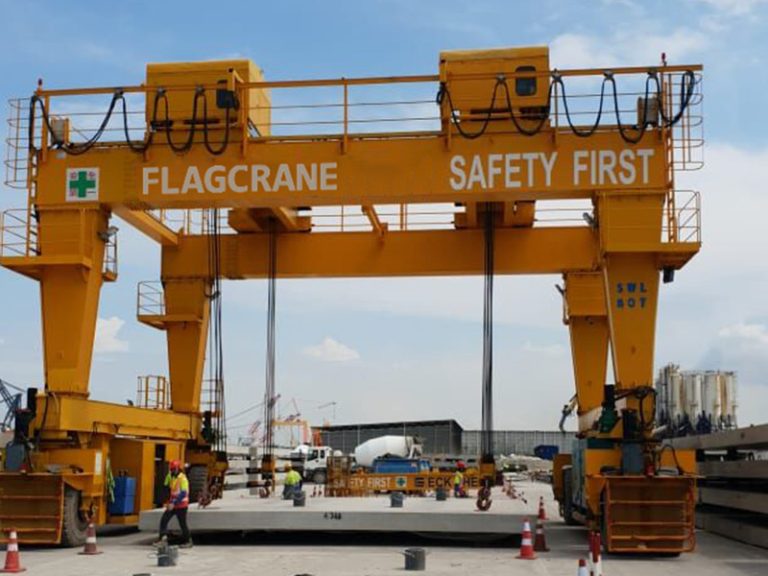

The RMG double-beam tire gantry crane is a lifting equipment that combines a double-beam gantry crane with a tire-type traveling mechanism. Its structural features include a double-beam gantry structure and a tire-type traveling mechanism, which enables the equipment to have high flexibility and adaptability while maintaining a high load-bearing capacity.

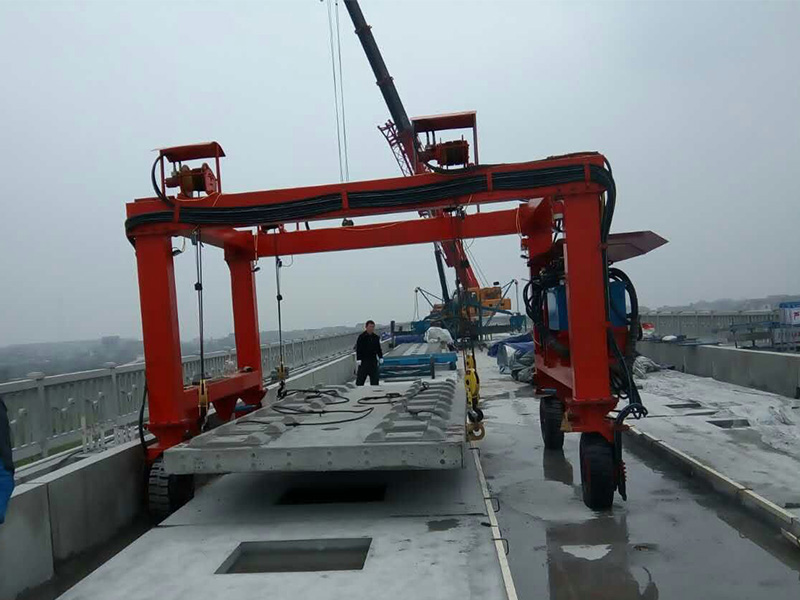

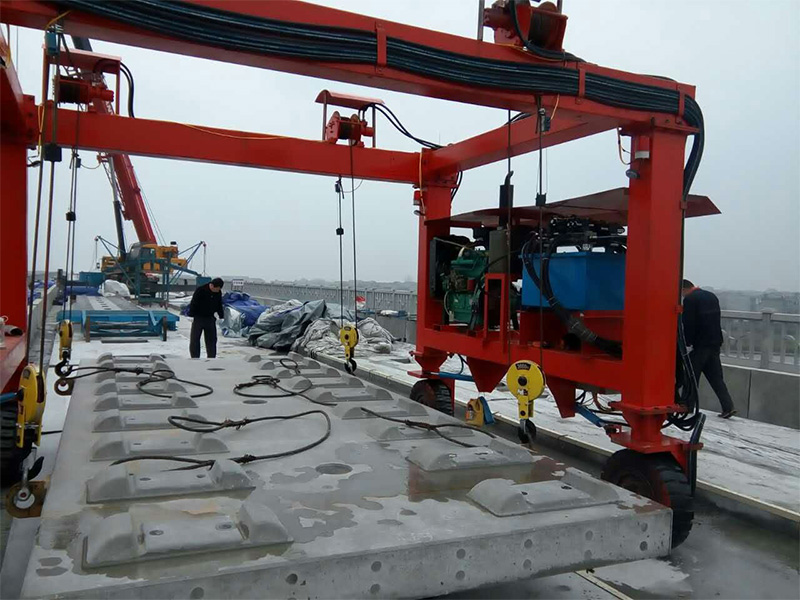

The RMG double-beam tire gantry crane is suitable for indoor and outdoor operations that do not require fixed tracks, such as construction sites, bridge construction, etc. Due to its flexible tire-type traveling mechanism, it can operate on various terrains and is particularly suitable for environments with variable site conditions.

Depending on your actual use, there are different gantry cranes for customers to choose from. We have an experienced team of crane engineers. We design the right gantry crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.

Parameter

Advantages & Disadvantages

• Reasonable structure and favorable performance.
• Smooth starting and stopping.
• Safe and reliable traveling, long life.
• Low noise, commodious cabin with good view.
• High quality automatic welding and NDT inspection
• Crane drive: IP54 or IP44, level F insulation
• Especially suitable for the container lifting.
• Designed according to your reques.

Features

1. Flexible movement: Tire-type gantry cranes do not require fixed tracks and can move freely on flat ground, making them adaptable to a variety of working environments and needs, such as temporary construction sites, cargo yards, etc. It can be easily moved and turned within the construction site, improving work efficiency.
2. Strong adaptability: The tire design enables it to adapt to different ground conditions, such as cement floors, soil, sand and gravel, which enables it to be used in a wider range of environments. No fixed foundation and site are required, and it can adapt to various environments and terrains.
3. No need to fix tracks: No need to lay tracks, installation and disassembly are relatively simple, and it can be quickly deployed to different work sites, improving the efficiency and adaptability of use.
4. Easy transportation and installation: The modular design makes it easy to transport and install, and the various components can be disassembled for transportation and assembled after arriving at the site, which enables it to be quickly put into use in a short time.
5. Large load: The tire-type gantry crane has a strong lifting capacity and can adapt to different engineering needs. For example, the lifting capacity of a rubber-tyred container gantry crane is mostly 30t (tons), with a span of 6 rows of containers and the width of 1 transfer lane, and a lifting height of 4 over 5 (11-12 meters).
6. High stability: The rubber-tyred gantry crane has strong stability and can effectively prevent the shaking of the lifting object. Its main components are made of steel, which has high strength and rigidity, ensuring its stability.
7. High safety: The structure is compact and equipped with multiple safety systems to ensure the safety and stability of the operation.
8. High operating efficiency: The rubber-tyred gantry crane can move forward and backward, and is equipped with a steering device. Through the 90-degree rotation of the wheel, it can be transferred from one container area to another for operation, which improves the loading and unloading efficiency.
9. Simple maintenance: The structure is relatively simple and easy to maintain and repair. At the same time, the main components are made of steel, which has high corrosion resistance and wear resistance, and can well extend the service life of the rubber-tyred gantry crane.

Tailored Your Crane

It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a factory overhead crane that meets your needs.

1. Lifting capacity: _____ ton
2. Lifting height: ______ m
3. Span: _______m
4. Power supply: _____V _____Hz 3 Phase
5. Crane travelling length: _______m
6. New factory? or existing factory?_____________________
7. What purpose will use the crane? ___________________
8. Detailed working conditions of the crane:____________
9. Other requirements: __________________________________

Overhead crane can be equipped with different spreaders to adapt to more working conditions. For example, the following spreaders can be customized:

• Crane C Hook for coil
• Crane Electromagnet
• Grab Bucket
• Lifting Beam
• Crane Lifting Tong
• Container Spreader
• Special Hook（Electric rotation, casting, insulation, etc.）
