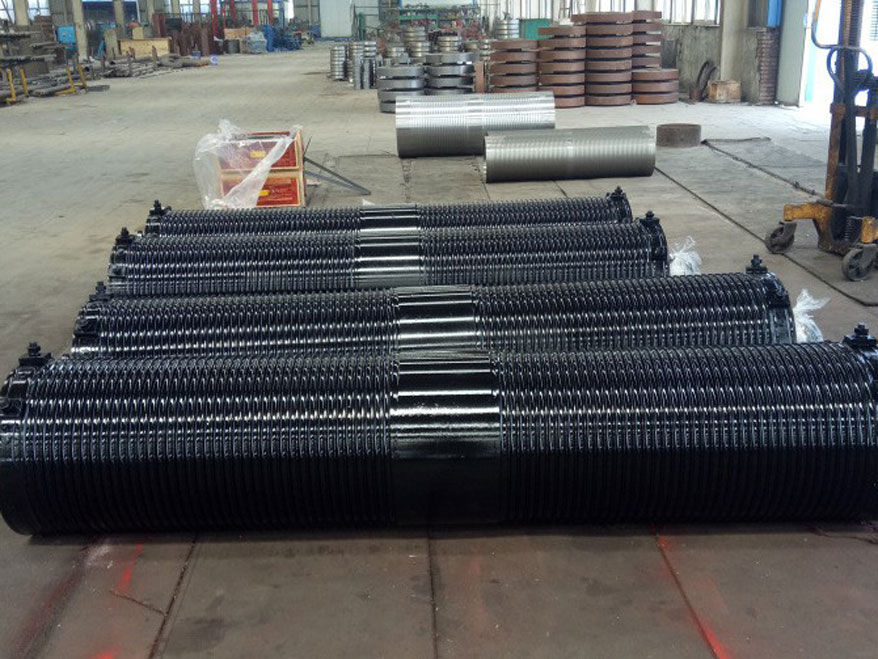

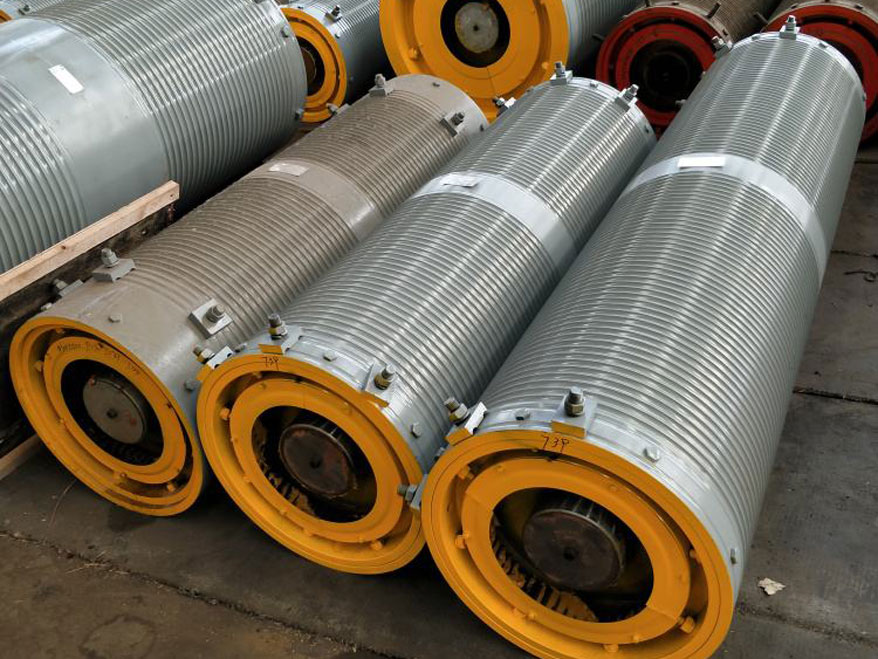

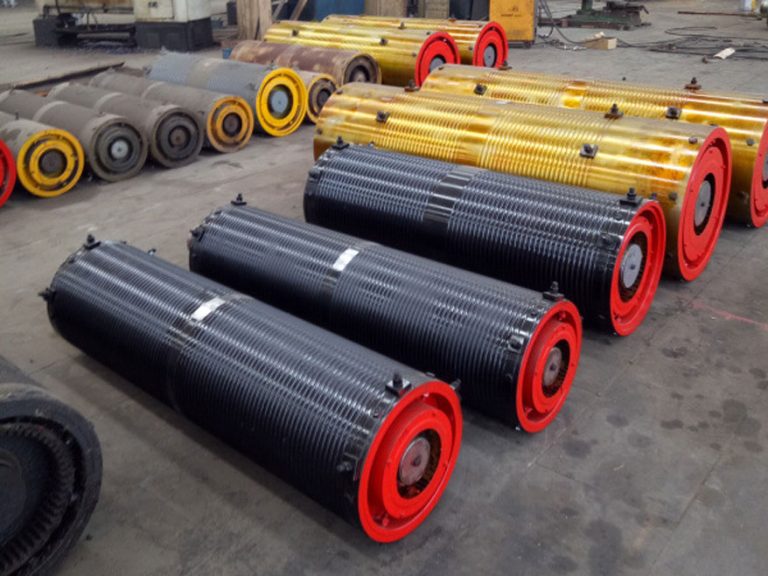

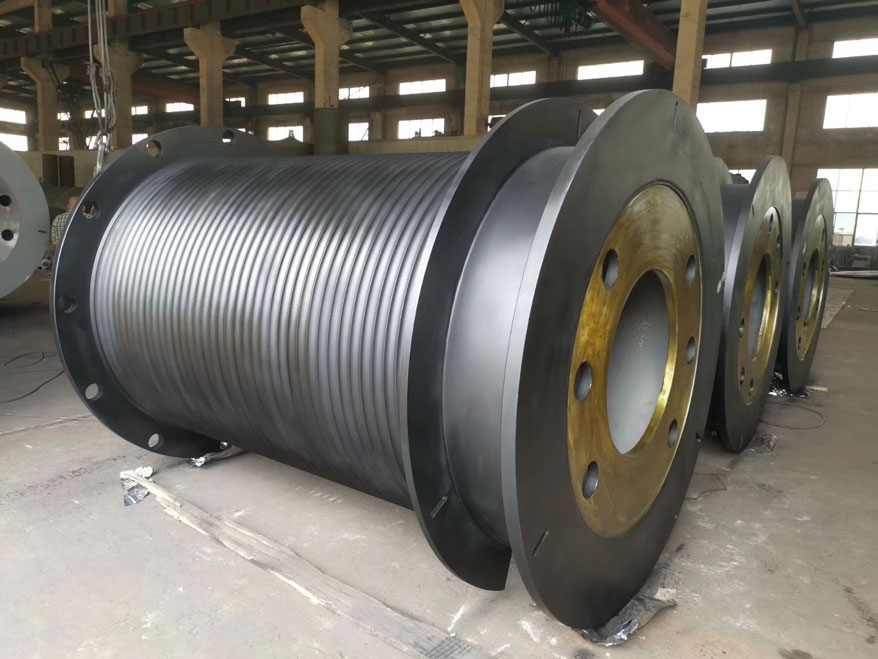

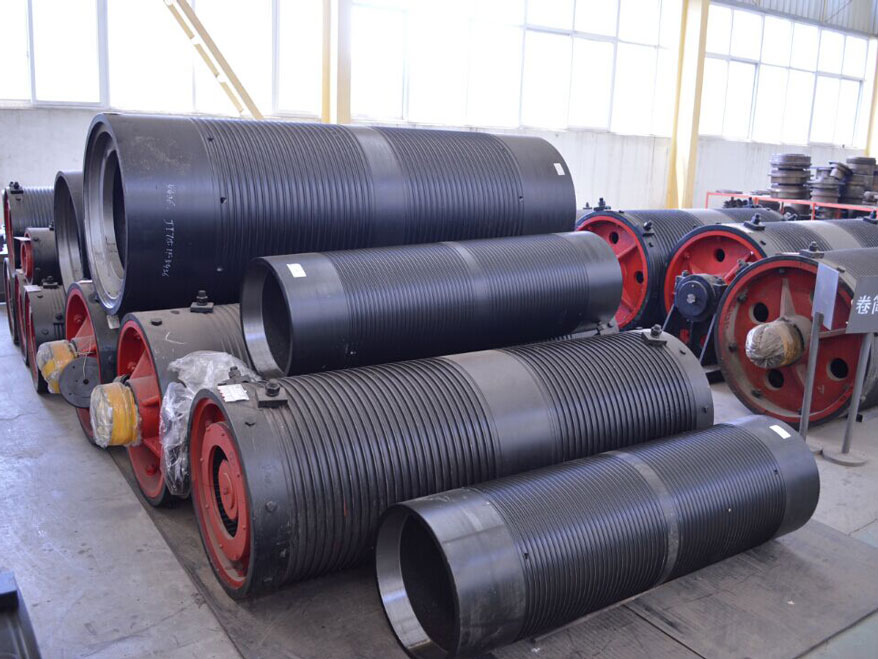

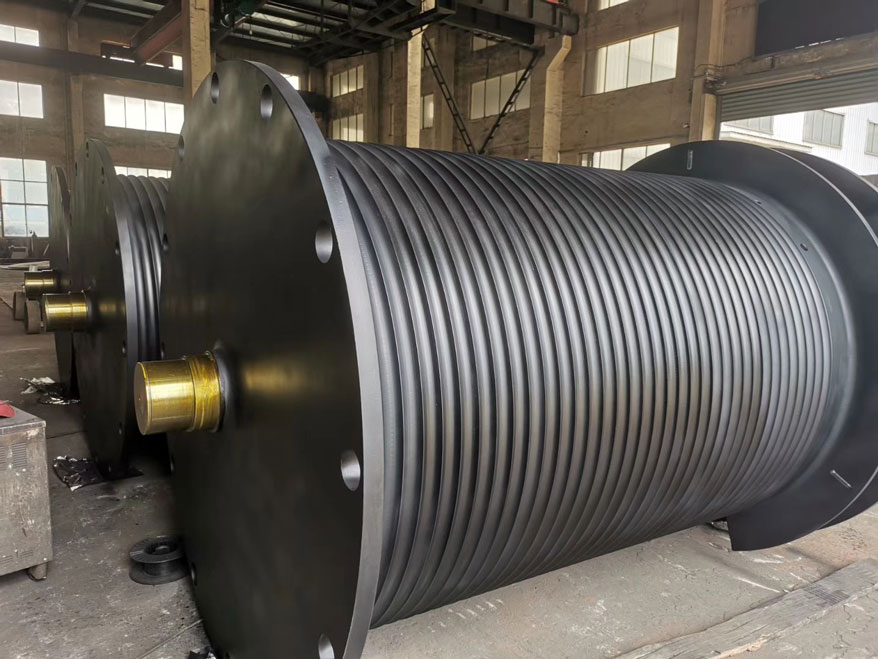

Rope Drum for Hoist/Crane is the most important accessories in the lifting equipment, it is responsible for winding the wire rope, bearing the tension and pressure of the lifted heavy objects, and realizing the lifting and handling of heavy objects with the cooperation of other relevant lifting mechanisms. Crane Rope Drum is widely used in all kinds of lifting equipment: hoist, overhead crane, gantry crane, port machinery, ship winch, winch, beam lifting machine, stereo garage, all terrain crane and other lifting equipment.
Depending on your actual use, there are different crane parts for customers to choose from. We have an experienced team of crane engineers. We design the right crane system for you, and provide a full range of after-sales services to enable your crane system to operate quickly, stably and reliably.
Parameter
Model
400, 500, 650, 800, 1000
Drum Length
mm
1000, 1500, 2000, 3500, 3600
Capacity
t
5, 5/10, 16/20, 32, 50, 75, 100/125
Lifting Height
m
12, 15, 17, 22/16, 16/20
Bearing brand
Chinese brands, international brands
Customized
Yes
Advantages
1. Optimized Structure & Enhanced Performance
Lightweight Design: Modular construction reduces size and weight by 30%, lowering crane load. Simplified rope alignment system ensures easier installation and adjustments.
Extended Rope Lifespan: Zigzag rope groove design allows 14-layer winding (over 1,000 meters total), minimizing friction and wear between layers.
High Durability: Cast steel material with spring self-locking resists heavy impacts and frequent starts/stops.
2. Energy Efficiency & High Productivity
Variable Frequency Speed Control: Enables 0-to-max speed adjustment—saves 15-20% energy by lowering power for light loads and boosting instantly for heavy lifting. Work efficiency increases by 30%+.
Smart Energy Management: Soft start/stop technology reduces mechanical stress on motors and ropes, cutting maintenance needs.
3. Smart Control & Safety
Precision Handling: Achieves millimeter-level accuracy for delicate tasks (e.g., nuclear equipment) and heavy loads (e.g., 400-ton steel coils).
Multi-Layer Safety: Overload protection, anti-derailment limits, and constant tension systems prevent rope breaks or load drops.
4. Tough Environments & Easy Maintenance
Extreme Conditions Ready: Operates in -30°C to 50°C, high dust, and humidity. Climate-controlled slip rings ensure stability.
Quick Repairs: Standardized parts (hubs, bearings) allow 40% faster maintenance. No recalibration needed after initial setup.
Heat treatment: hardening and tempering, high frequency quenching,carburizing quenching and so on.
Groove surface quench: HRC45-55
Groove surface quench depth: ≥2mm
Max processing diameter: 2,000mm
Inspection: all items are checked and tested thoroughly during every working procedure and after the product is finally manufactured to ensue that best quality product goes out in the market.
Tailored Your Rope Drum for Hoist/Crane
It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane rope drum that has everything you need to effectively lift materials within your facility. If you require custom options, let us know and we will work with you to build a crane rope drum that meets your needs.
Rope Capacity: ___m?
Drum size: __________mm
Material: ________________________
What's the crane will be use the crane rope drum?(if possible,please provide the drawing )_____________________________________
Detailed working conditions of the crane:_____________________________________________
Other requirements:___________________________________________________________________
