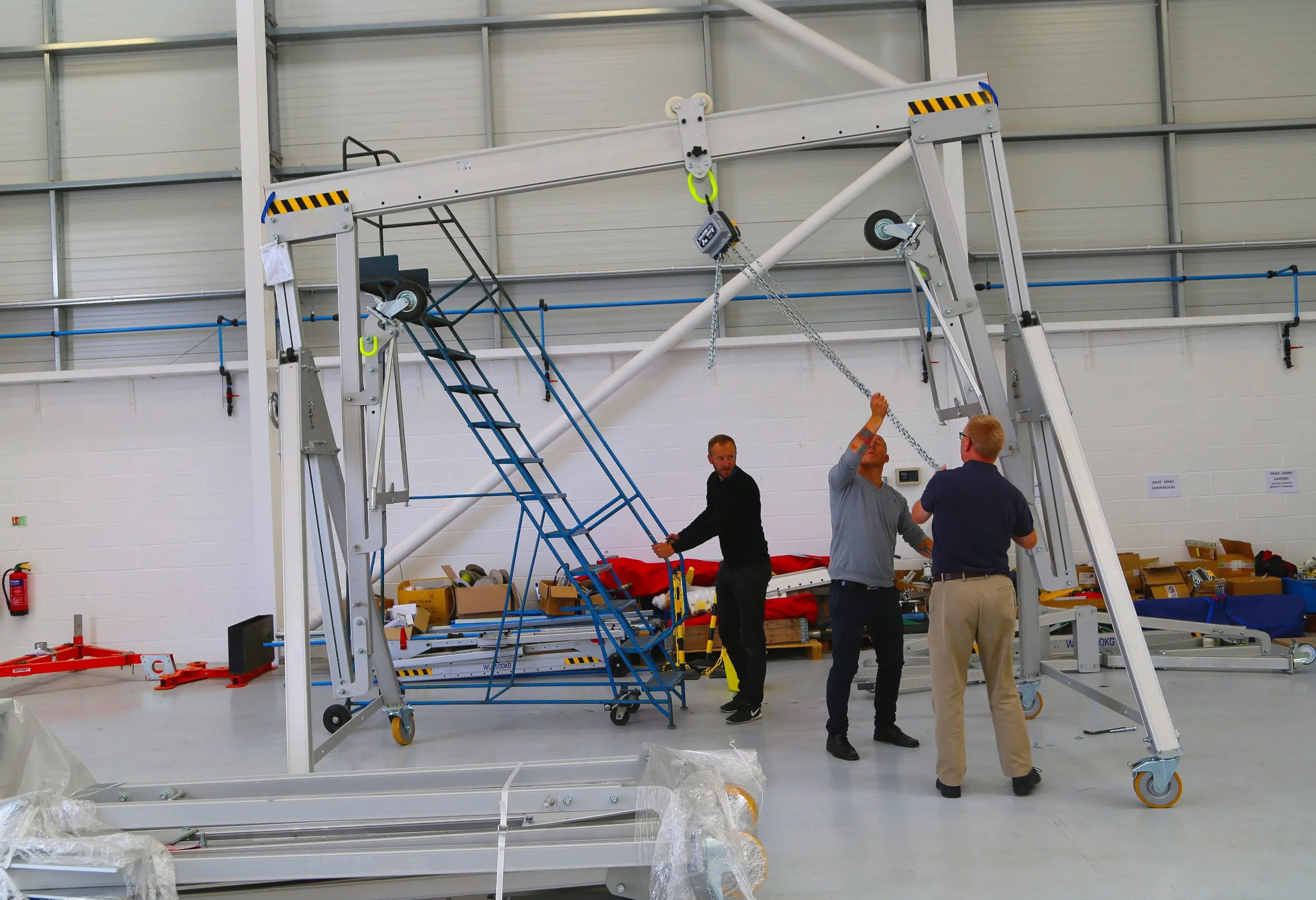

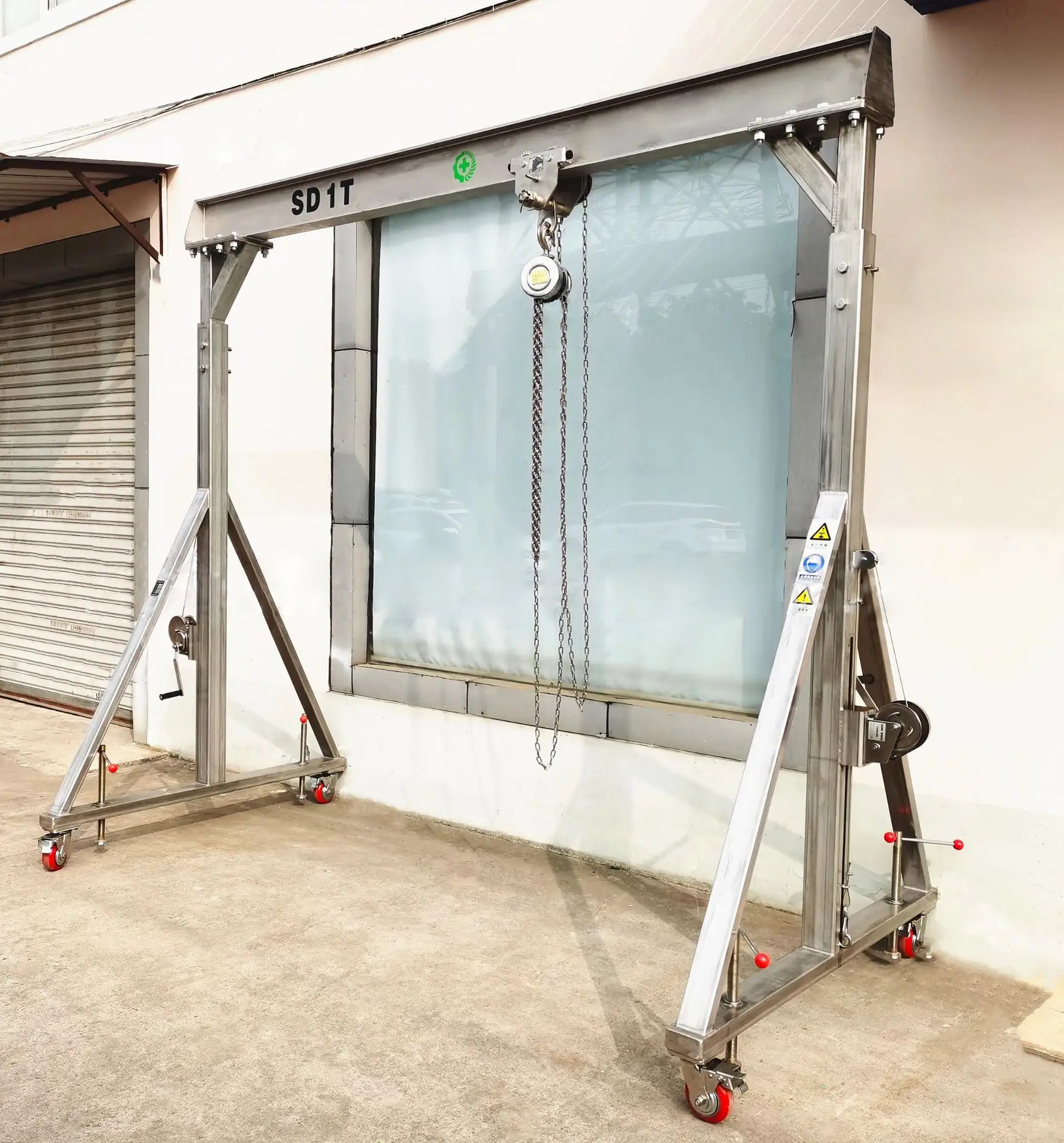

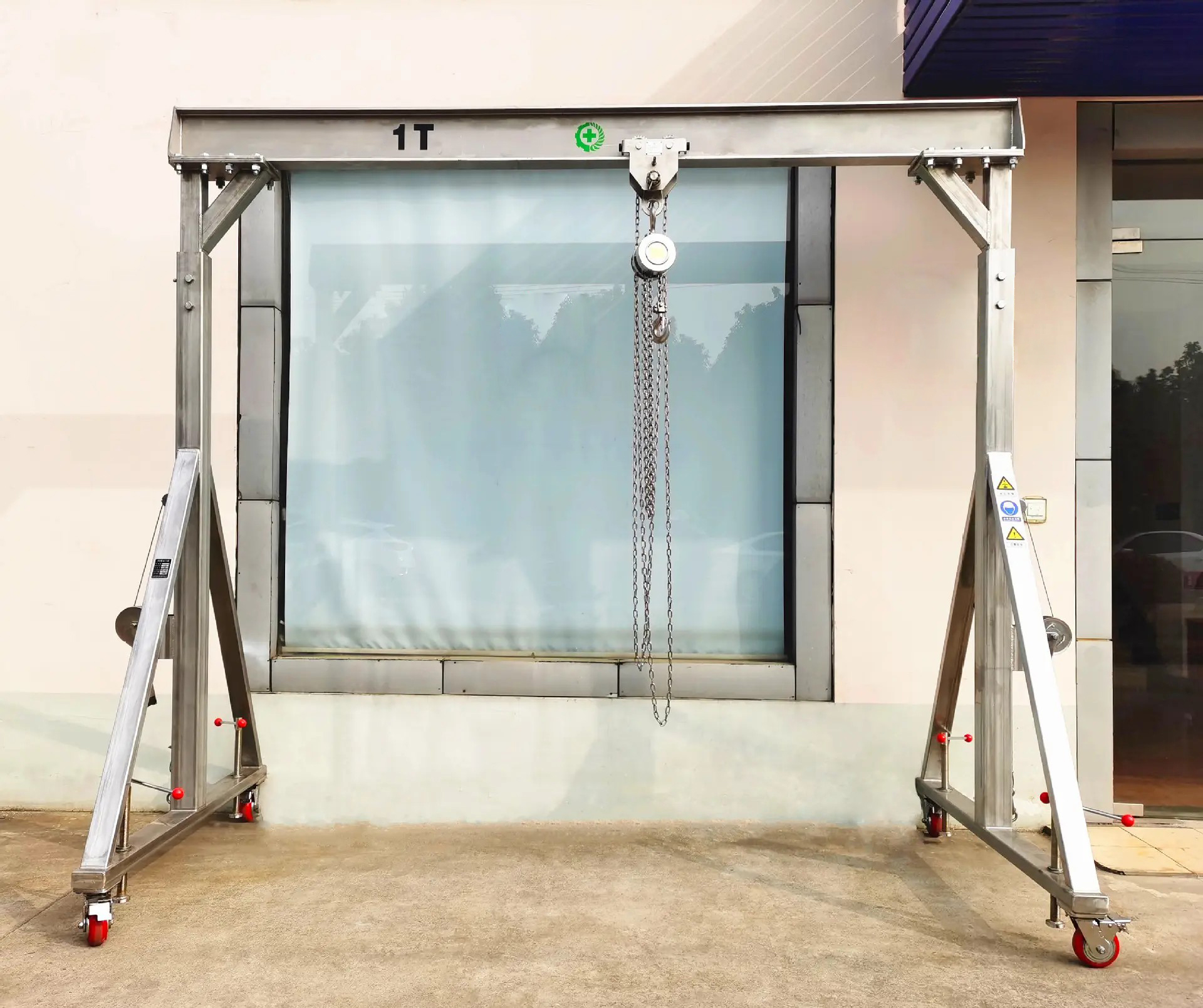

Simple portable aluminum gantry crane is a light lifting equipment with high-strength aluminum alloy as the main material. It combines the advantages of lightweight design and durability, and is particularly suitable for scenarios with high requirements for equipment portability and environmental adaptability. Its structure consists of two adjustable height columns, a top beam and a universal wheel base with locking function. The whole is connected by modular bolts and can be assembled within 30 minutes. The beam is equipped with a lightweight rail system, compatible with manual chain hoists or micro electric hoists, and provides a load range of 0.5-5 tons. It can not only meet the lifting of laboratory precision instruments, but also cope with medium-sized operations such as small machinery maintenance and exhibition layout.
Compared with traditional steel gantry, the core advantage of the portable aluminum simple gantry lies in material innovation: the aviation-grade 6061-T6 aluminum alloy frame reduces the overall weight by 40%-60% while ensuring structural strength, and can be pushed and shifted by a single person; the anodized surface not only has corrosion resistance, but also can withstand temperature changes from -20℃ to 80℃, suitable for special working conditions such as chemical plants and coastal areas. Its patented folding joint design can fold the equipment into a compact form of 0.8m×0.5m. With the anti-scratch bracket with rubber edging, it can adapt to the bumps of truck transportation and can also be directly stored on standard shelves.
Portable aluminum gantry crane for different occasions can be customized according to needs: the medical version is equipped with sterile coating and silent pulleys, suitable for operating room equipment scheduling; the outdoor engineering version is equipped with windproof anchors and UV protection layers, which can be temporarily built on construction sites; there are also smart iterative models with integrated Bluetooth load control system, which monitors load distribution and frame stress in real time through mobile phone APP, significantly improving operation safety. These features make it a cost-effective solution for modern intelligent manufacturing and logistics warehousing upgrades.
Depending on your actual use, there are different gantry cranes for customers to choose from. We have an experienced team of crane engineers. We design the right gantry crane system for you, and provide a full range of after-sales services to enable your crane to operate quickly, stably and reliably.
| Capacity | Ton | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Span | Meter | 3-6m (Customized) | 3-6m (Customized) | 3-6m (Customized) | 3-6m (Customized) | 3-6m (Customized) | 3-6m (Customized) |
| Lifting Height | Meter | 3-9m (Customized) | 3-9m (Customized) | 3-9m (Customized) | 3-9m (Customized) | 3-9m (Customized) | 3-9m (Customized) |
| Wheel | 4 sets (or Customized) | 4 sets (or Customized) | 4 sets (or Customized) | 4 sets (or Customized) | 4 sets (or Customized) | 4 sets (or Customized) | |
| Lifting equipment | Manual/Electric Chain hoist/Wire ripe hoist | Manual/Electric Chain hoist/Wire ripe hoist | Manual/Electric Chain hoist/Wire ripe hoist | Manual/Electric Chain hoist/Wire ripe hoist | Manual/Electric Chain hoist/Wire ripe hoist | Manual/Electric Chain hoist/Wire ripe hoist | |
| Power | 380V 50HZ 3P or customized | 380V 50HZ 3P or customized | 380V 50HZ 3P or customized | 380V 50HZ 3P or customized | 380V 50HZ 3P or customized | 380V 50HZ 3P or customized |
Simple portable aluminum gantry crane demonstrates significant advantages. its unique material properties and innovative design, as highlighted below:
1. Lightweight and high portability
Using aviation-grade aluminum alloy (such as 6061-T6) with a density of only 1/3 of steel, the overall weight is 40%-60% less than traditional steel equipment, and can be pushed or disassembled by one person, suitable for scenes such as construction sites and warehouses with frequent transfers.

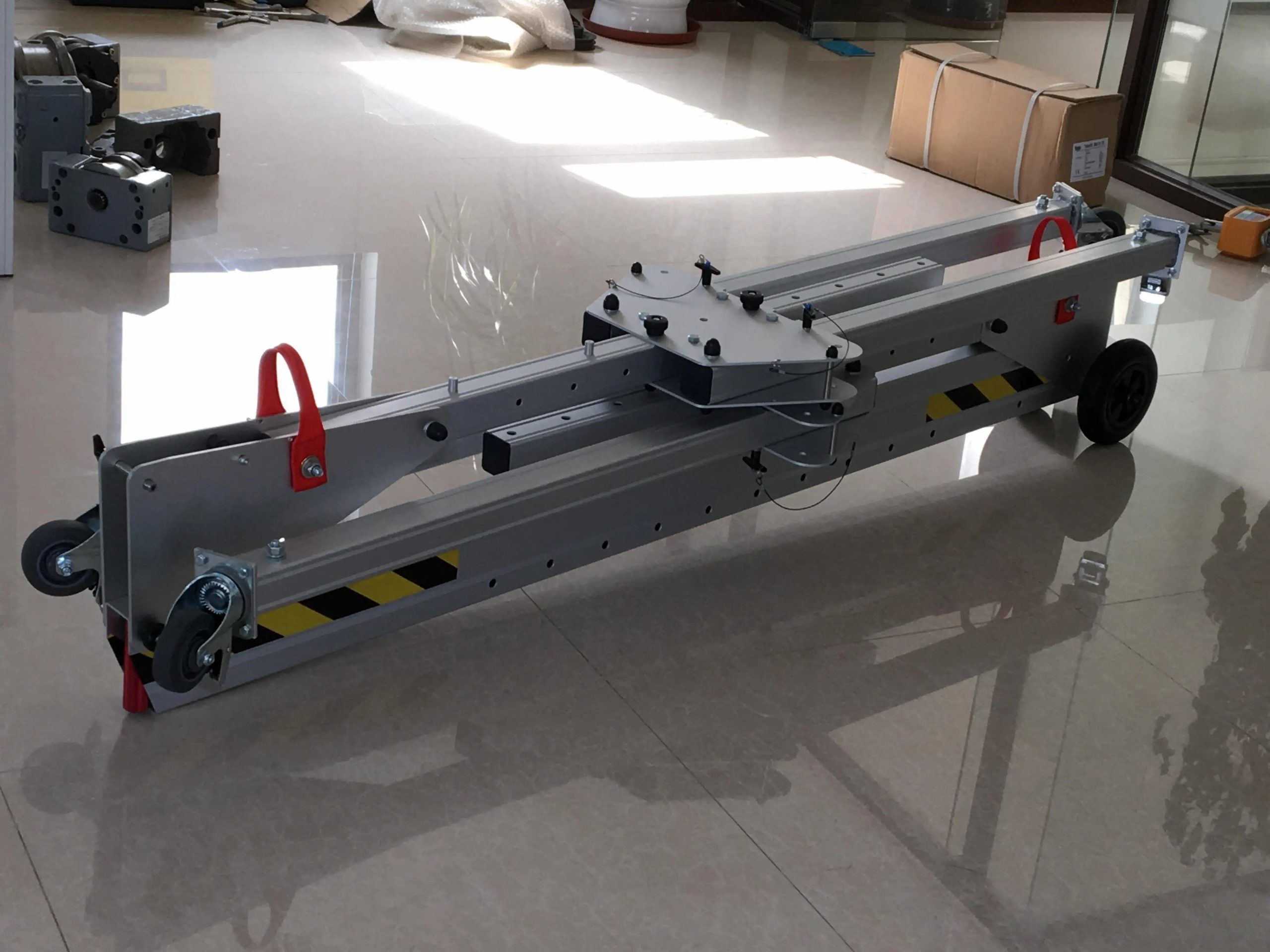

The folding design can fold the equipment into a compact form of 0.8m×0.5m, and with rubber-bound brackets, it is convenient for truck transportation and standard shelf storage.
2. High strength and durability
Through profile section optimization and heat treatment process, the load capacity covers 0.3-10 tons, and the crossbeam adopts a triangular reinforcement structure, and the anti-overturning coefficient is 1.5 times the industry standard.
The anodized surface treatment forms a dense oxide layer, which is resistant to salt spray, moisture and chemical corrosion, and the service life is extended to 2-3 times that of steel equipment.
3. Flexible adaptation to multiple scenarios

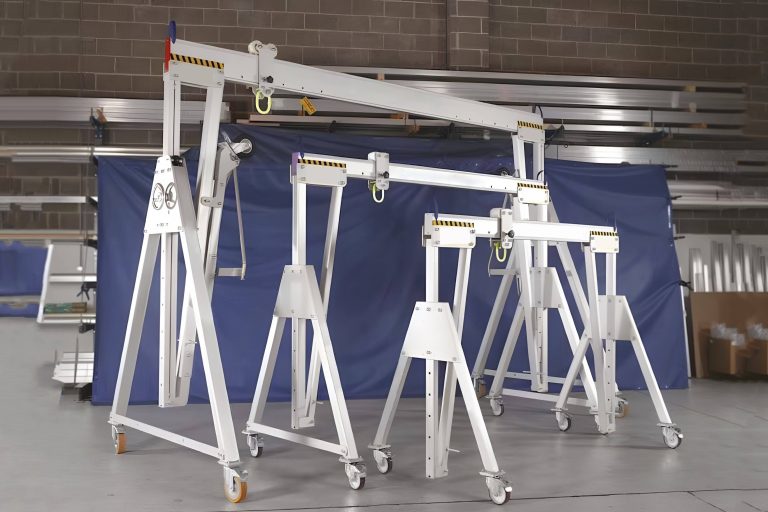

The height and span adjustable design (such as bolt-type connection) supports rapid adaptation from low workshops to outdoor construction sites, and is compatible with a variety of lifting equipment such as manual/electric hoists and vacuum suction cups.
The derivative models include medical sterile coating models, outdoor windproof anchor models, etc., to meet the differentiated needs of laboratory precision lifting and heavy-duty operations on construction sites.
4. Efficient deployment and convenient maintenance

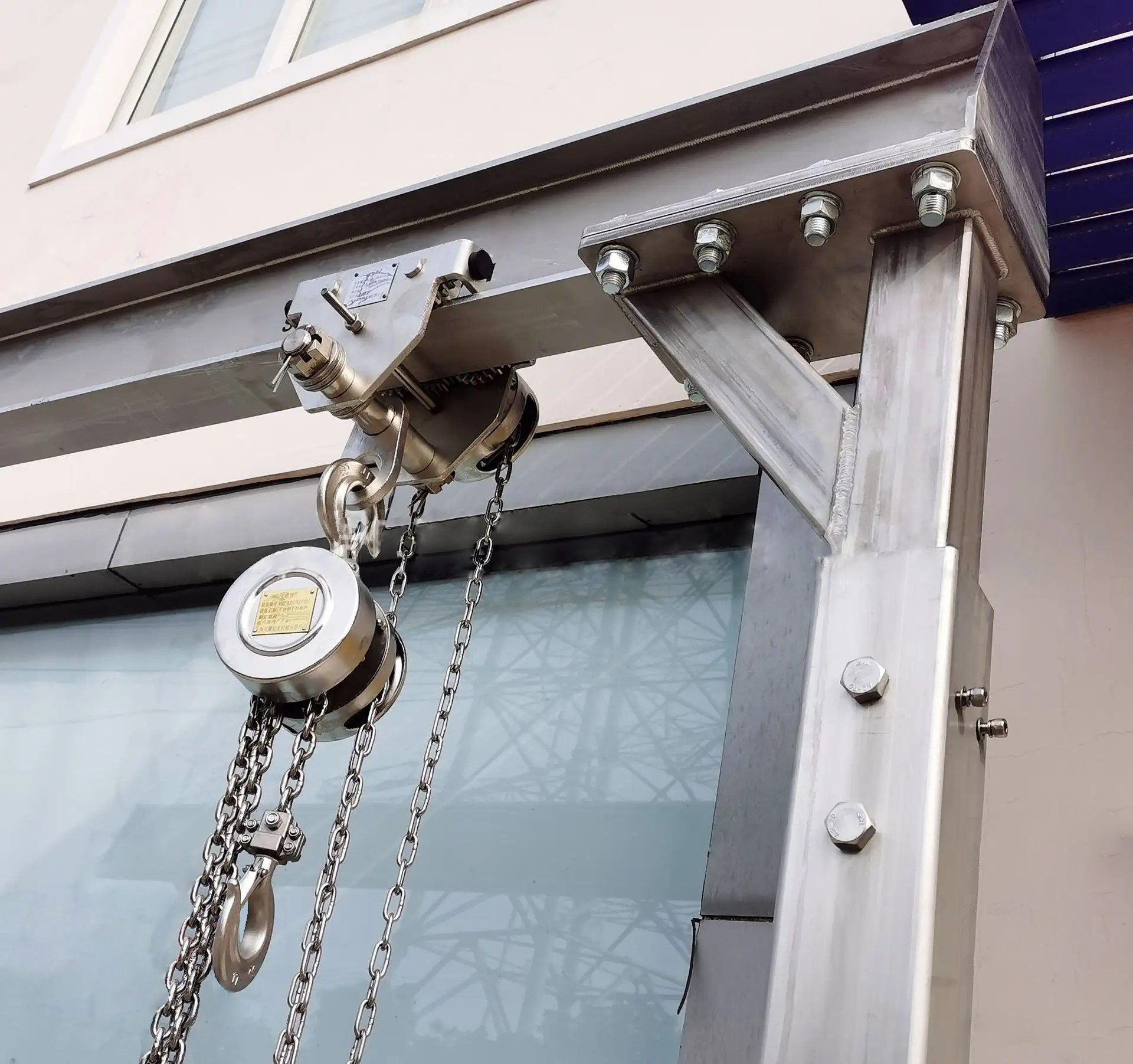

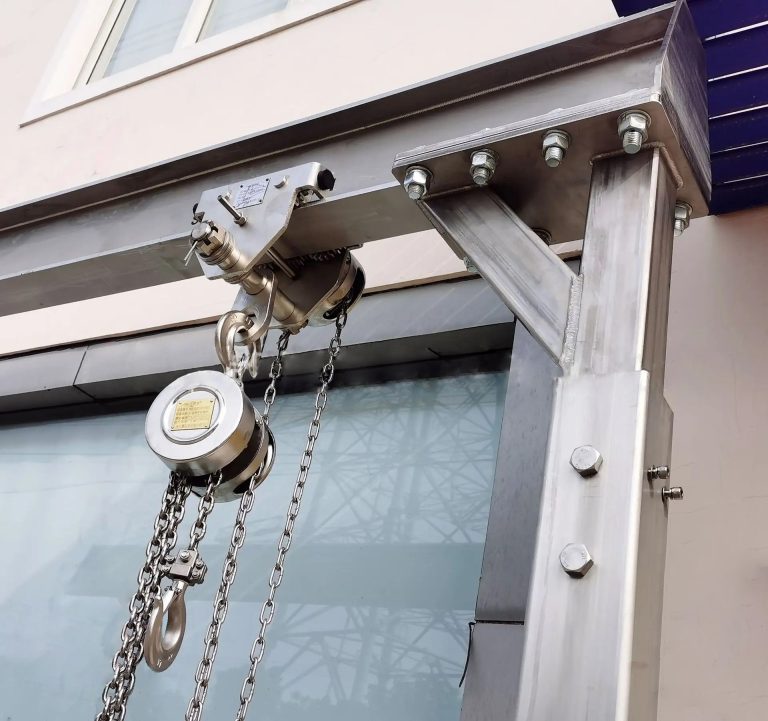

The modular bolt connection structure supports assembly within 30 minutes, and two workers can operate independently.
The paint-free surface and self-lubricating bearing design reduce annual maintenance costs by more than 60%, and the recovery residual value rate can reach 45%.
5. Safety protection design
Equipped with overload protection device and limit switch, it automatically stops when overloaded.
The mobile wheel group has a brake function, supports 5cm/s micro adjustment, and the ground slope adaptability reaches 3°.
It is our pleasure to work with you to find the right solution for your problem, no matter how complex or unique. Our professional technical team will build you a custom crane that has everything you need to effectively lift materials within your facility.
If you require custom options, let us know and we will work with you to build a factory overhead crane that meets your needs.
